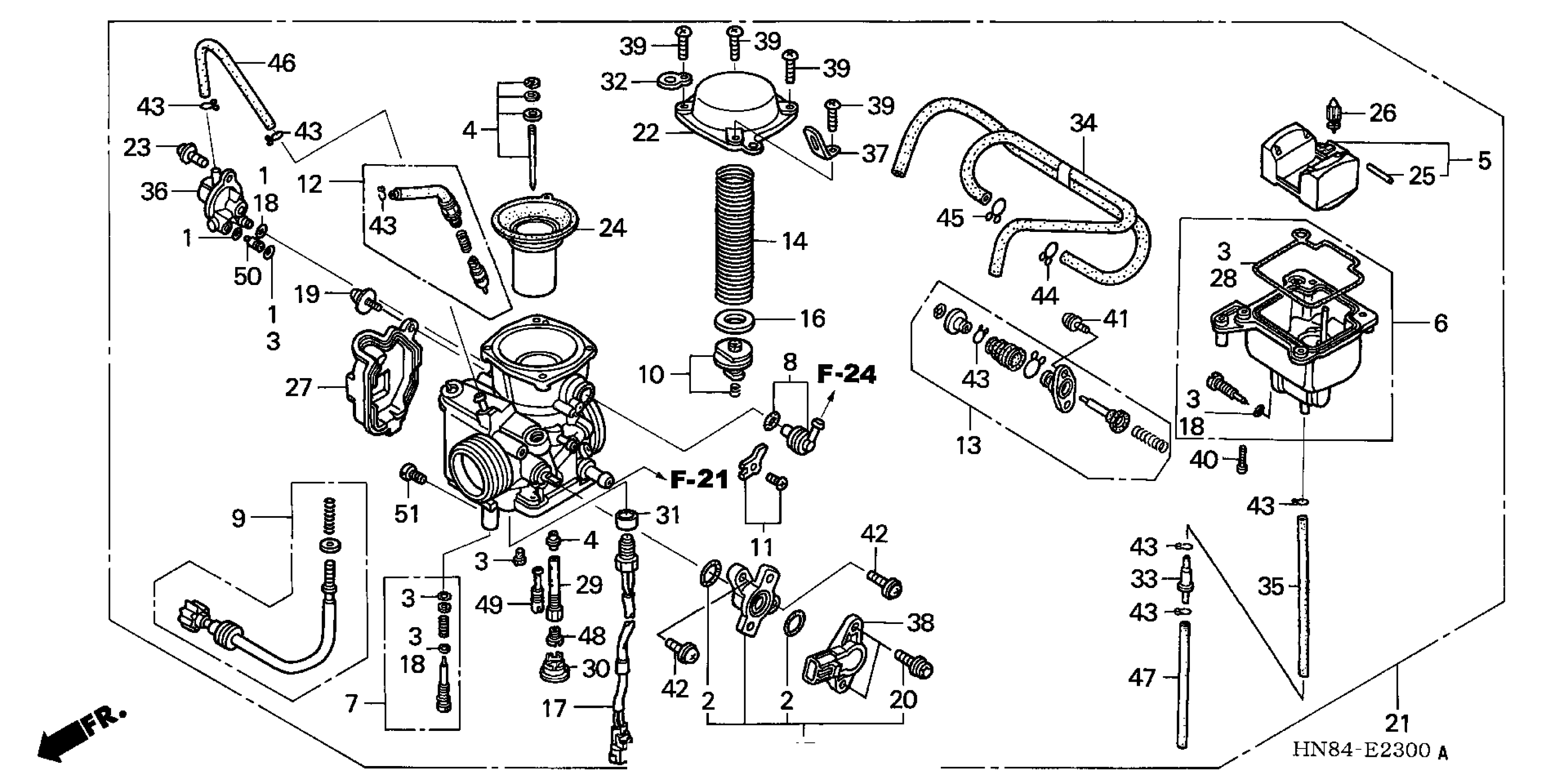

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$18.02

1

GASKET SET C

16041-MZ5-600

$18.02

2

GASKET SET

16010-HN2-003

$6.19

3

GASKET SET

16010-HN8-003

$28.94

4

NEEDLE SET, JET

16012-HN8-003

$41.52

5

FLOAT SET

16013-HN8-003

$39.34

6

CHAMBER SET, FLOAT

16015-HN8-003

$42.57

7

SCREW SET

16016-HN8-013

Unavailable

8

JOINT SET

16026-MR1-004

$41.04

9

SCREW SET

16028-HN8-003

Unavailable

10

PLATE SET, VALVE

16037-HN2-003

$19.18

11

PLATE SET, STAY

16038-HN8-003

$7.00

12

VALVE, STARTER

16046-HN8-003

$47.15

13

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$87.67

13

PUMP SET

16048-HN7-003

$87.67

14

SPRING, COMPRESSION COIL

16050-HN8-003

Unavailable

15

SPACER SET, THROTTLE SENSOR

16060-HN8-003

Unavailable

16

PLATE, SPRING SETTING

16066-HN8-003

Unavailable

17

HEATER ASSY.

16070-HN0-A01

Unavailable

18

O-RING (1.3X4.3)

16076-ND5-004

$2.56

19

SCREW-WASHER

16080-HC0-003

$4.15

20

SCREW, TORX (5X16)

16080-MT7-000

$3.34

21

CARBURETOR ASSY This part replaces 16100-HN8-013.

16100-HN8-023

$617.16

22

TOP

16107-HN8-003

Unavailable

23

SCREW

16108-MW0-750

$2.51

24

PISTON, VACUUM

16111-HN8-003

$97.00

25

PIN, ARM

16152-HN8-003

$4.08

26

VALVE, FLOAT This part replaces 16155-HN2-000.

16155-HN7-003

$28.87

26

VALVE, FLOAT

16155-HN7-003

$28.87

27

COVER, BODY

16157-HN8-003

$27.51

28

GASKET, FLOAT CHAMBER

16163-MEA-671

$23.17

29

HOLDER, NEEDLE JET

16165-HN8-003

Unavailable

30

HOLDER, JET

16168-HC4-003

$12.24

31

COLLAR, SETTING

16172-HN0-A00

Unavailable

32

BINDER

16179-HA0-003

$12.85

33

VALVE, ONE-WAY

16180-HC4-003

$18.02

34

TUBE, AIR VENT

16196-HN8-003

Unavailable

35

TUBE

16198-HN8-003

Unavailable

36

VALVE ASSY., AIR CUT

16510-MBW-601

$123.89

37

CLIP, PLATE

17191-MN5-740

Unavailable

38

SENSOR ASSY,THROT This part replaces 37890-HN2-006.

37890-H09-J02

$141.11

39

SCREW, PAN (4X12)

93500-04012-0H

$1.49

39

SCREW, PAN (4X12) This part replaces 93500-04012-1H.

93500-04012-0H

$1.49

40

SCREW, PAN (4X14)

93500-04014-0H

$1.49

40

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

41

SCREW-WASHER (4X12)

93892-04012-08

$1.49

41

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

42

SCREW-WASHER (5X14)

93892-05014-08

$1.49

42

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

43

CLIP, TUBE (B7)

95002-02079

$1.49

44

CLIP, TUBE (B1 10)

95002-02109

$1.49

45

CLIP, TUBE (B6.5)

95002-02659

$1.49

46

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$9.67

47

BULK HOSE, VACUUM (3.5X1000) (3.5X180)

95005-35001-50M

$13.72

48

JET, MAIN (#152)

99101-HN8-1520

$7.93

48

JET, MAIN (#148) | (Optional). This part replaces 99101-393-1480.

99102-MCG-1480

Unavailable

49

JET, SLOW (#50)

99104-KC1-0500

$16.44

50

JET, SLOW AIR (#100)

99108-MW0-1002

$5.39

51

JET, MAIN (#105)

99101-ZV5-1050

$5.79

51

JET, MAIN (#105) This part replaces 99112-HN8-1050.

99101-ZV5-1050

$5.79
