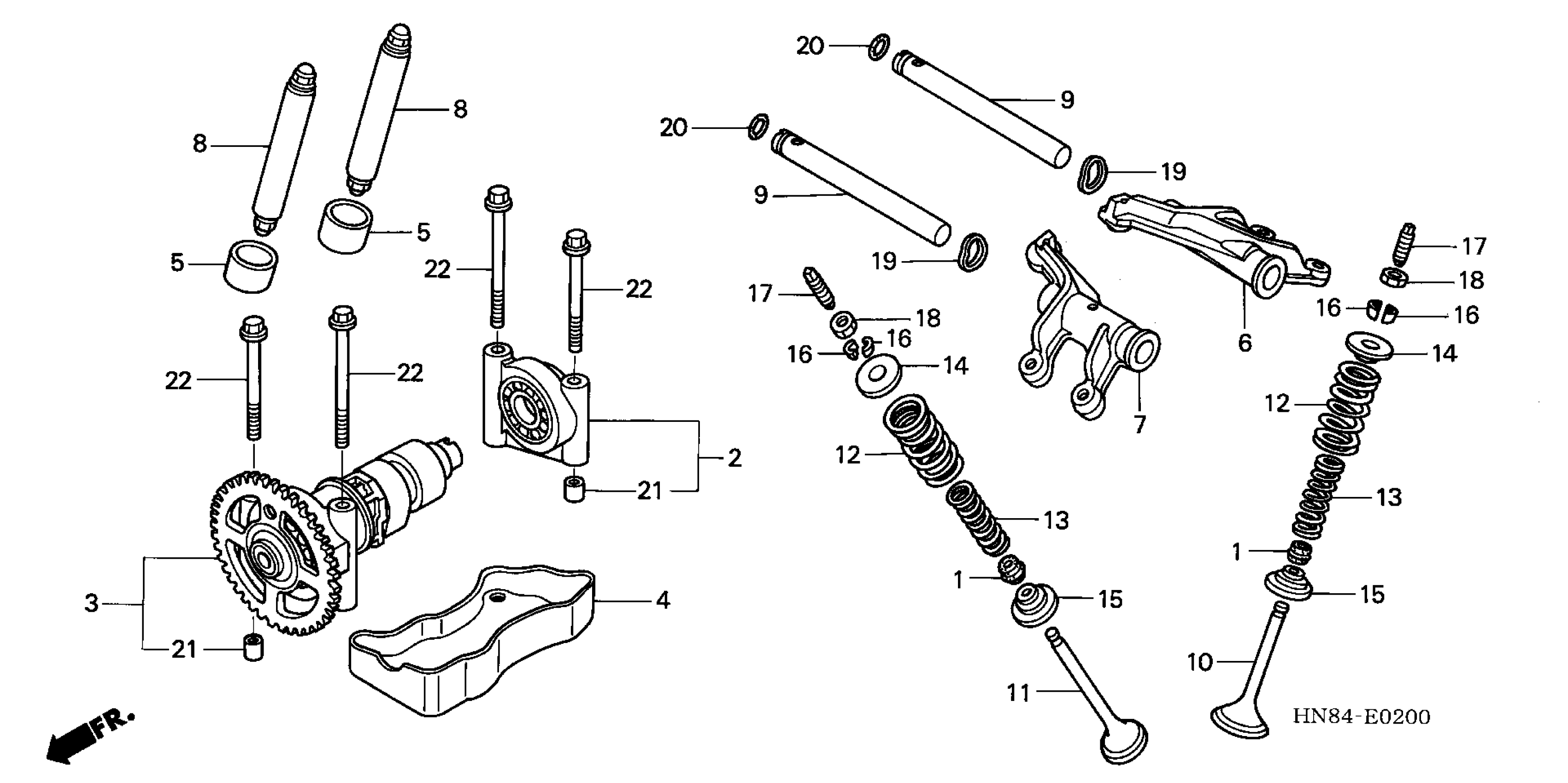

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.81

HOLDER B, CAMSHAFT

12212-HN8-P00

$43.94

CAMSHAFT

14100-HN8-P00

$290.84

PLATE, CAM HOLDER

14104-HN8-000

$9.11

FOLLOWER, CAM

14421-HN8-000

$25.19

ARM, VALVE ROCKER IN This part replaces 14431-HN8-000.

14431-HL3-B50

$100.75

ARM, VALVE ROCKER EX This part replaces 14432-HN8-000.

14432-HL3-B50

$106.87

ROD, PUSH

14440-HN2-000

$20.60

SHAFT, ROCKER ARM

14451-HN2-000

$21.43

VALVE, IN.

14711-HN8-000

$45.53

VALVE, EX.

14721-HN8-000

$59.50

SPRING, VALVE (OUTER)

14751-KCY-670

$10.96

SPRING, VALVE (INNER)

14761-KG0-003

$6.41

RETAINER, VALVE SPRING

14771-107-020

$7.99

SEAT, VALVE SPRING

14775-HN2-000

$6.60

COTTER, VALVE

14781-HA0-770

$3.45

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

WASHER, WAVE (12MM)

90402-428-000

$2.20

O-RING (1.5X9.5)

91306-MG3-000

$2.33

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.33

PIN, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X65)

95701-06065-08

$2.19
