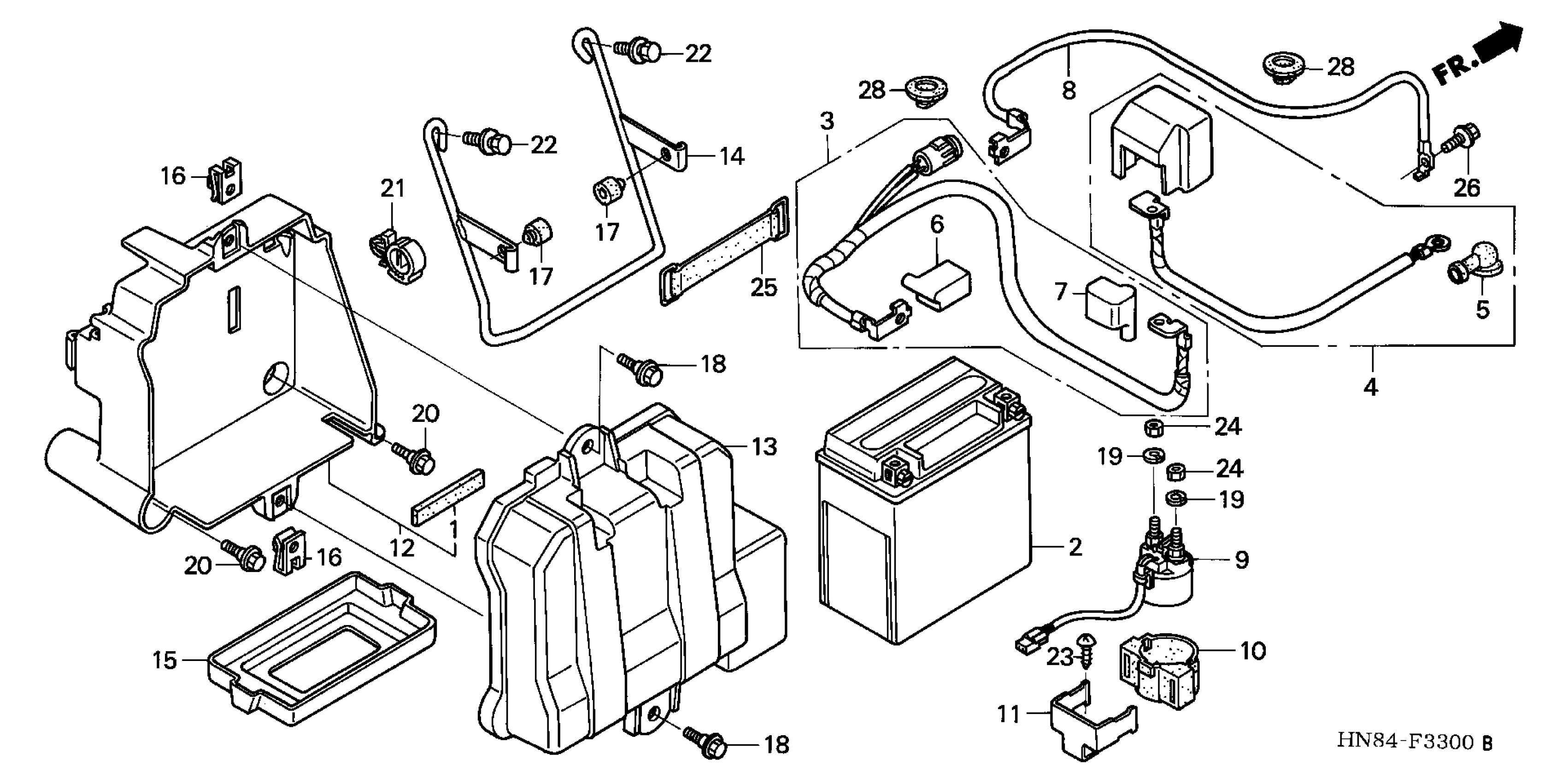

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 BATTERY Diagram

#

Description
Price

1

RUBBER, TANK SPACER

17511-HM5-670

$10.08

2

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

2

BATTERY (YTX14-BS) (YUASA) (MSDS)

31500-HC4-726AH

Unavailable

3

CABLE, BATTERY RELAY (USE ONLY FOR STANDARD BATTERY YTX14-BS)

32401-HN8-000

$25.52

4

CABLE, STARTER MOTOR

32405-HN8-000

$35.39

5

COVER, TERMINAL

32411-473-000

$5.63

6

COVER, BATTERY TERMINAL

32412-HN8-300

$5.94

7

COVER, MAGNETIC SWITCH TERMINAL

32416-HN8-300

$1.30

8

CABLE, BATTERY GROUND (USE ONLY FOR STANDARD BATTERY YTX14-BS)

32601-HN8-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-HN8-003

$51.64

10

RUBBER, MAGNETIC SHOCK

35856-425-000

$9.79

11

STAY, STARTER MAGNETIC

50326-HC4-000

$7.73

12

BOX, BATTERY

50400-HN8-000

$48.57

13

COVER, BATTERY

50403-HN8-000

$6.71

14

ROD, BATTERY BOX

50404-HN8-000

$31.16

15

TRAY, BATTERY

50405-HN8-000

$27.96

16

NUT, CLIP (6MM) (NA USE ALT:64529-MN5-000)

64529-KCH-780

Unavailable

17

RUBBER, SEAT CUSHION

77206-GF0-000

$5.07

18

BOLT, FLANGE (6X20)

90020-438-000

$3.12

19

WASHER, SPRING (6MM)

90052-ZA0-800

$0.99

20

BOLT, FLANGE (6MM)

90104-KAB-000

$2.71

21

CLIP, HARNESS

90684-ZA0-601

$2.80

22

BOLT-WASHER (8X20)

93404-08020-07

$1.75

23

SCREW, TAPPING (5X12)

93903-25220

$0.83

24

NUT, HEX. (6MM)

94002-06390-0S

$0.77

25

BAND F, BATTERY (155MM)

95012-17001

$6.72

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

28

RUBBER, SEAT STOPPER

77103-GK4-000

$4.16
