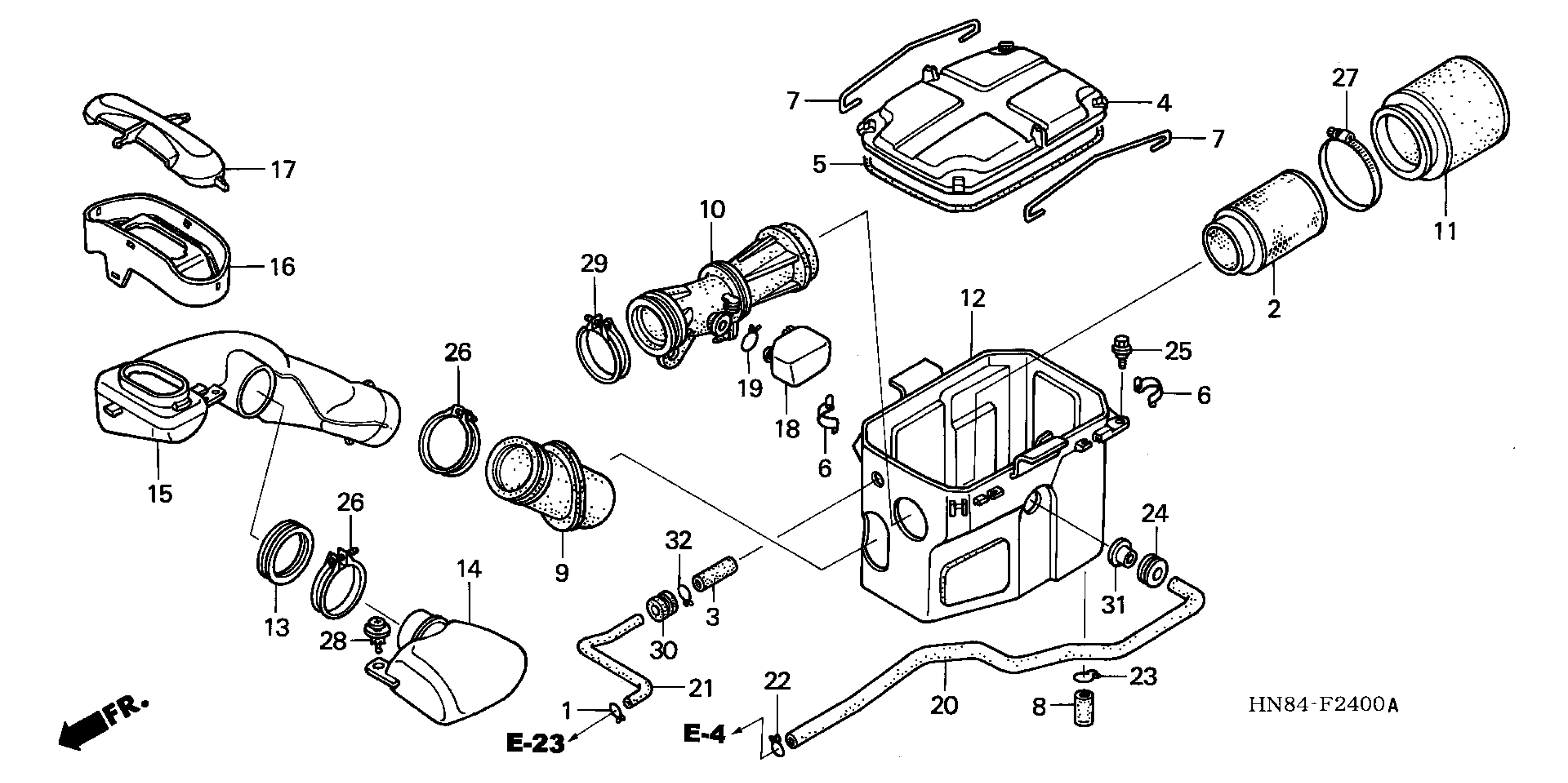

Honda TRX650FAA (05) FOURTRAX RINCON, USA, VIN# 1HFTE280-54000001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$4.78

2

BODY, AIR CLEANER

17211-HN8-000

$28.27

3

FILTER, SUB-AIR CLEANER

17213-HN2-000

$9.03

4

LID, AIR CLEANER HOUSING

17217-HN8-000

$26.68

5

SEAL, AIR CLEANER COVER

17219-HN8-000

$2.80

6

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

6

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.65

7

SPRING, AIR CLEANER HOUSING LID

17223-HN8-000

$3.95

8

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$9.45

9

SEAL, AIR CLEANER DUCT

17252-HN8-000

$10.42

10

TUBE, AIR CLEANER CONNECTING

17253-HN8-000

Unavailable

11

ELEMENT, AIR CLEANER

17254-HN1-000

$20.62

12

CASE ASSY., AIR CLEANER

17254-HN8-000

$84.80

13

SEAL, SNORKEL

17257-HN8-000

$32.51

14

DUCT, RESONATOR

17258-HN8-000

$25.22

15

DUCT, SNORKEL This part replaces 17259-HN8-A00.

17259-HN8-000

$31.57

15

DUCT, SNORKEL

17259-HN8-000

$31.57

16

COVER A, SNORKEL

17261-HN8-A00

$13.69

17

COVER B, SNORKEL

17262-HN8-A00

$12.53

18

RESONATOR

17264-HN8-000

$29.25

19

CLIP, BREATHER TUBE

17316-611-000

$8.28

20

TUBE, BREATHER This part replaces 17366-HN8-000.

17366-HN8-A60

$10.05

21

TUBE, AIR CLEANER

17367-HN8-000

Unavailable

22

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

23

CLIP, AIR HOSE (21.5)

18532-634-670

$7.39

24

GROMMET, RR. FENDER

80102-KFJ-900

$4.61

25

BOLT, FLANGE (6MM)

90111-162-000

$2.62

26

BAND, AIR CLEANER CONNECTING TUBE (68)

90668-HN2-830

$29.10

27

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.15

28

CLIP, LID

90658-HN5-671

$2.03

29

BAND, AIR CONNECTING TUBE (70)

90670-HN8-000

$6.36

30

RUBBER, TANK CUSHION

90851-898-000

$4.07

31

COLLAR, STEERING NOZZLE

91565-HW1-670

Unavailable

32

CLIP, TUBE (B12.5)

95002-02130

$1.04
