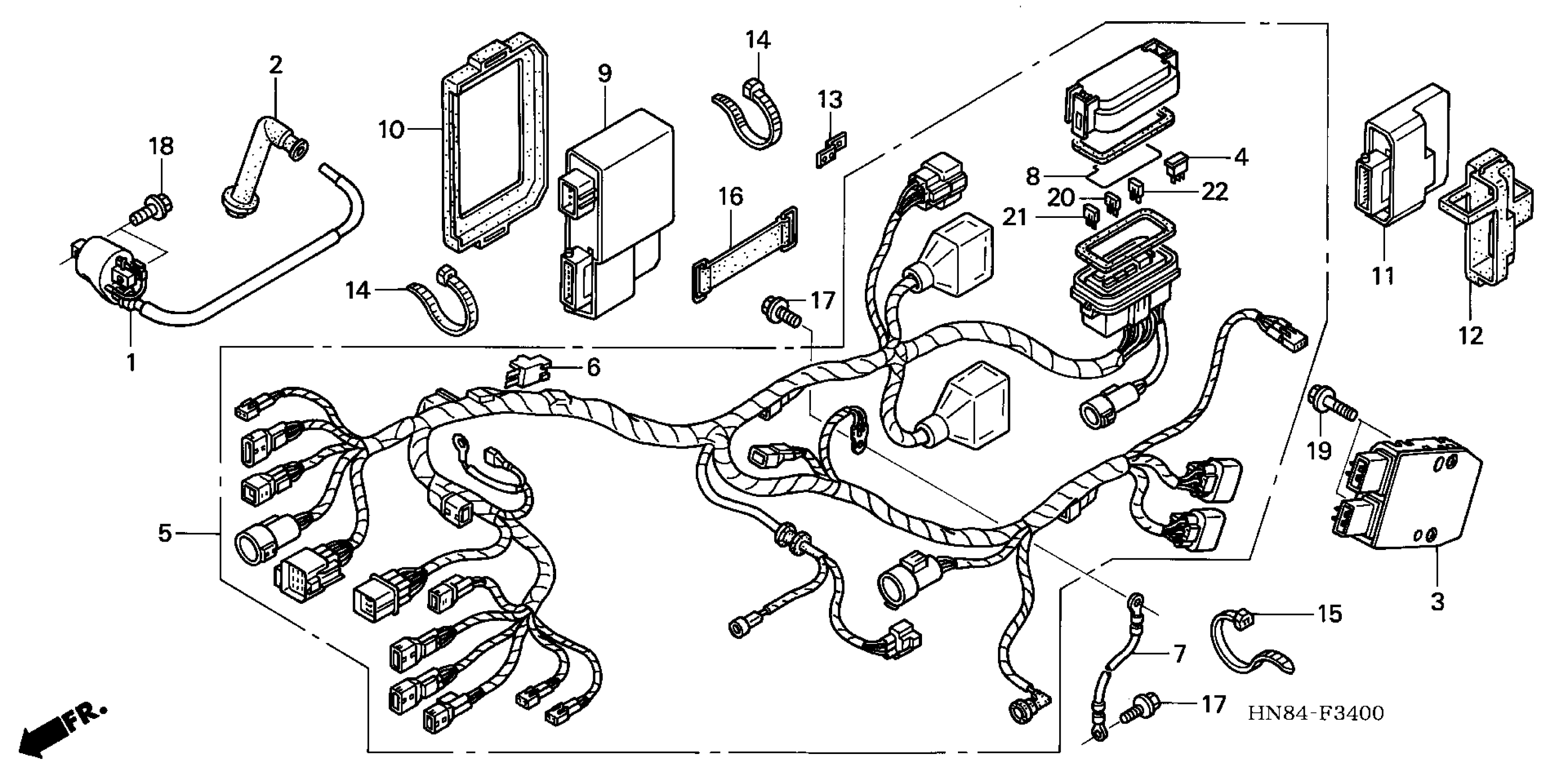

Honda TRX650FAA (04) FOURTRAX RINCON, USA, VIN# 478TE280-4A100001 TO 478TE280-4A199999 WIRE HARNESS Diagram

COIL ASSY., IGNITION

30500-HN8-003

$64.05

CAP ASSY., NOISE SUPPRESSOR

30700-HN8-003

$41.85

RECTIFIER ASSY., REGULATOR This part replaces 31600-HN8-003.

31600-HP0-A01

$127.69

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-HN8-000

$1,077.77

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

CABLE, GROUND

32603-HN8-000

$31.92

LABEL, FUSE

38215-HN8-300

$1.49

CONTROL UNIT, AT

38910-HN8-A01

Unavailable

CUSHION, ENGINE CONTROL UNIT

38911-HN8-000

Unavailable

I/O UNIT, CHANGE

38920-HN8-003

Unavailable

CUSHION, I/O UNIT

38921-HN8-000

Unavailable

STAY A, CONNECTOR

50327-HN5-670

$3.90

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
