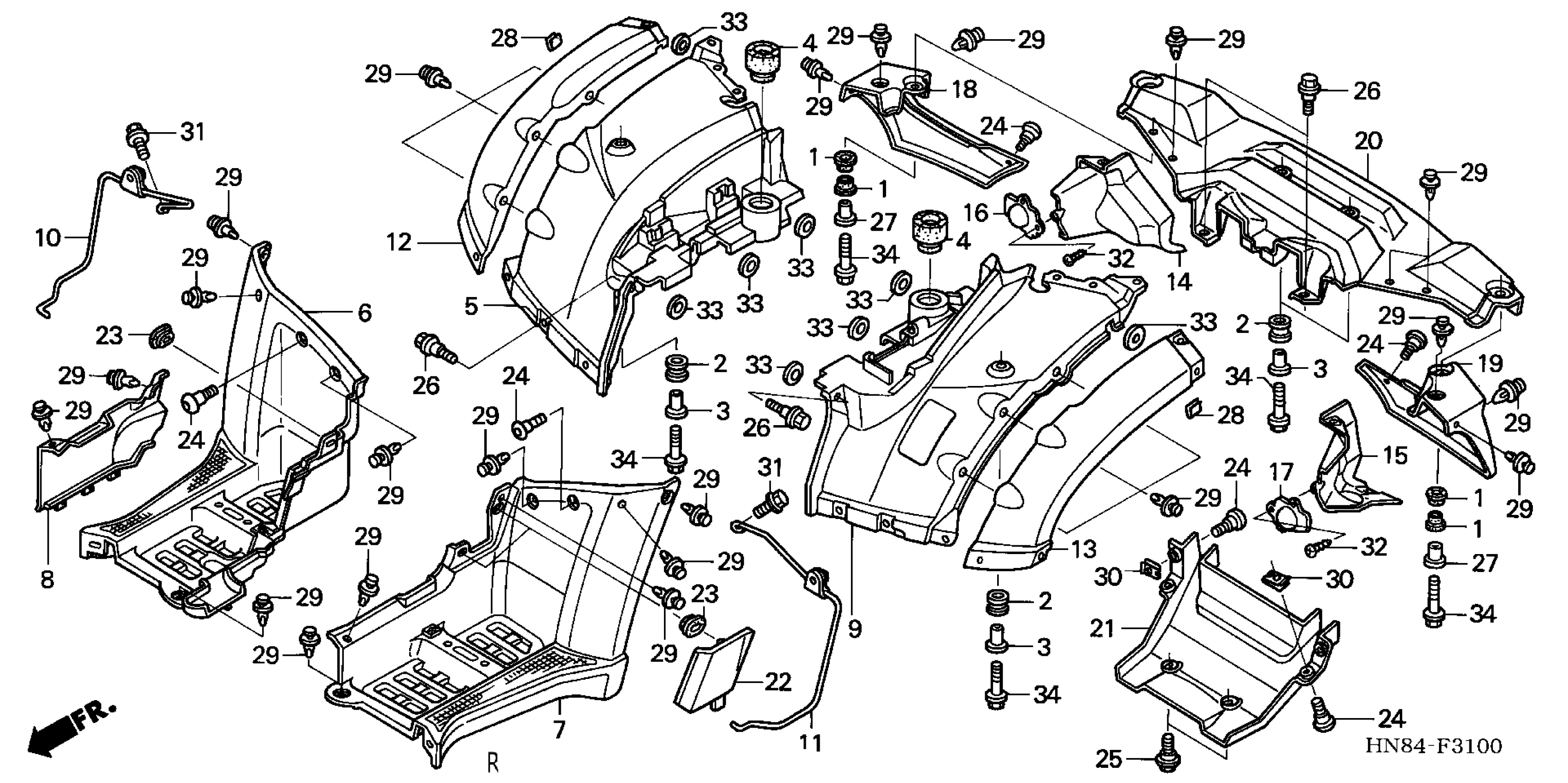

Honda TRX650FAA (04) FOURTRAX RINCON, USA, VIN# 478TE280-4A100001 TO 478TE280-4A199999 REAR FENDER Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

Unavailable

2

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

3

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

4

CUSHION, SEAT MOUNTING

77207-HA0-000

$6.81

5

FENDER, R. RR. *G152* (ADVENTURE GREEN)

80100-HN8-000ZA

$136.37

5

FENDER, R. RR. *R232* (PATRIOT RED)

80100-HN8-000ZB

$128.10

5

FENDER, R. RR. *Y151R* (STARBURST YELLOW) (NOT AVAILABLE)

80100-HN8-000ZC

Unavailable

6

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HN8-000ZA

$212.74

7

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HN8-000ZA

$187.45

8

COVER, R. ENGINE SUB *NH1* (BLACK)

80123-HN8-000ZA

$13.90

9

FENDER, L. RR. *G152* (ADVENTURE GREEN)

80200-HN8-000ZA

$136.34

9

FENDER, L. RR. *R232* (PATRIOT RED)

80200-HN8-000ZB

$128.12

9

FENDER, L. RR. *Y151R* (STARBURST YELLOW)

80200-HN8-000ZC

$125.37

10

STAY, R. RR. FENDER

80217-HN8-000

$10.91

11

STAY, L. RR. FENDER

80218-HN8-000

$10.91

12

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HN8-000ZA

$16.96

13

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HN8-000ZA

$16.72

14

PROTECTOR, R. TAILLIGHT COVER

80235-HN8-000

$46.59

15

PROTECTOR, L. TAILLIGHT COVER

80236-HN8-000

$46.59

16

CAP, R. TAILLIGHT COVER

80240-HN8-000

$7.65

17

CAP, L. TAILLIGHT COVER

80241-HN8-000

$7.65

18

SPLASH GUARD, R. RR. *NH1* (BLACK)

80255-HN8-000ZA

$14.23

19

SPLASH GUARD, L. RR. *NH1* (BLACK)

80260-HN8-000ZA

$14.23

20

SPLASH GUARD ASSY., RR. *NH1* (BLACK)

80270-HN8-A00ZA

$187.14

21

PROTECTOR, MUFFLER *NH1* (BLACK)

81320-HN8-000ZA

$15.37

22

LID, OIL *NH1* (BLACK)

83130-HN8-000ZA

$6.44

23

GROMMET, SIDE COVER

83551-MA6-000

$3.19

24

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.19

25

BOLT, FLANGE (6MM)

90111-187-000

$7.39

26

BOLT, FLANGE (6MM)

90111-197-890

$3.40

27

COLLAR (6.3X13.5)

90503-KE1-000

$4.28

28

U-CLIP

90651-HN8-000

$2.66

29

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

30

NUT, CLIP (6MM)

90675-SA5-003

$5.26

31

BOLT-WASHER (6X14)

93404-06014-07

$0.85

32

SCREW, TAPPING (4X12)

93903-24320

$0.90

33

WASHER, PLAIN (8MM)

94103-08800

$0.87

34

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
