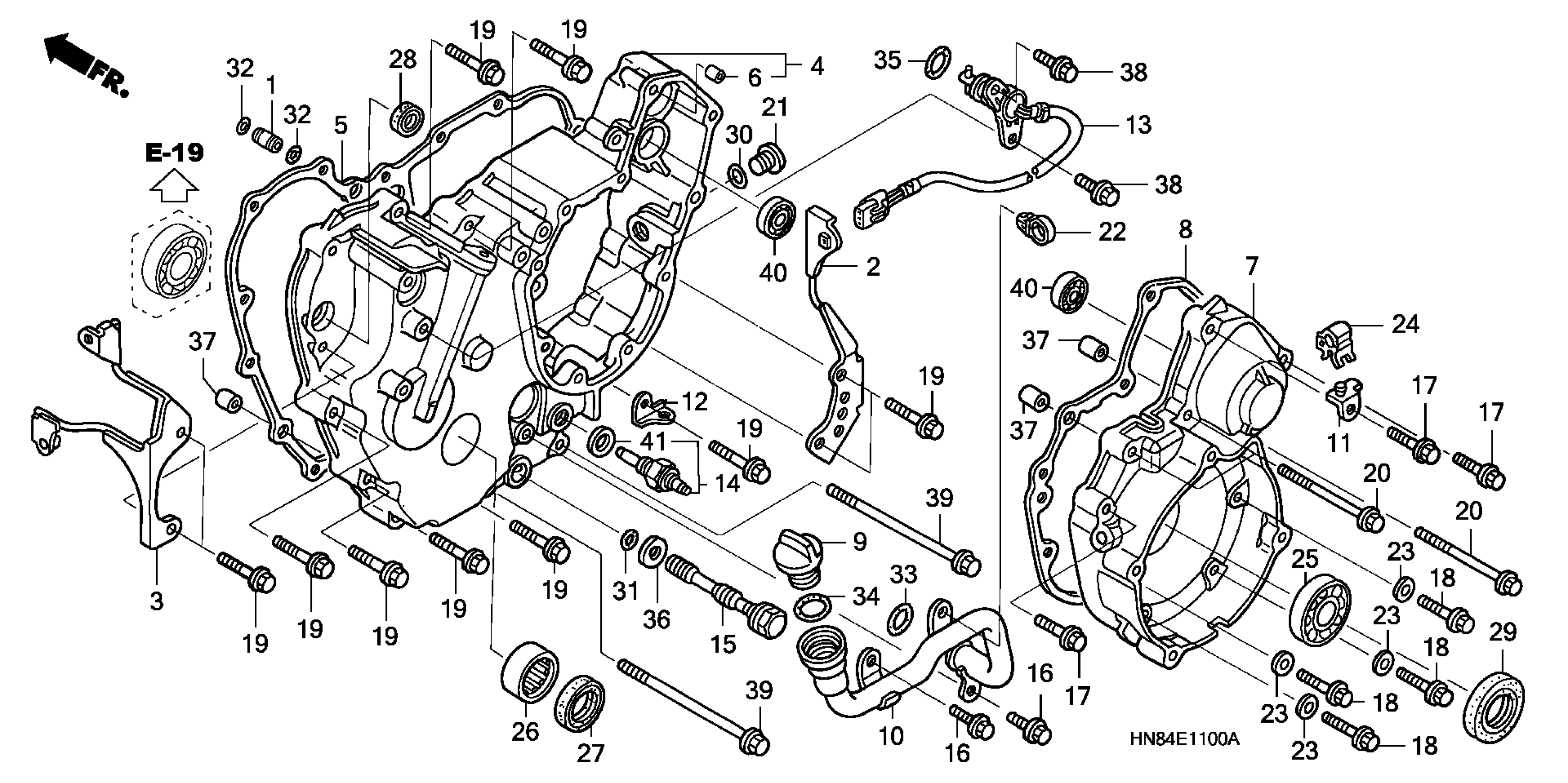

Honda TRX650FAA (04) FOURTRAX RINCON, USA, VIN# 478TE280-4A100001 TO 478TE280-4A199999 REAR CRANKCASE COVER Diagram

#

Description
Price

1

PIN, OIL GUIDE (8MM) This part replaces 11145-HN8-000.

11145-HN8-010

$8.20

1

PIN, OIL GUIDE (8MM)

11145-HN8-010

$8.20

2

STAY, R. RR. ENGINE SIDE COVER

11312-HN8-000

$17.16

3

STAY, L. RR. ENGINE SIDE COVER

11322-HN8-A60

$18.87

3

STAY, L. RR. ENGINE SIDE COVER This part replaces 11322-HN8-000.

11322-HN8-A60

$18.87

4

COVER, RR.

11340-HN8-000

Unavailable

5

GASKET, RR. COVER

11345-HN8-000

$19.92

6

ORIFICE (1.0MM)

11349-HN8-300

$3.88

7

COVER, ALTERNATOR

11350-HN8-000

$187.42

8

GASKET, ALTERNATOR COVER

11396-HN8-000

$15.21

9

CAP, OIL FILLER This part replaces 15655-HN8-000.

15655-HN8-010

$9.34

9

CAP, OIL FILLER

15655-HN8-010

$9.34

10

PIPE, OIL FILLER

15660-HN8-000

$69.45

11

PLATE, CABLE

16230-HN8-000

$2.06

12

CLAMP, DRAIN TUBE

16235-HN8-000

Unavailable

13

SWITCH ASSY., CHANGE

35759-HN8-000

$76.01

14

SENSOR ASSY., THERMOSTAT OIL

37750-MCE-003

Unavailable

15

BOLT, DRAIN PLUG (12MM)

90002-HN8-000

$7.43

16

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.18

17

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

18

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.59

19

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

20

BOLT, FLANGE (6X90) (NSHF)

90004-GHB-810

$5.15

21

CAP (14MM)

90084-KY2-000

$14.34

22

CLIP, FUEL BREATHER TUBE

90115-HN8-000

$1.22

23

WASHER A, SEALING (6MM) This part replaces 90411-HN8-000.

90443-035-000

Unavailable

23

WASHER A, SEALING (6MM)

90443-035-000

Unavailable

24

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

25

BEARING, RADIAL BALL (6906)

91015-HN8-003

$11.81

26

BEARING, NEEDLE (25X37X17)

91021-HN8-003

$13.91

27

OIL SEAL (25X35X5)

91203-KCY-671

$6.63

28

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$2.90

29

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$10.90

30

O-RING (13.8X2.5)

91303-377-000

$3.18

31

O-RING (9X1.8)

91305-GE1-920

$1.64

32

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

33

O-RING (17X3.6)

91305-HN8-003

$2.14

34

O-RING (21.5X3.2)

91307-425-003

$2.55

35

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.03

35

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.03

36

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

37

PIN, DOWEL (8X14)

94301-08140

$2.04

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

39

BOLT, FLANGE (8X140)

95701-08140-00

$2.58

40

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56

41

WASHER, SEALING

90401-HA8-000

$3.55
