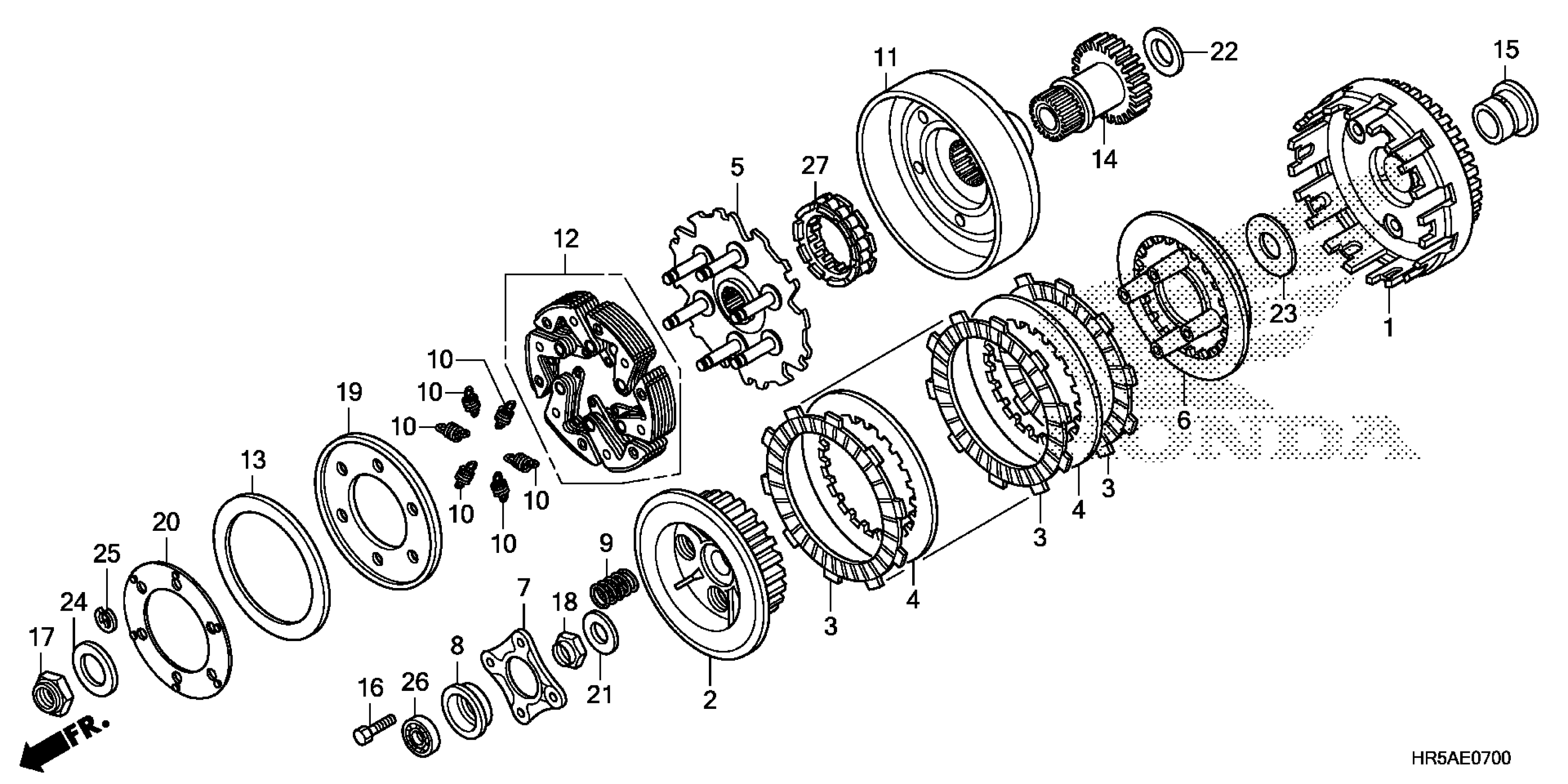

Honda TRX520FM62AC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE451-P4800001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22100-HP0-A00

$293.39

2

CENTER, CLUTCH

22121-HP0-A00

$82.01

3

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

3

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

4

PLATE, CLUTCH (1.4MM)

22321-HN0-670

$12.52

5

PLATE, DRIVE

22350-HR0-F00

$79.61

6

PLATE, CLUTCH PRESSURE

22351-HP0-A00

$15.95

7

PLATE, CLUTCH LIFTER

22366-HN0-670

$12.17

8

COLLAR, CLUTCH LIFTER

22367-HR0-E00

$5.90

9

SPRING, CLUTCH

22401-HR0-E00

$3.31

10

SPRING, CLUTCH

22451-HR0-F00

$2.92

11

CLUTCH OUTER

22500-HR0-F00

$63.04

12

WEIGHT SET, CLUTCH

22535-HP0-305

$86.87

13

SPRING, CONE DISK

22714-HR0-F00

$8.38

14

GEAR, DRIVE (29T)

23120-HP0-A00

$121.58

15

BUSH (22MM)

23213-HP0-A00

$14.20

16

BOLT, HEX. (6X32)

90002-HR0-E00

$1.80

17

NUT, LOCK (20MM)

90235-HM7-000

$6.22

18

NUT, LOCK (18MM)

90236-HN5-M00

$5.21

19

WASHER (66X124X1.0)

90406-HN2-A00

$12.85

19

WASHER (66X124X1.0) This part replaces 90406-HN2-000.

90406-HN2-A00

$12.85

20

WASHER (66X107X1.6)

90407-HN2-A00

$12.64

20

WASHER (66X107X1.6) This part replaces 90407-HN2-000.

90407-HN2-A00

$12.64

21

WASHER, SPECIAL (18MM)

90432-HP0-A00

$2.92

22

WASHER, THRUST (29X40X2)

90457-HN2-000

$4.75

23

WASHER, THRUST (22X45X0.8)

90458-HN0-670

$2.92

24

WASHER, THRUST (20MM)

90459-KB4-670

$4.19

25

CIRCLIP (7MM)

90605-HM8-000

$2.02

26

BEARING, RADIAL BALL (33.5X22X7)

91055-SK7-901

$19.10

27

CLUTCH, ONE-WAY

91101-HA0-004

$119.68
