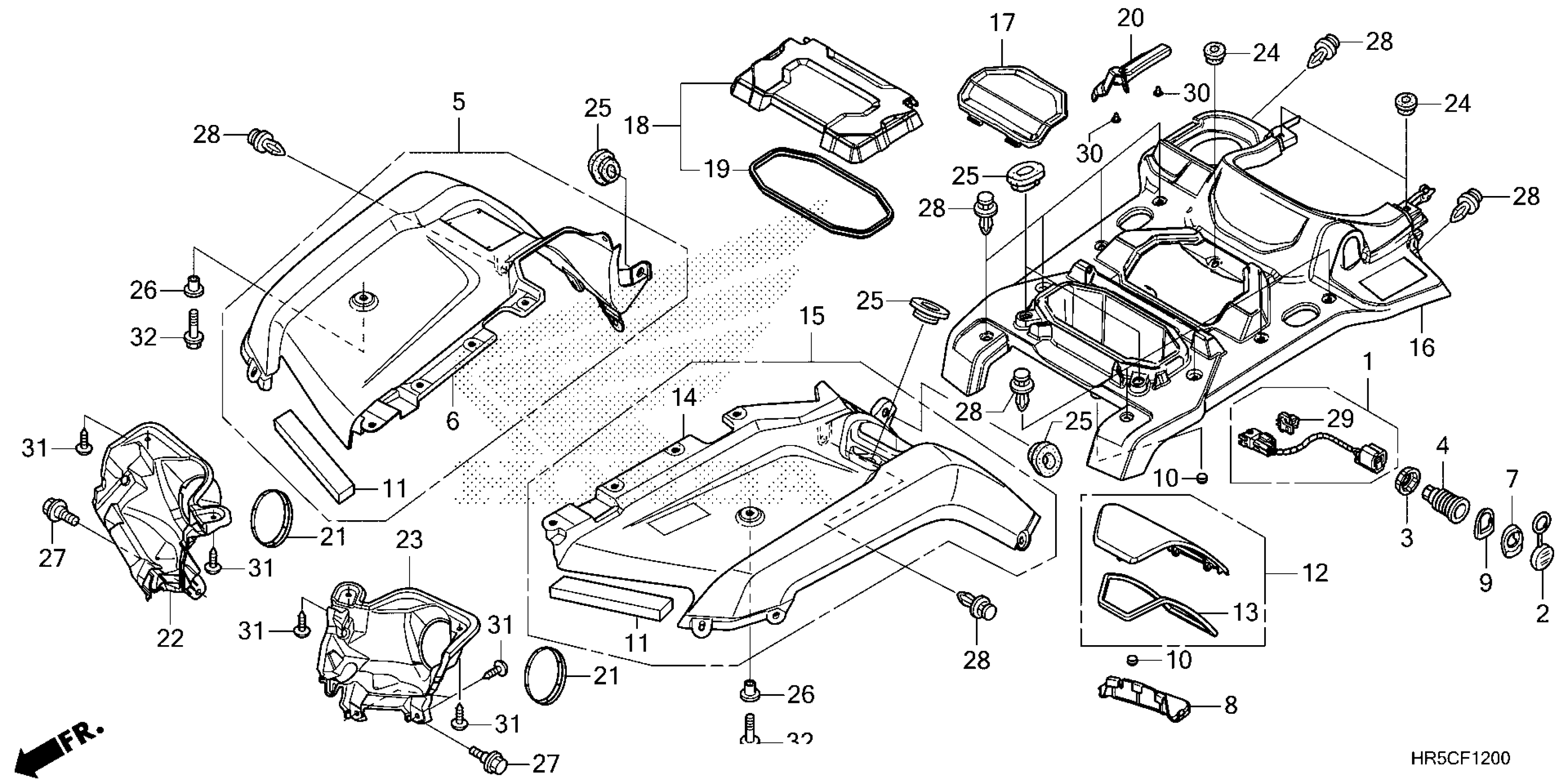

Honda TRX520FM62A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE45E-R4900001 TO 1HFTE45E-R4999999 FRONT FENDER Diagram

#

Description
Price

1

SUB-HARNESS, ACCESSORY

31651-HR4-A20

$4.80

2

CAP

31652-HP0-A01

$2.24

3

NUT

31653-HP0-A01

$1.49

4

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

6

FDR, R. FR. *NHB76M*

61100-HR6-BJ0ZC

$189.62

6

FDR, R. FR. *PB431M*

61100-HR6-BJ0ZD

$113.95

6

FDR, R. FR. *YRA15L*

61100-HR6-MH0ZA

$289.38

6

FDR, R. FR. *YRA15L* This part replaces 61100-HR6-MH0ZC.

61100-HR6-MH0ZA

$289.38

7

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.28

8

PLUG, GLOVE BOX *NH1* (BLACK)

61103-HR0-F00ZA

$4.49

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.70

10

PLUG, FR. FENDER

61105-KA8-000

$1.49

12

LID ASSY., GLOVE BOX *YRA15L* (CLOSE RANGE CAMO 2)

61110-HR4-BP0ZA

$83.13

13

SEAL, GLOVE BOX

61122-HR4-A20

$4.10

14

FENDER, L. FR. *YRA15L* (CLOSE RANGE CAMO 2)

61200-HR4-BP0ZA

$211.93

14

FENDER, L. FR. *YRA15L* (CLOSE RANGE CAMO 2) This part replaces 61200-HR4-BP0ZC.

61200-HR4-BP0ZA

$211.93

14

FENDER, L. FR. *NHB76M* (MAT STEALTH GRAY METALLIC)

61200-HR6-680ZB

$1,046.51

14

FDR, L. FR. *PB431M*

61200-HR6-680ZG

$222.02

16

COVER SET, FR. CENTER (TYPE1) (WL)

61305-HR5-B80ZA

$138.20

17

LID, RADIATOR CAP *NH1* (BLACK)

61310-HR6-B00ZA

$4.13

18

LID ASSY., POCKET *NH1* (BLACK)

61320-HR6-B00ZA

$104.92

19

SEAL, POCKET

61322-HR6-B00

$2.46

20

COVER, AIR VENT TUBE *NH1* (BLACK)

61330-HR6-B00ZA

$2.31

21

CAP, FR. COVER *NH1* (BLACK)

64365-040-000ZH

$4.33

22

COVER, R. HEADLIGHT

66301-HR3-A20

$3.28

23

COVER, L. HEADLIGHT

66302-HR3-A20

$3.28

24

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

25

GROMMET, SIDE COVER

83551-MA6-000

$3.35

26

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

27

BOLT, FLANGE (6MM)

90111-162-000

$2.89

28

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

29

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

30

SCREW, TAPPING (4X8)

93903-24120

$1.49

31

SCREW, TAPPING (5X12)

93903-25220

$1.49

32

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
