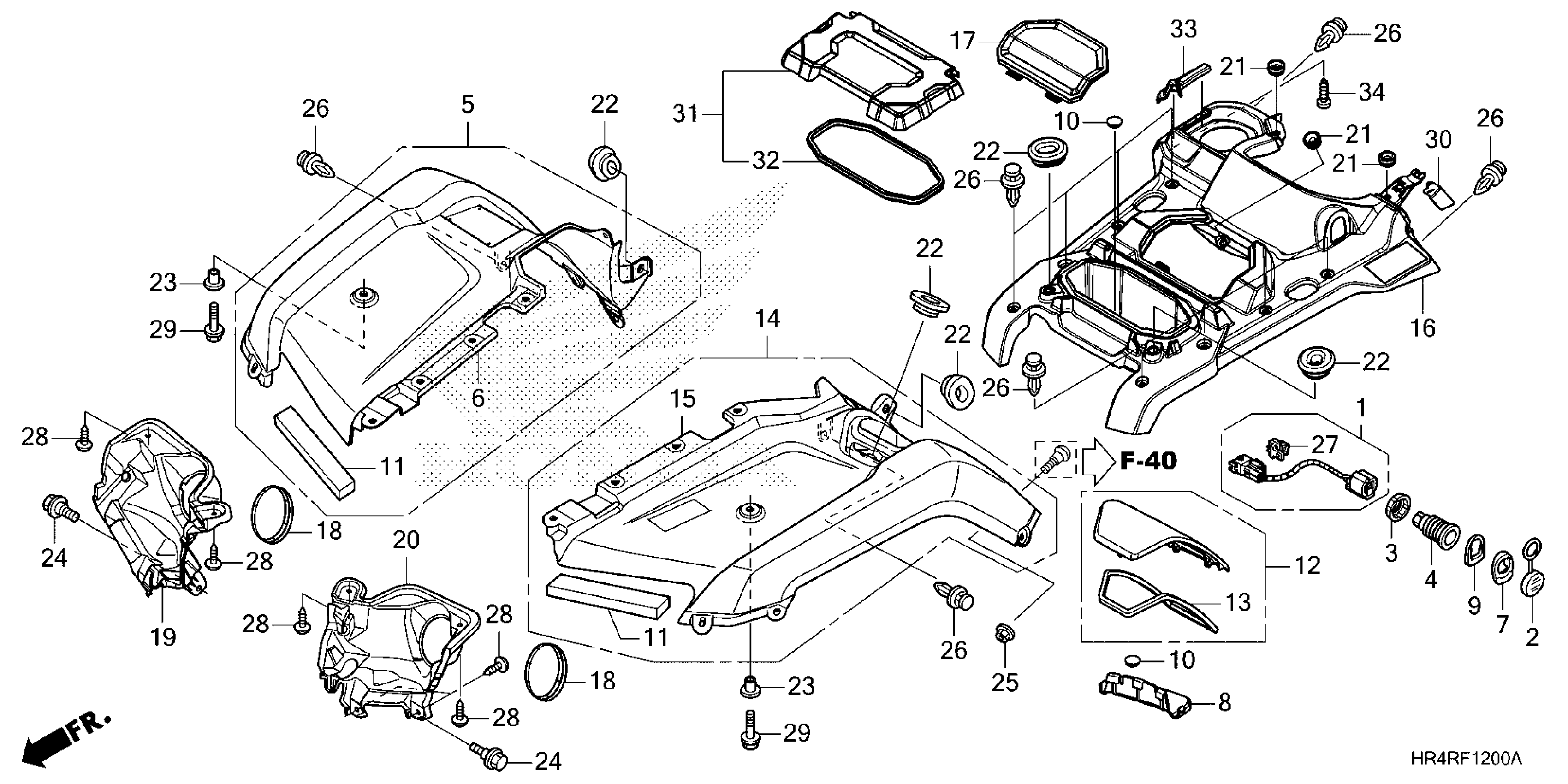

Honda TRX520FM2A (26) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE446-TJ200001 TO 1HFTE446-TJ299999 FRONT FENDER Diagram

SUB-HARNESS, ACCESSORY

31651-HR4-A20

$4.80

CAP

31652-HP0-A01

$2.24

NUT

31653-HP0-A01

$1.49

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

FDR, R. FR. *R415R*

61100-HR6-B30ZA

Unavailable

FDR, R. FR. *G215R*

61100-HR6-B30ZB

Unavailable

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.28

PLUG, GLOVE BOX *NH1* (BLACK)

61103-HR0-F00ZA

$4.49

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.70

PLUG, FR. FENDER

61105-KA8-000

$1.49

SEAL, FR. FENDER

61107-HR4-A20

$5.29

LID ASSY. *G215R*

61110-HR4-L20ZS

$66.62

LID ASSY. *R415R*

61110-HR4-L20ZU

$13.98

SEAL, GLOVE BOX

61122-HR4-A20

$4.10

FDR, FR. L *G215R*

61200-HR4-L20ZR

$55.26

FDR, FR. L *R415R*

61200-HR4-L20ZT

$71.64

COVER SET, FR. CENTER (TYPE1) (WL)

61305-HR4-A70ZC

$144.66

LID, RADIATOR CAP *NH1* (BLACK)

61310-HR6-B00ZA

$4.13

CAP, FR. COVER *NH1* (BLACK)

64365-040-000ZH

$4.33

COVER, R. HEADLIGHT

66301-HR3-A20

$3.28

COVER, L. HEADLIGHT

66302-HR3-A20

$3.28

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

GROMMET, SIDE COVER

83551-MA6-000

$3.35

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, FLANGE (6MM)

90302-187-000

$2.39

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

SCREW, TAPPING (5X12)

93903-25220

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

RUBBER, CENTER COVER

61311-HR3-AJ0

$87.49

LID ASSY., POCKET *NH1* (BLACK)

61320-HR6-B00ZA

$104.92

SEAL, POCKET

61322-HR6-B00

$2.46

COVER, AIR VENT TUBE *NH1* (BLACK)

61330-HR6-B00ZA

$2.31

SCREW, TAPPING (4X8)

93903-24120

$1.49
