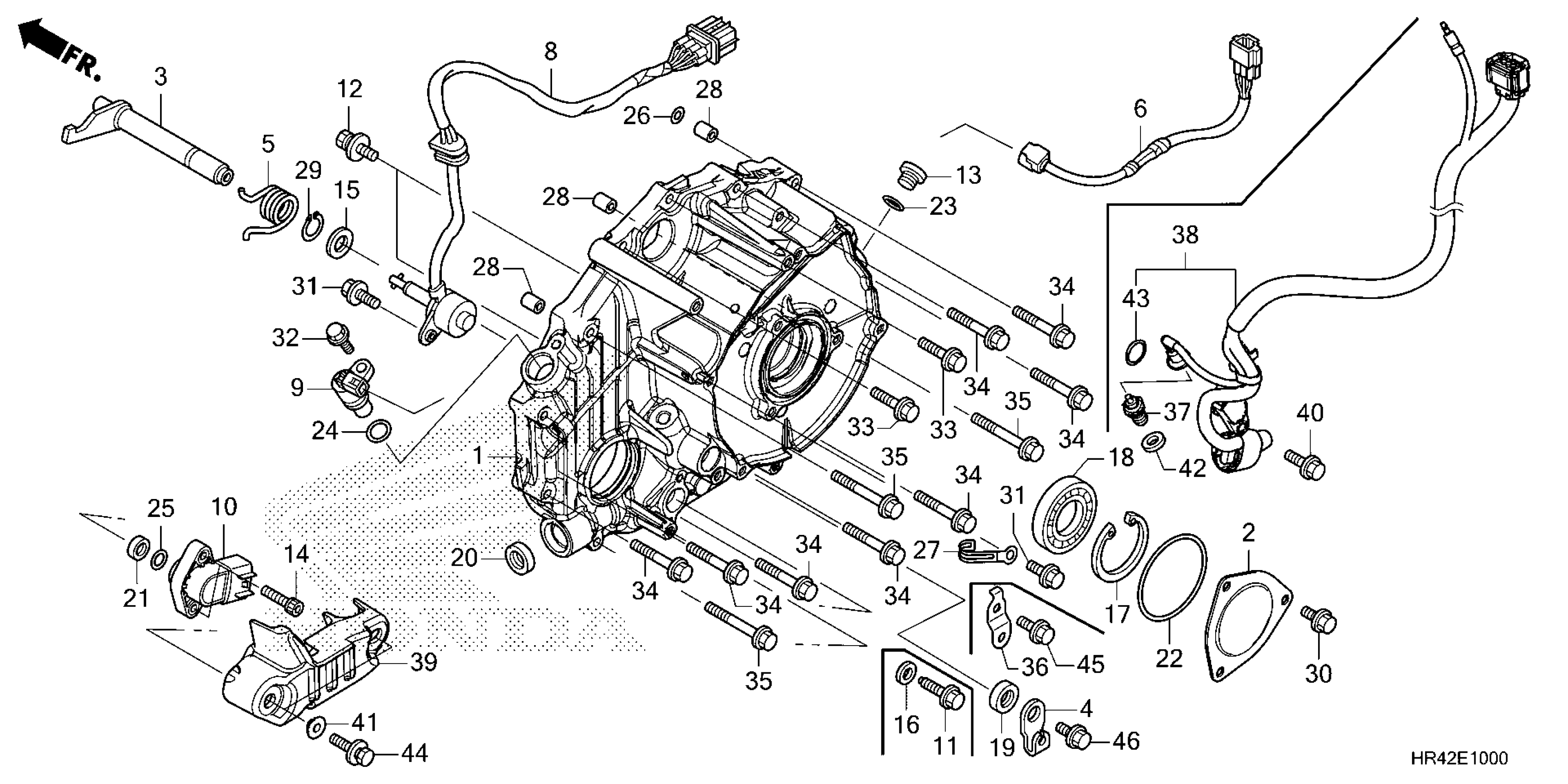

Honda TRX520FM1AC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE440-P4900001 REAR CRANKCASE COVER Diagram

COVER ASSY., RR. CRANKCASE

11400-HR4-A20

$244.62

CAP, RR. COVER

11342-HP5-600

$3.06

SHAFT A, REVERSE STOPPER

24860-HP5-000

$22.05

LEVER, REVERSE STOPPER

24865-HP5-600

$4.76

SPRING, REVERSE STOPPER

24867-HP5-600

$4.16

SUB-HARNESS, ENGINE

32101-HR3-HB0

$58.13

SWITCH ASSY., CHANGE

35759-HR3-HA1

$121.18

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$45.37

BOLT, SPECIAL FLANGE (8X24.5)

90009-HP5-000

$3.85

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

CAP (14MM)

90084-KY2-000

$15.97

WASHER, THRUST (12MM)

90452-166-600

$2.39

WASHER, SEALING (8MM)

90495-MN5-000

$3.56

CIRCLIP (INNER) (42MM)

90602-GFZ-000

$3.67

BEARING, RADIAL BALL (6806)

91015-HR0-F21

$17.55

OIL SEAL (12X22X5)

91201-965-000

$4.06

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.78

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.78

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

O-RING (58X3)

91301-HR3-A40

$2.39

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

CLIP (2X70)

91413-679-000

$9.23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
