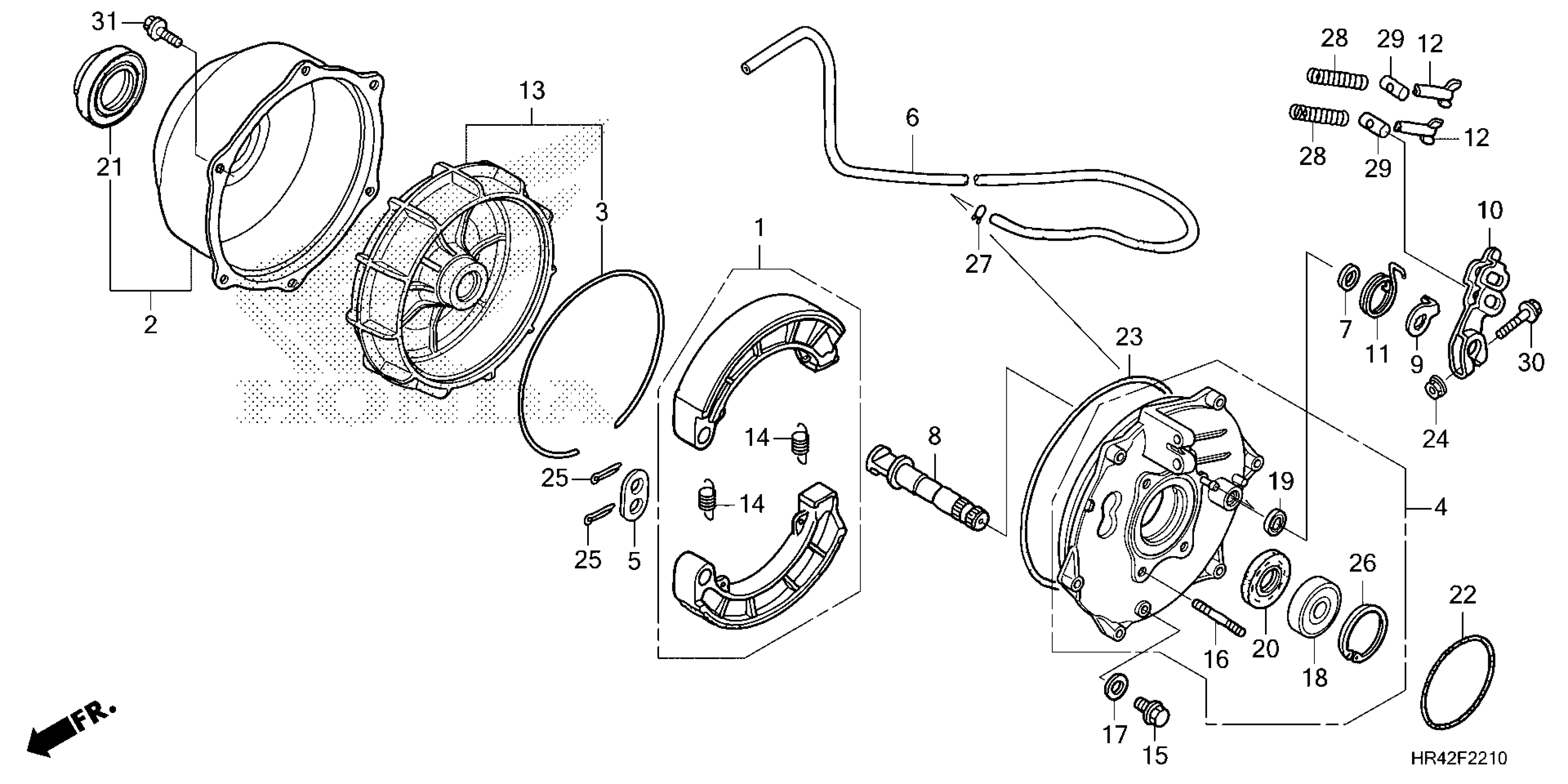

Honda TRX520FM1AC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE440-P4900001 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK)

06430-HN0-A20

$45.79

SHOE SET, BRAKE (JB)

06430-HN0-A30

$58.11

COVER ASSY., DRUM

40520-HP0-A00

$47.29

RING, DAMPER

42624-HN5-M00

$2.92

PANEL SET, RR. BRAKE

43010-HR3-A20

$110.59

WASHER, ANCHOR PIN

43102-319-000

$6.21

TUBE, BREATHER (3.5X1005)

43132-HR3-A20

$3.37

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-HA7-670

$35.51

CAM, RR. BRAKE

43141-HA7-671

$26.81

INDICATOR, BRAKE

43145-HN5-M00

$1.49

ARM, RR. BRAKE

43410-HN2-000

$22.48

SPRING, RR. BRAKE ARM

43415-HM7-000

$7.19

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

DRUM ASSY., RR. BRAKE

43620-HR3-A20

$81.54

SPRING, FR. BRAKE SHOE (RR.)

45133-329-000

$2.75

BOLT, SEALING (8MM)

90109-371-000

$2.58

BOLT, STUD (10X25)

90151-HA7-670

$6.22

WASHER (8MM)

90471-580-000

$2.92

BEARING, RADIAL BALL (63/28U)

91002-KY0-981

$38.35

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

DUST SEAL (44X58X8) (ARAI)

91251-HF7-003

$13.96

DUST SEAL (41X76X19) (ARAI)

91253-HM7-003

$17.94

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

O-RING (199X3.1)

91355-HN2-003

$13.21

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

CIRCLIP (INNER) (68MM)

94520-68000

$5.26

CLIP, TUBE (C6.5)

95002-35000

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
