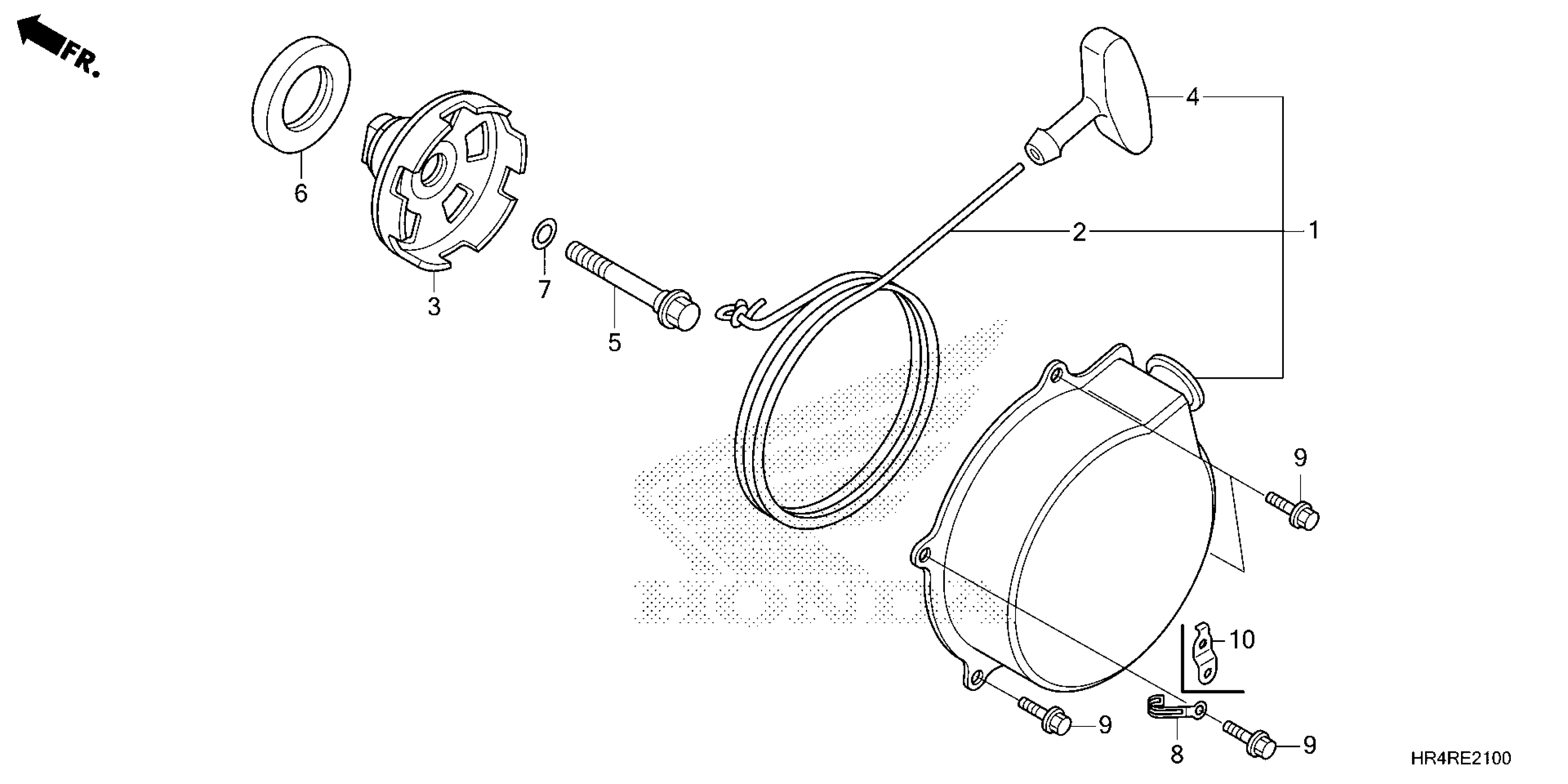

Honda TRX520FM13A (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE445-SJ100001 TO 1HFTE445-SJ199999 RECOIL STARTER Diagram

STARTER ASSY., RECOIL

28400-HR0-F21

$99.66

ROPE, RECOIL STARTER

28407-HM7-A11

$23.17

PULLEY, RECOIL

28430-HP5-660

$47.23

KNOB, RECOIL STARTER

28461-HP5-661

$22.22

BOLT, SPECIAL (12MM)

90081-HR3-A40

$1.88

OIL SEAL (32X52X9) (ARAI)

91202-HP0-A01

$12.77

O-RING (11.5X2.3) | Use from Engine SN 8856662.

91303-HR3-HG1

$1.40

O-RING (11.5X2.3) | Use up to Engine SN 8856661.

91303-679-003

Unavailable

CLIP (2X70)

91413-679-000

$8.51

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.97
