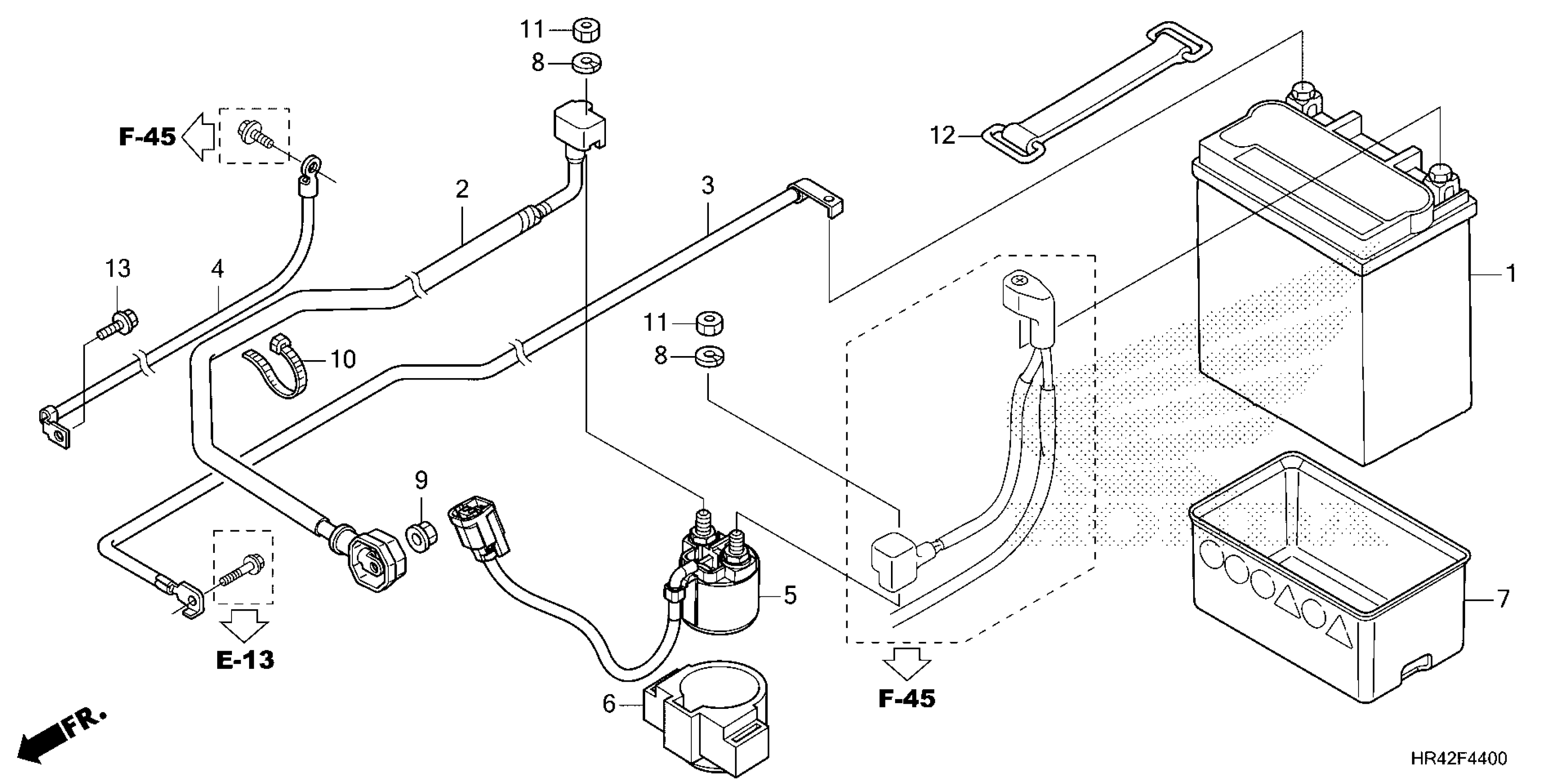

Honda TRX520FE2A (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE446-N4800001 TO 1HFTE446-N4899999 BATTERY Diagram

#

Description

Price

1

BATTERY (GYZ16H) This part replaces 31500-HR0-F01.

31500-HR0-F02AH

$112.25

1

BATTERY (GYZ16H) (YUASA) (MSDS)

31500-HR0-F01AH

$112.25

2

CABLE, STARTER MOTOR

32405-HR3-A20

$19.35

3

CABLE, BATTERY GROUND

32601-HR3-A20

$12.95

4

CABLE, FRAME GROUND

32603-HR3-A20

$5.65

5

SW, STARTER MAGNETIC

35850-HR3-FA1

$24.01

6

RUBBER, MAGNETIC SHOCK (Honda Code 8611063)

35856-HP5-600

$4.44

7

RUBBER, BATTERY

50334-HR0-F00

$7.14

8

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

9

NUT-WASHER (6MM)

90071-MB0-000

$1.97

10

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

11

NUT, HEX. (6MM)

94002-06390-0S

$1.49

12

BAND F, BATTERY (155MM)

95012-17001

$7.23

13

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
