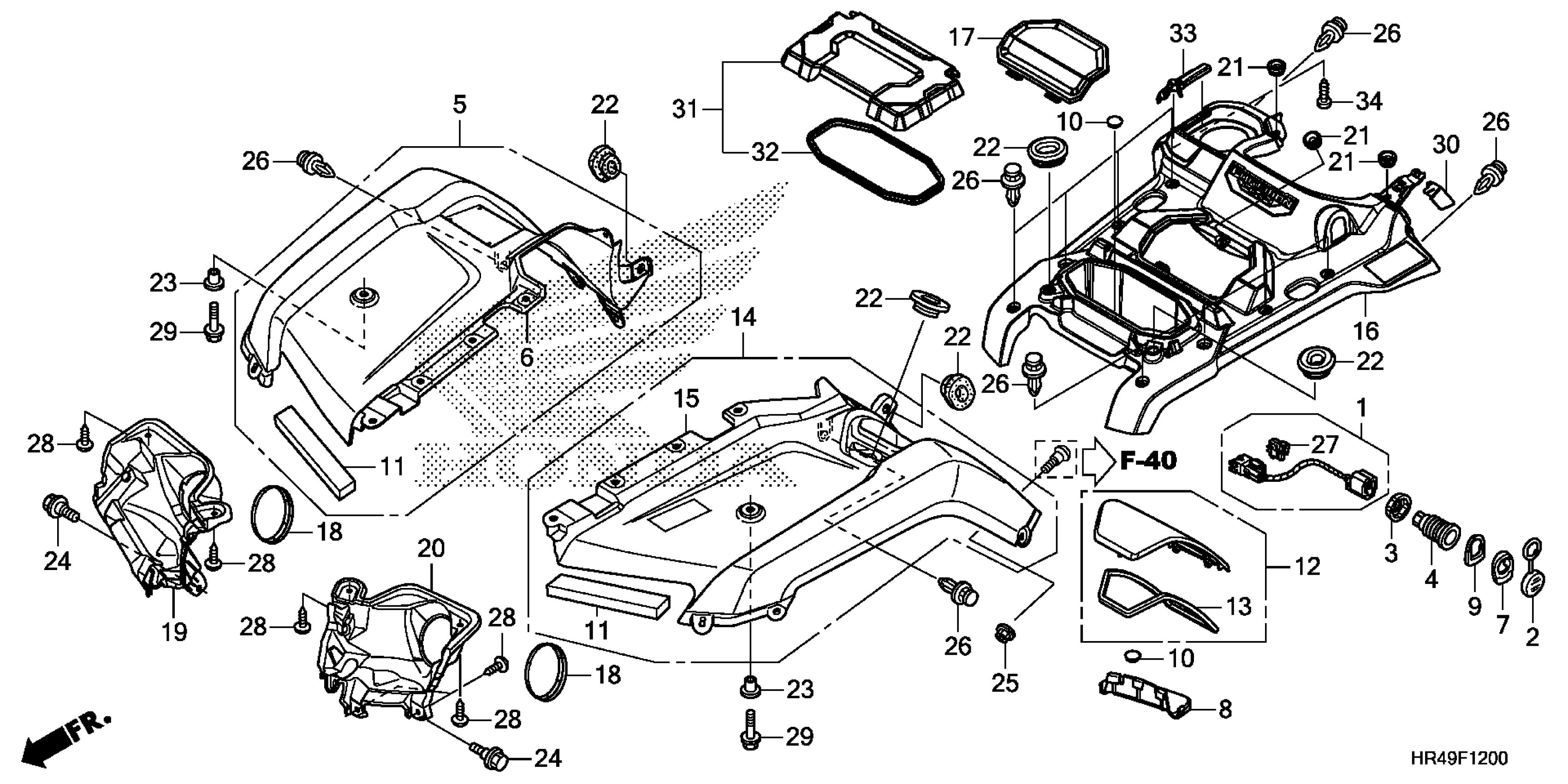

Honda TRX520FE2A (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE446-M4700001 FRONT FENDER Diagram

#

Description
Price

1

SUB-HARNESS, ACCESSORY

31651-HR4-A20

$4.80

2

CAP

31652-HP0-A01

$2.24

3

NUT

31653-HP0-A01

$1.49

4

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

5

FENDER, R. FR. *R232* (PATRIOT RED) | Patriot red R232

61100-HR4-BJ0ZC

$110.61

5

FENDER, R. FR. *YR357R* (MOOSE BROWN R) | Moose brown r YR357R

61100-HR4-BJ0ZG

$131.10

7

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.28

8

PLUG, GLOVE BOX *NH1* (BLACK)

61103-HR0-F00ZA

$4.49

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.70

10

PLUG, FR. FENDER

61105-KA8-000

$1.49

11

SEAL, FR. FENDER

61107-HR4-A20

$5.29

12

LID ASSY., GLOVE BOX *R232* (PATRIOT RED) | Patriot red R232

61110-HR4-L20ZB

$11.26

12

LID ASSY., GLOVE BOX *YR357R* (MOOSE BROWN R) (NOT AVAILABLE) | Moose brown r YR357R

61110-HR4-L20ZM

$11.95

13

SEAL, GLOVE BOX

61122-HR4-A20

$4.10

14

FENDER, L. FR. *R232* (PATRIOT RED) | Patriot red R232

61200-HR4-L20ZA

$80.24

14

FENDER, L. FR. *YR357R* (MOOSE BROWN R) | Moose brown r YR357R

61200-HR4-L20ZL

$105.44

16

COVER SET, FR. CENTER (TYPE1) (WL) | Patriot red R232; Moose brown r YR357R

61305-HR4-A90ZC

$141.26

17

LID, RADIATOR CAP *NH1* (BLACK)

61310-HR6-B00ZA

$4.13

18

CAP, FR. COVER *NH1* (BLACK)

64365-040-000ZH

$4.33

19

COVER, R. HEADLIGHT

66301-HR3-A20

$3.28

20

COVER, L. HEADLIGHT

66302-HR3-A20

$3.28

21

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

22

GROMMET, SIDE COVER

83551-MA6-000

$3.35

23

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

24

BOLT, FLANGE (6MM)

90111-162-000

$2.89

25

NUT, FLANGE (6MM)

90302-187-000

$2.39

26

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

27

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

28

SCREW, TAPPING (5X12)

93903-25220

$1.49

29

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

30

RUBBER, CENTER COVER

61311-HR3-AJ0

$87.49

31

LID ASSY., POCKET *NH1* (BLACK)

61320-HR6-B00ZA

$104.92

32

SEAL, POCKET

61322-HR6-B00

$2.46

33

COVER, AIR VENT TUBE *NH1* (BLACK)

61330-HR6-B00ZA

$2.31

34

SCREW, TAPPING (4X8)

93903-24120

$1.49
