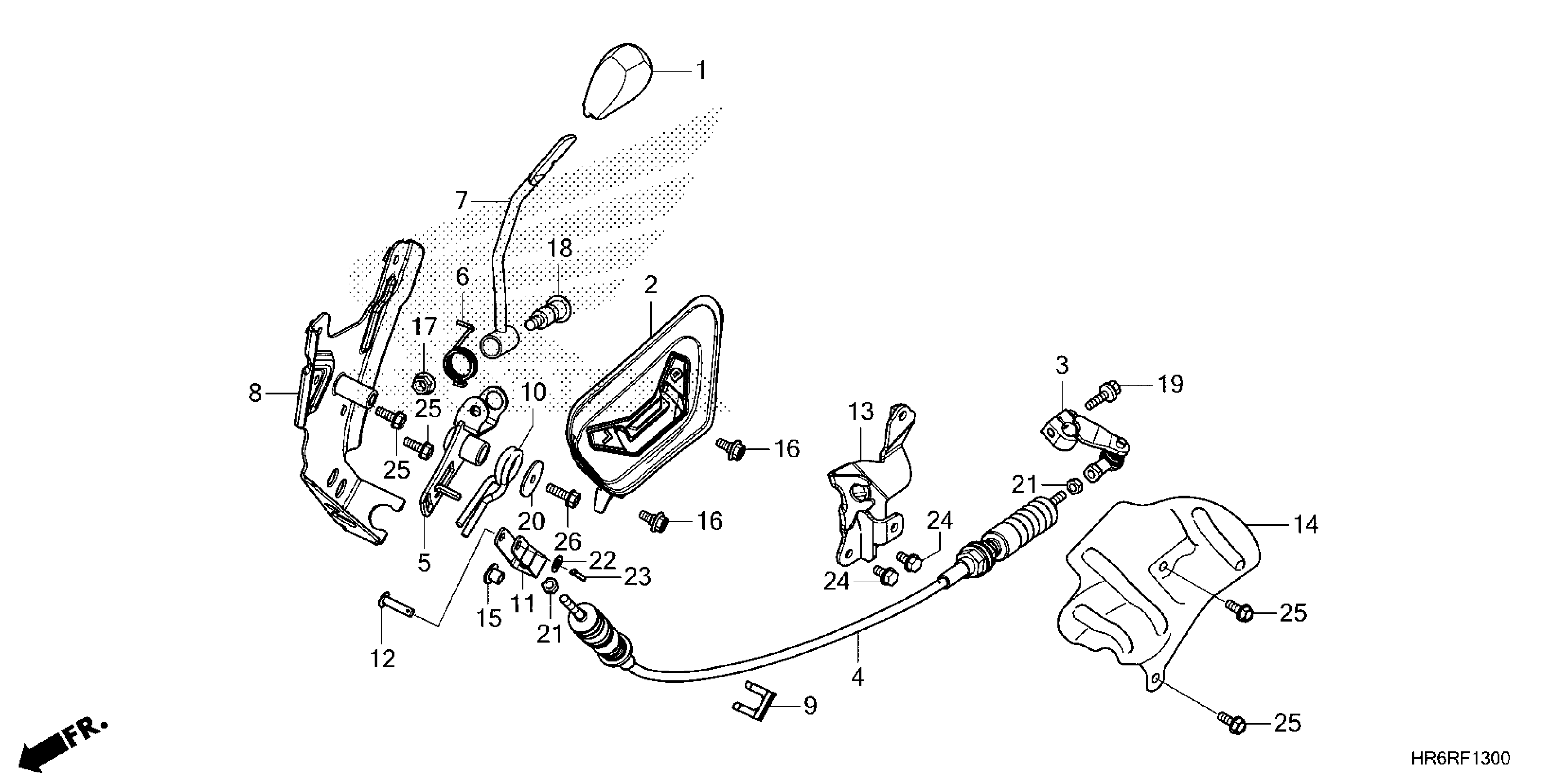

Honda TRX520FA73A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE46H-R4950001 TO 1HFTE46H-R4999999 SELECT LEVER Diagram

GRIP, DRIVE SELECT LEVER *NH1* (BLACK)

54050-HL1-A00ZA

$13.48

GATE, MODE SELECT

54050-HR6-A60

$6.10

ARM, SHIFT CHANGE

54313-HR6-A60

$49.78

WIRE, CONTROL

54315-HR6-A60

$32.14

PLATE, SHIFT CHANGE

54320-HR6-A60

$29.43

SPRING, SELECT LEVER

54324-HN7-000

$4.43

LEVER, MODE SELECT

54325-HR6-A60

$19.72

HOLDER, SHIFT LEVER

54330-HR6-MF0

$23.71

CLAMP, SHIFT CABLE

54332-HR6-A60

$6.19

SPRING, SHIFT RETURN

54335-HR6-A60

$2.32

PLATE, SLIDE

54336-HR6-A60

$3.83

SHAFT, SLIDE

54337-HN7-000

$2.80

STAY, SHIFT CABLE HOLDER

54341-HR6-A60

$16.83

COVER, SHIFT

54369-HR6-A60

$8.31

COLLAR, FAIRING SETTING

64209-MN5-000

$2.83

BOLT, FLANGE (6MM)

90111-162-000

$2.78

NUT, SELF-LOCK (8MM)

90115-659-003

$0.77

BOLT, CHANGE PIVOT

90115-HR6-MF0

$10.58

BOLT, FLANGE (6X20)

90118-968-000

$4.04

WASHER, TANK SETTING

90136-428-870

$1.51

NUT, HEX. (6MM)

94002-06000-0S

$1.37

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

PIN, SPLIT (2.0)

94201-20151

$0.51

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.12

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.57

BOLT, FLANGE (6X20)

95701-06020-08

$0.42
