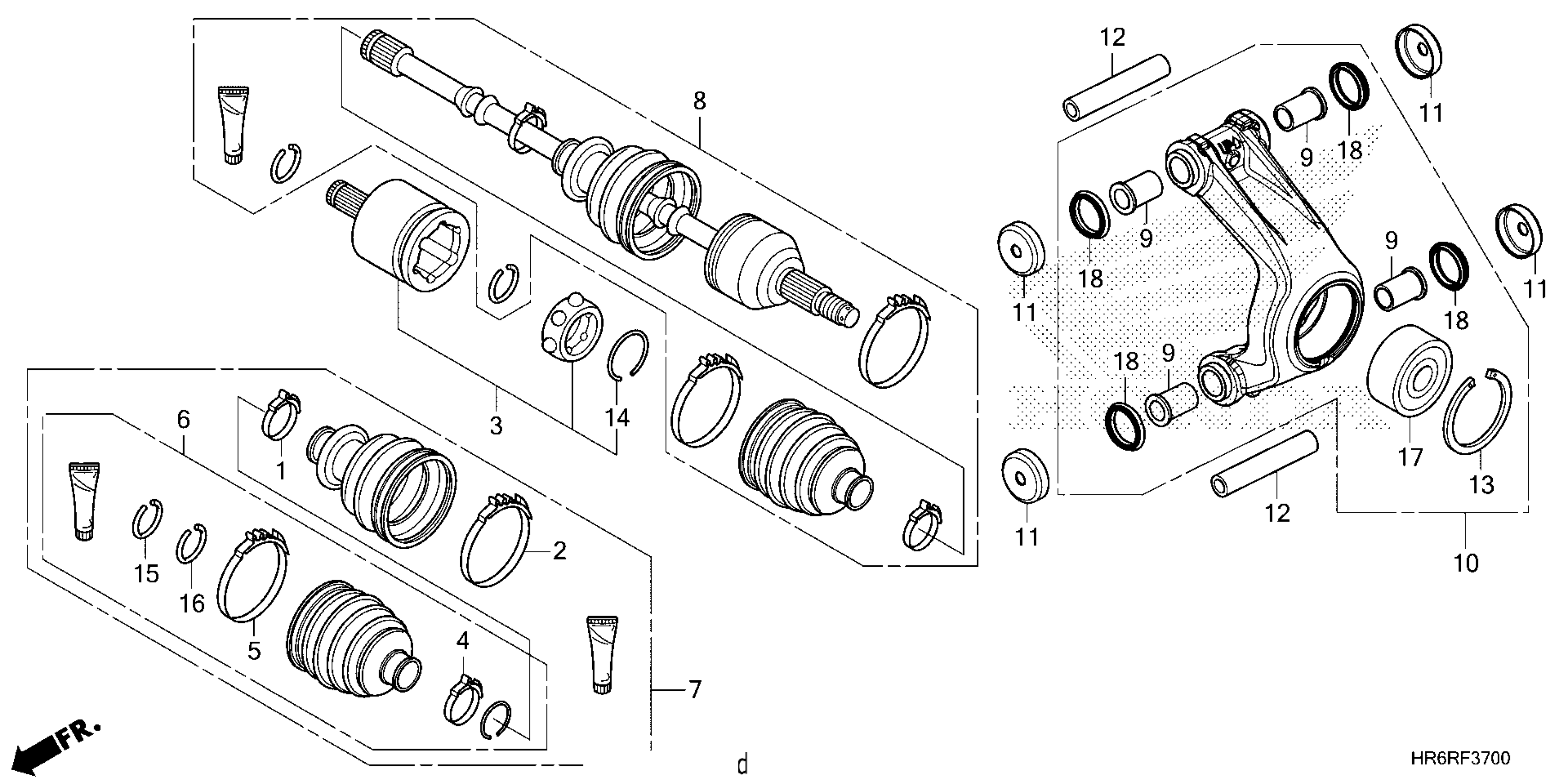

Honda TRX520FA73A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE46H-R4950001 TO 1HFTE46H-R4999999 REAR KNUCKLE@REAR DRIVE SHAFT Diagram

BAND A, OUTBOARD

42215-HR6-B01

$242.70

BAND B, OUTBOARD

42216-HR6-B01

$87.46

JOINT, INBOARD

42220-HR6-MF1

$212.82

BAND A, INBOARD

42225-HR6-B01

$38.49

BAND B, INBOARD

42226-HR6-B01

$43.16

BOOT SET, INBOARD

42230-HR6-B01

$139.43

BOOT SET (MSDS)

42240-HR6-B01

$225.89

DRIVESHAFT SET, RR.

42250-HR6-MF1

$231.24

BUSH, ARM (UPPER)

51108-HP0-A00

$17.10

KNUCKLE SUB-ASSY., RR.

52205-HR6-B00

$149.05

CAP, ARM PIVOT

52206-HN8-000

$9.96

COLLAR, KNUCKLE

52464-HR6-A60

$10.48

CIRCLIP, SPECIAL (INNER) (62)

90651-HP6-A00

$7.64

RING A, INBOARD SNAP

90653-HR6-B01

$62.36

RING B, INBOARD SNAP

90654-HR6-B01

$28.30

RING, INBOARD SNAP

90657-HR6-B01

$31.38

BEARING, ANGULAR BALL (34X61X27) (NTN)

91051-HP6-A01

$58.76

DUST SEAL (28X36X7)

91262-HN8-003

$7.19
