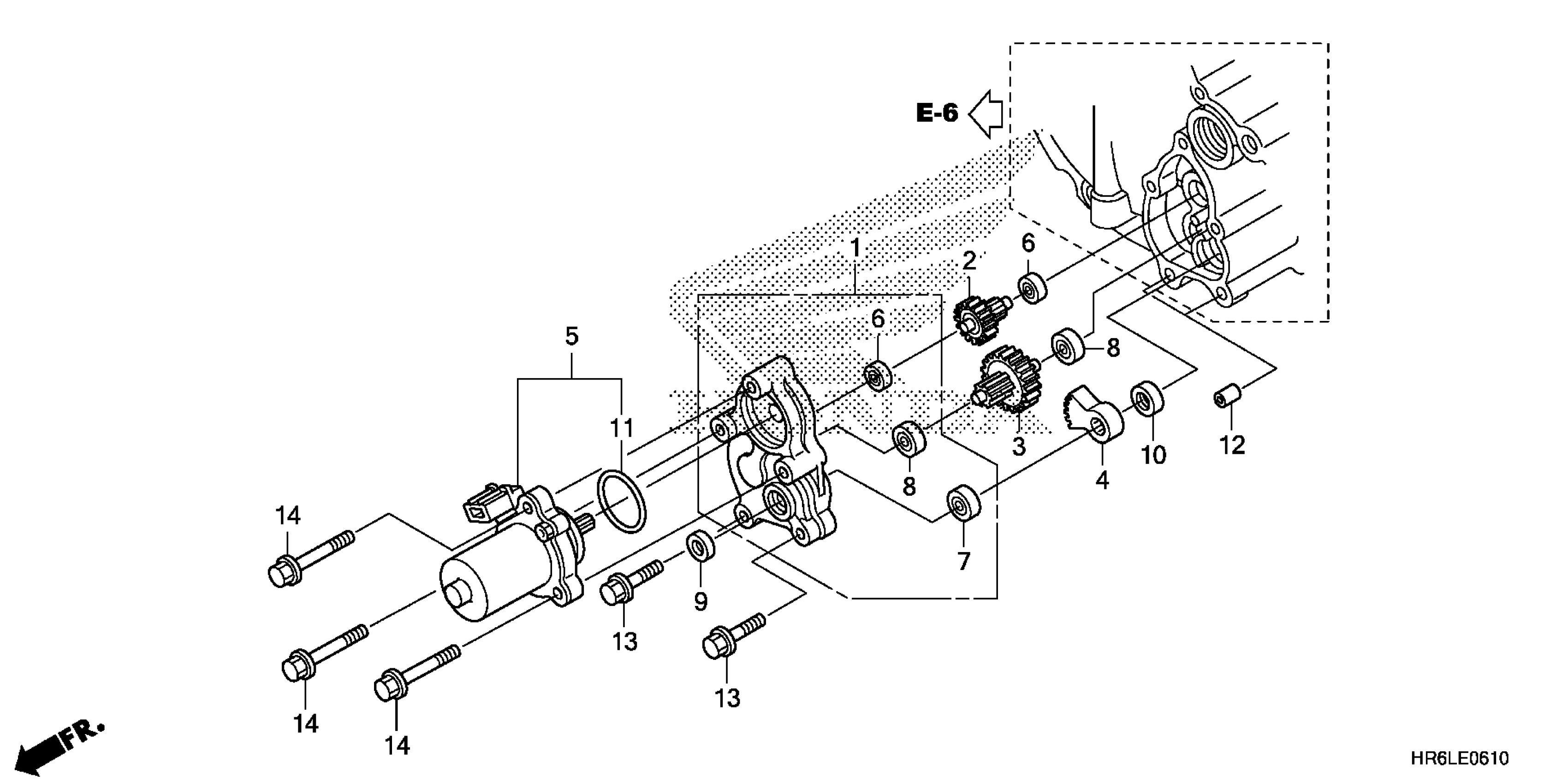

Honda TRX520FA72AC (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE462-L4530001 TO 1HFTE462-L4569999 CONTROL MOTOR Diagram

COVER, REDUCTION GEAR

11335-HP7-A00

$54.80

GEAR, SHIFT REDUCTION (41T/7T)

24615-HP7-A01

Unavailable

GEAR (32T/10T) This part replaces 24616-HP7-A01.

24616-HR6-MF0

$68.00

GEAR, SHIFT REDUCTION (45T)

24617-HP7-A01

Unavailable

MOTOR ASSY., CONTROL This part replaces 31300-HP5-601.

31300-HP5-602

$257.34

BEARING, RADIAL BALL (696ZZ)

91050-HN0-A11

$10.62

BEARING, RADIAL BALL (699ZZ)

91050-HN7-003

$7.63

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

OIL SEAL (9X18X7) (ARAI)

91201-PA9-004

$7.36

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06
