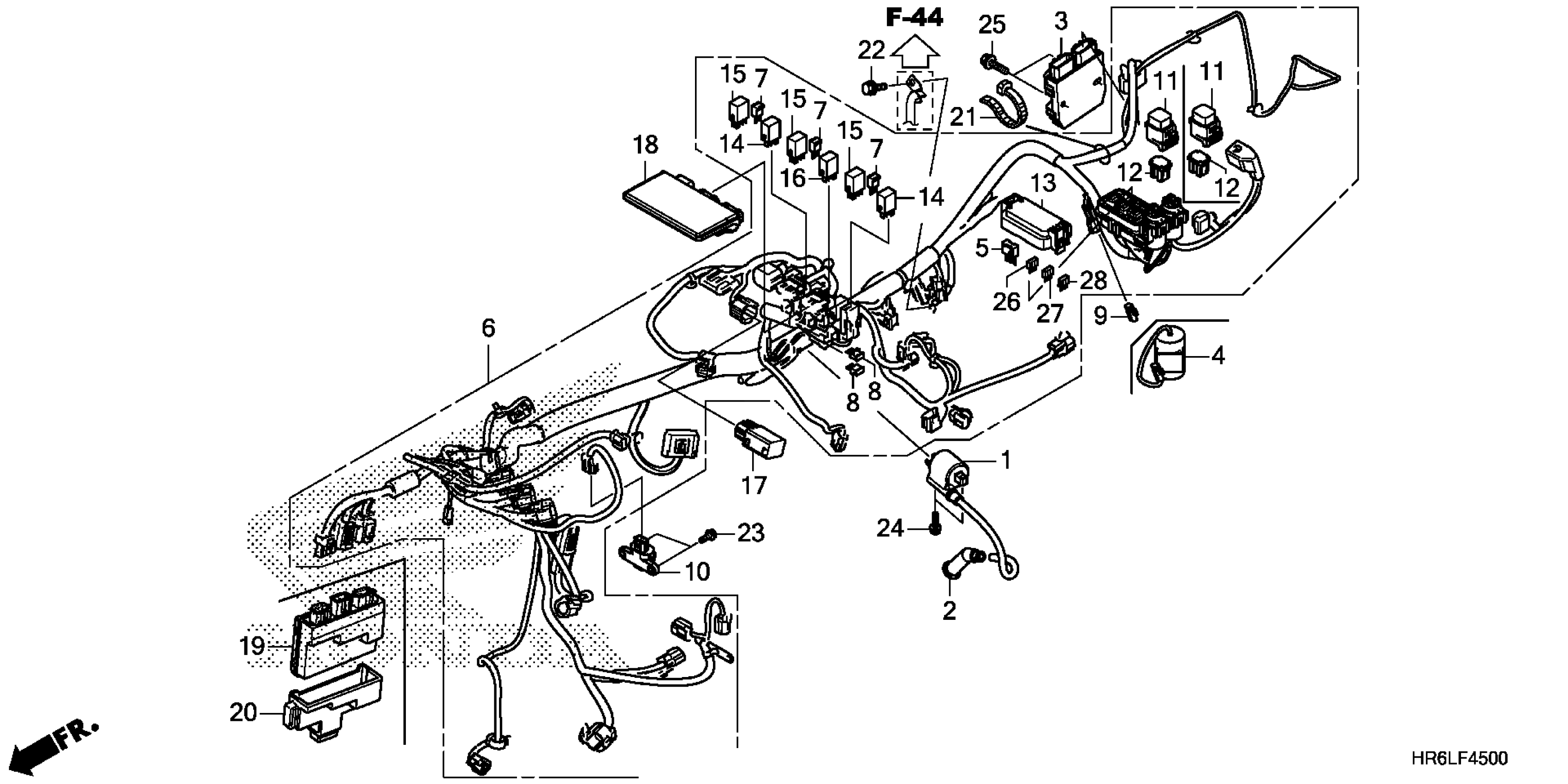

Honda TRX520FA6A (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE46F-L4500001 TO 1HFTE46F-L4599999 WIRE HARNESS Diagram

COIL, IGNITION (R)

30540-MJP-G51

$67.96

CAP ASSY., NOISE SUPPRESSOR

30700-MEA-671

$24.80

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$173.16

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-HR6-M10

$2,461.37

CONNECTOR, DIODE (2P)

32146-SH3-003

$17.88

DIODE (3P)

32146-SJ4-003

$18.41

CONNECTOR, DUMMY (2P 090 F) (BLACK)

32605-HR6-A60

$1.03

SENSOR ASSY., BANK ANGLE

35160-HR6-B01

$74.00

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.32

FUSE, BLOCK (40A)

38211-SNA-A21

$4.12

COVER SET, FUSE

38230-HR4-A40

$2.50

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.88

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.52

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$13.40

RELAY, DIFFLOCK PULLBACK

38580-HR4-A21

$44.29

UNIT COMP This part replaces 38770-HR6-M02.

38770-HR6-M03

$233.12

UNIT COMP

38770-HR6-M03

$233.12

EPS UNIT

39980-HR6-A62

$383.84

CUSHION, EPS UNIT

39981-HN2-B70

$5.50

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.50

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

FUSE, MINI (10A)

98200-41000

$1.22

FUSE, MINI (20A)

98200-42000

$1.12

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
