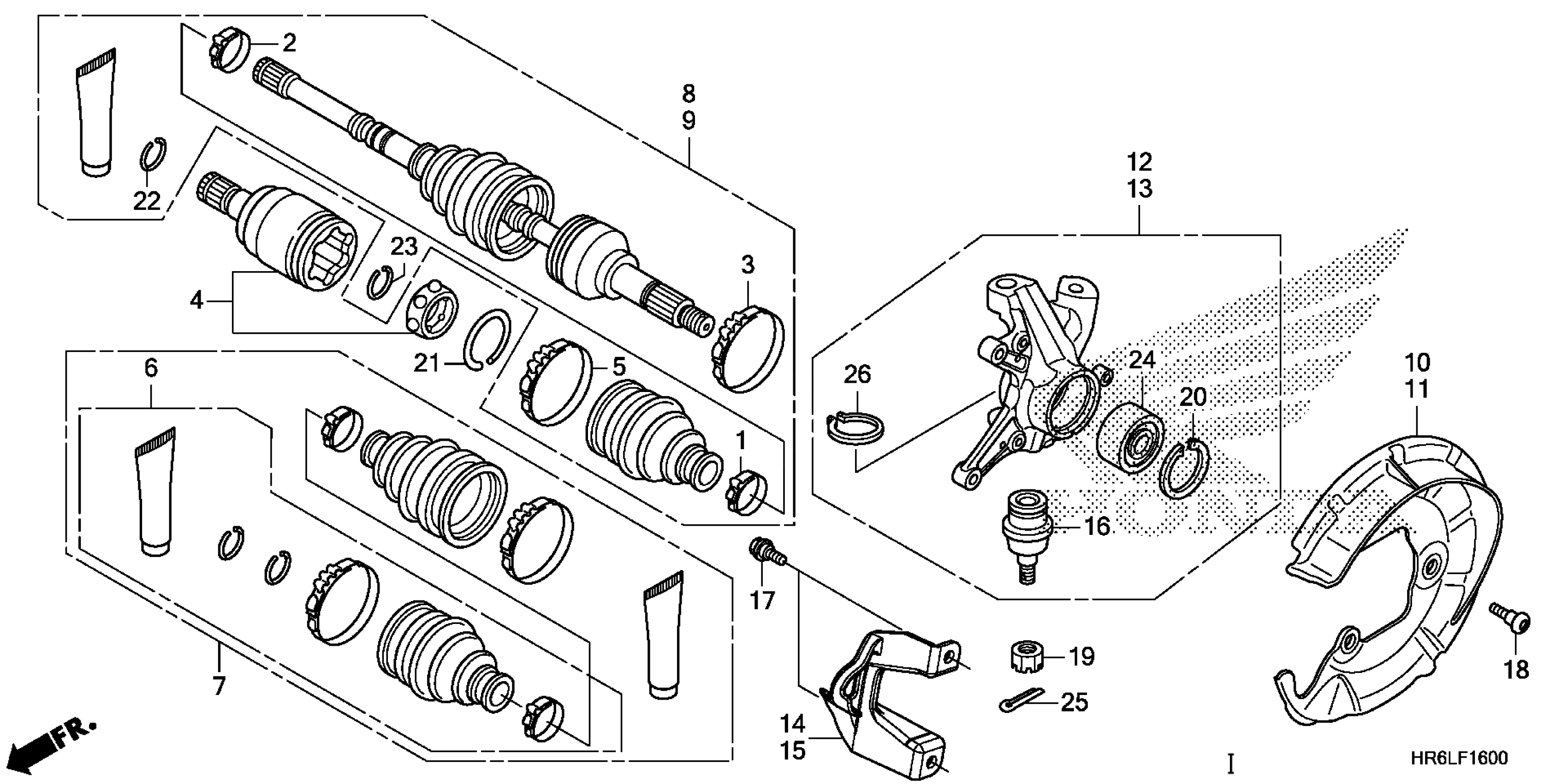

Honda TRX520FA5AC (21) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE460-M4600001 FRONT KNUCKLE@FRONT DRIVE SHAFT Diagram

BAND A, OUTBOARD

44215-HR3-W51

$49.25

BAND A, OUTBOARD

44215-HR6-B01

$120.70

BAND B, OUTBOARD

44216-HR6-B01

$66.67

JOINT, INBOARD

44220-HR3-W51

$288.87

BAND B, INBOARD

44226-HR3-W51

$73.25

BOOT SET, INBOARD

44230-HR3-W51

$147.59

BOOT SET

44240-HR6-B01

$157.84

DRIVESHAFT SET, R. FR.

44250-HR6-B01

$275.42

DRIVESHAFT SET, L. FR.

44350-HR6-B01

$301.10

SPLASH GUARD, R.

45255-HR3-A20

$6.20

SPLASH GUARD, L.

45256-HR3-A20

$6.20

KNUCKLE ASSY., R. FR.

51200-HR3-A20

$120.70

KNUCKLE ASSY., L. FR.

51250-HR3-A20

$120.70

GUARD, R. FR. OUTBOARD

51325-HR6-B00

$3.99

GUARD, L. FR. OUTBOARD

51326-HR6-B00

$2.61

JOINT A, ARM BALL

51375-HP5-601

$20.53

BOLT, FLANGE (6MM)

90111-187-000

$5.59

BOLT, SOCKET (6X15)

90114-HP0-A00

$2.11

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

CIRCLIP, SPECIAL (INNER) (56MM)

90651-HR3-A20

$8.96

RING A, INBOARD SNAP

90651-HR3-W51

$93.95

RING B, INBOARD SNAP

90652-HR3-W51

$33.62

RING, OUTBOARD SNAP

90653-HR3-W51

$33.62

BEARING, ANGULAR BALL (27X55X32)

91051-HR3-A21

$78.45

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85
