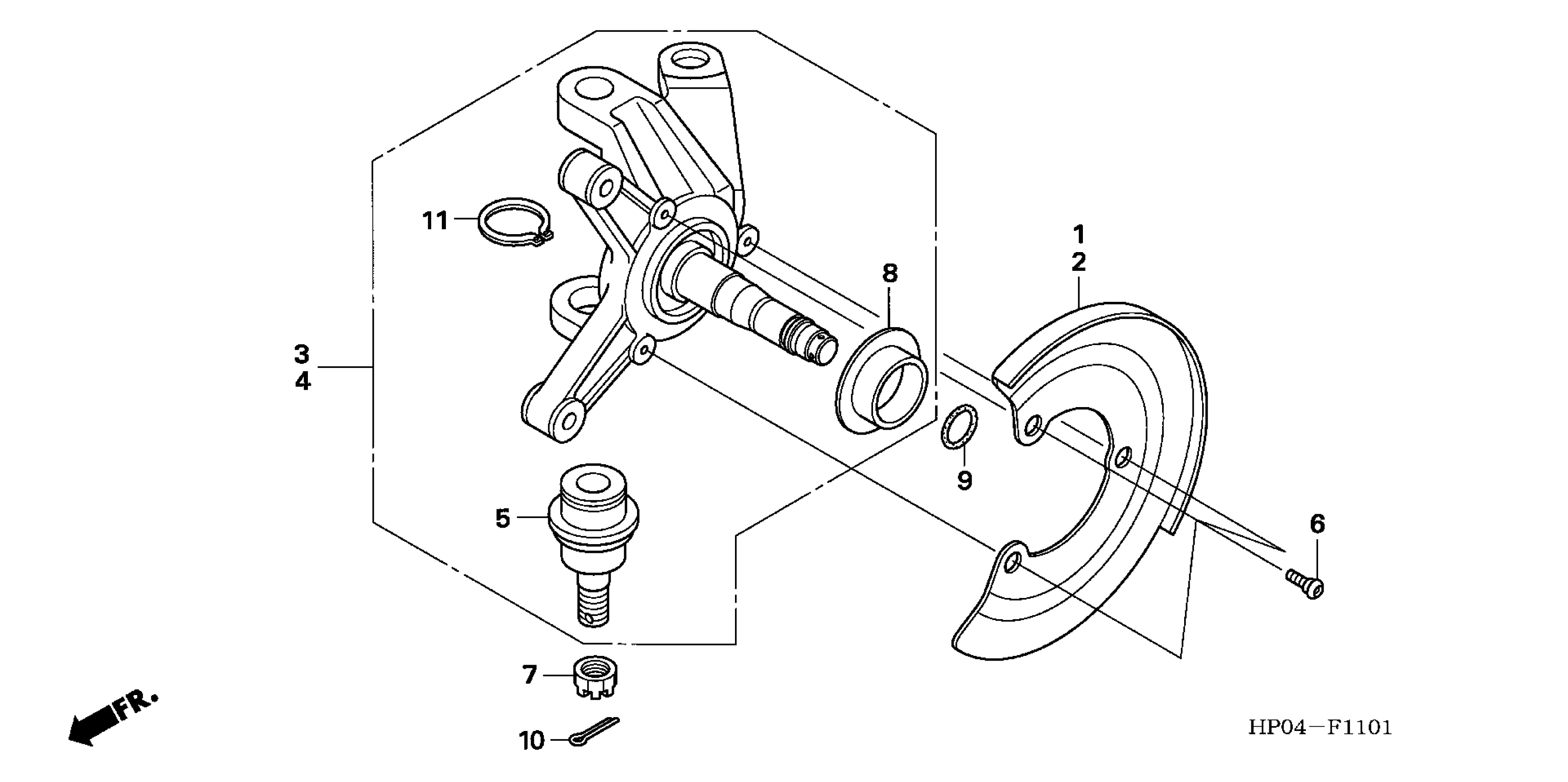

Honda TRX500TMA (06) FOURTRAX FOREMAN, USA, VIN# 1HFTE314-64100001 KNUCKLE (TRX500TM) Diagram

SPLASH GUARD, R.

45255-HP0-A00

$22.98

SPLASH GUARD, L.

45256-HP0-A00

$22.98

KNUCKLE ASSY., R.

51200-HP0-670

$134.28

KNUCKLE ASSY., L.

51250-HP0-670

$144.72

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

JOINT A, ARM BALL

51375-HP5-601

$20.53

BOLT, SOCKET (6X15)

90114-HP0-A00

$2.11

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

RING, SIDE SEAL

91258-HP0-671

$16.23

O-RING (16.8X1.9)

91347-PY3-000

$2.68

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85
