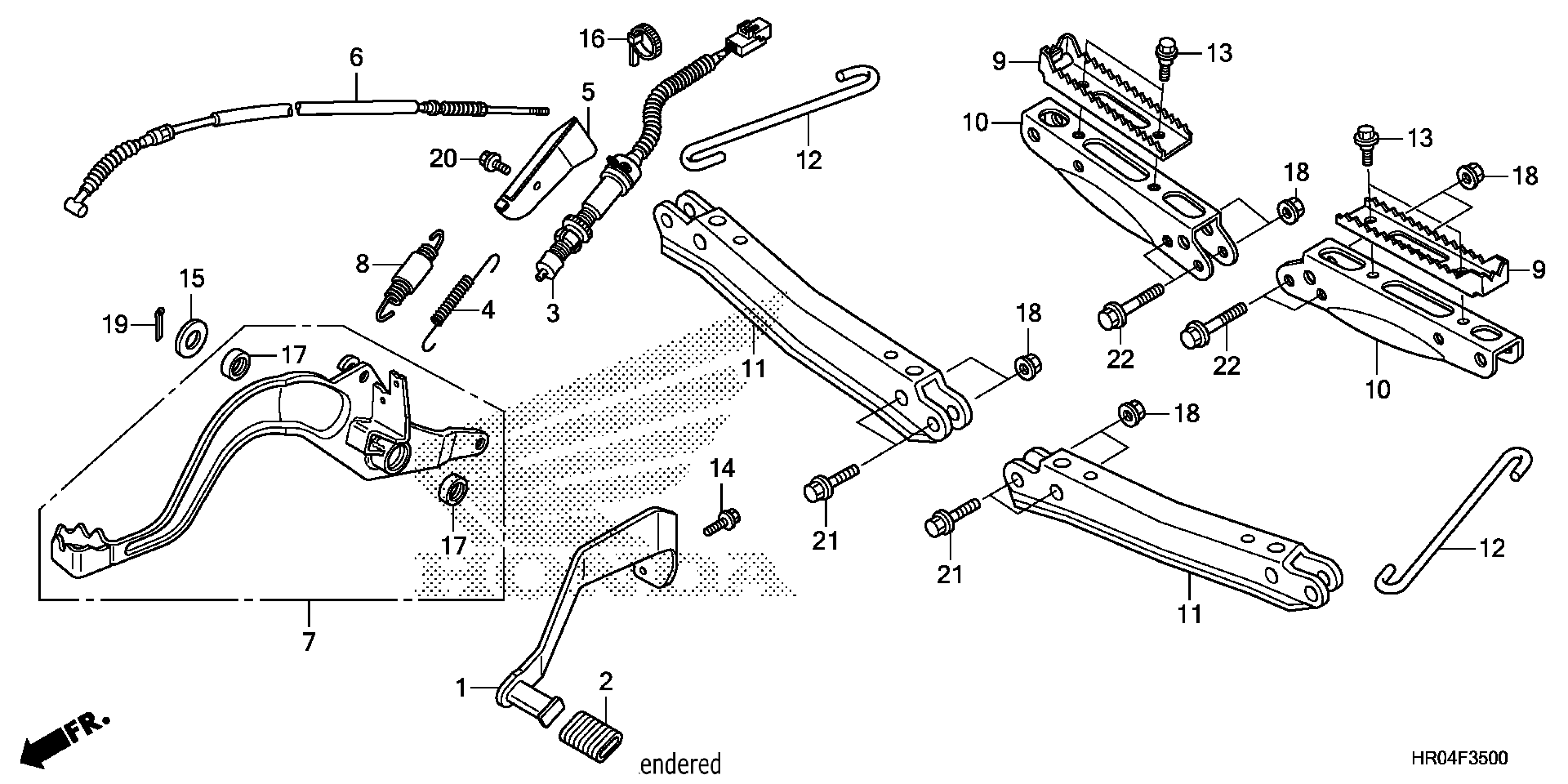

Honda TRX500FPMAC (13) FOREMAN 4X4 W/EPS, USA, VIN# 1HFTE38F-D4100001 PEDAL@STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-HR0-F00

$34.24

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

SWITCH ASSY., RR. STOP

35350-HR0-F01

$59.52

4

SPRING, STOP SWITCH

35357-HR0-F00

$1.49

5

GUARD, RR. STOP SWITCH

35359-HR0-F00

$2.62

6

CABLE, FOOT BRAKE

43470-HR0-F01

$6.36

7

PEDAL ASSY., BRAKE

46510-HP5-600

$165.26

8

SPRING ASSY., RR. BRAKE PEDAL

46513-HP5-600

$8.57

9

STEP

50610-HP5-000

$24.36

10

BRACKET, STEP

50611-HN8-000

$29.84

11

BRACKET, CENTER SPLASH GUARD

50613-HP5-600

$29.01

12

STAY, CENTER SPLASH GUARD

61107-HP5-600

$2.84

13

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

14

BOLT, FLANGE (6X20)

90118-968-000

$4.24

15

WASHER (17.5MM)

90512-303-000

$1.77

16

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

17

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

17

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

18

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

19

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

20

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

21

BOLT, FLANGE (8X30)

95801-08030-00

$1.57

22

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
