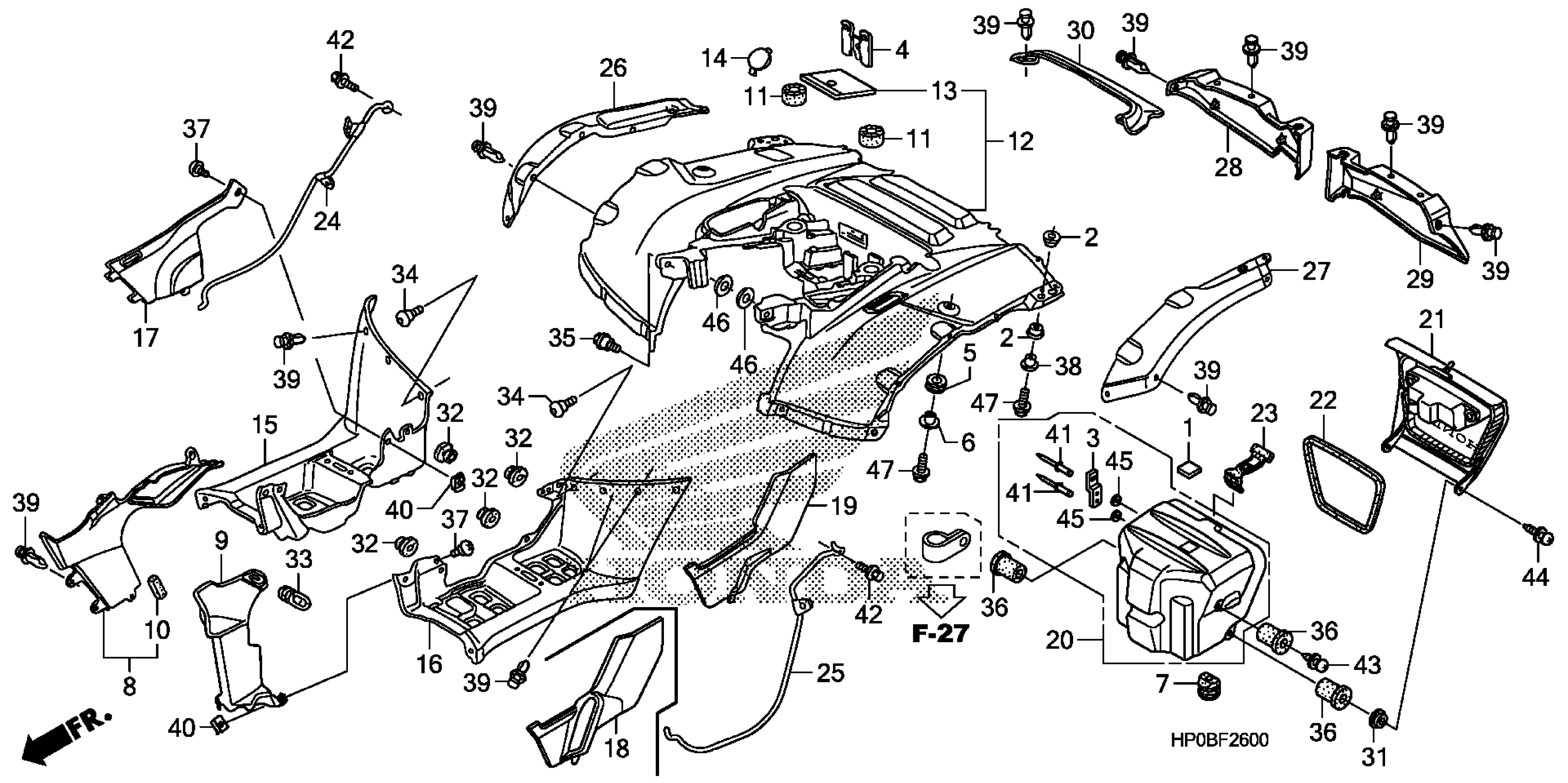

Honda TRX500FPMA (11) FOREMAN, USA, VIN# 1HFTE31F-B4600001 REAR FENDER Diagram

#

Description
Price

1

CUSHION, AIR CLEANER HOUSING

17209-GAJ-900

$2.66

2

RUBBER, TAILLIGHT SETTING

33718-GE2-690

$4.62

3

STAY A, CONNECTOR

50327-HN5-670

$3.90

4

STAY, FUSE CONNECTOR

50328-HN2-000

$1.57

5

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

6

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

7

PLUG, FR. FENDER

61105-KA8-000

$1.49

8

GUIDE, R. ENGINE AIR *NH1* (BLACK)

61880-HP0-A00ZA

$25.97

9

GUIDE, L. FR. ENGINE AIR *NH1* (BLACK)

61895-HP0-A00ZA

$195.08

10

SEAL C, HEADLIGHT

64236-MR8-610

$5.98

11

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

12

FENDER, RR. *G152* (ADVENTURE GREEN) | Adventure green G152;

80100-HP0-H50ZA

Unavailable

12

FENDER, RR. *R232* (PATRIOT RED) | Patriot red R232;

80100-HP0-H50ZC

$197.64

13

RUBBER, BATTERY MOUNTING

80102-HP0-A00

$8.51

14

LID, R. RR. FENDER *G152* (ADVENTURE GREEN) | Adventure green G152;

80110-HP0-A00ZA

$34.72

14

LID, R. RR. FENDER *R232* (PATRIOT RED) | Patriot red R232;

80110-HP0-A00ZB

$36.30

15

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HP0-A00ZA

$114.67

16

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HP0-A00ZA

$127.99

17

SUB-COVER, R. ENGINE *NH1* (BLACK)

80123-HP0-A00ZA

$18.10

18

SUB-COVER, L. ENGINE *NH1* (BLACK)

80124-HP0-A00ZA

$70.83

20

BOX, UTILITY

80210-HP0-A50

$84.28

21

LID, TOOL BOX *NH1* (BLACK)

80211-HP0-A50ZA

$13.96

22

SEAL, UTILITY BOX

80212-HP0-A50

$13.05

23

BAND, TOOL BOX

80214-HM5-850

$2.56

24

STAY, R. RR. FENDER

80217-HP0-A00

$18.98

25

STAY, L. RR. FENDER

80218-HP0-A00

$14.51

26

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HP0-A00ZA

$43.03

27

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HP0-A00ZA

$43.03

28

SPLASH GUARD, R. RR. *NH1* (BLACK)

80250-HP0-A50ZA

$59.88

29

SPLASH GUARD, L. RR. *NH1* (BLACK)

80251-HP0-A50ZA

$42.84

30

LID, RR. FENDER *G152* (ADVENTURE GREEN) | Adventure green G152;

80311-HP0-A00ZA

$20.20

30

LID, RR. FENDER *R232* (PATRIOT RED) | Patriot red R232;

80311-HP0-A00ZB

$28.60

31

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

32

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

33

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

34

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

35

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

36

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

37

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.18

38

COLLAR (6.3X13.5)

90503-KE1-000

$4.48

39

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

40

NUT, CLIP (5MM)

90677-KAN-961

$4.07

41

RIVET, POP (3.2X12.7)

90841-HN2-000

$1.49

42

BOLT-WASHER (6X16)

93404-06016-07

$1.55

43

SCREW-WASHER (5X16)

93891-05016-08

$1.49

44

SCREW-WASHER (5X20)

93894-05020-08

$1.49

45

WASHER, PLAIN (3MM)

94101-03800

$1.49

46

WASHER, PLAIN (8MM)

94103-08800

$1.49

47

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
