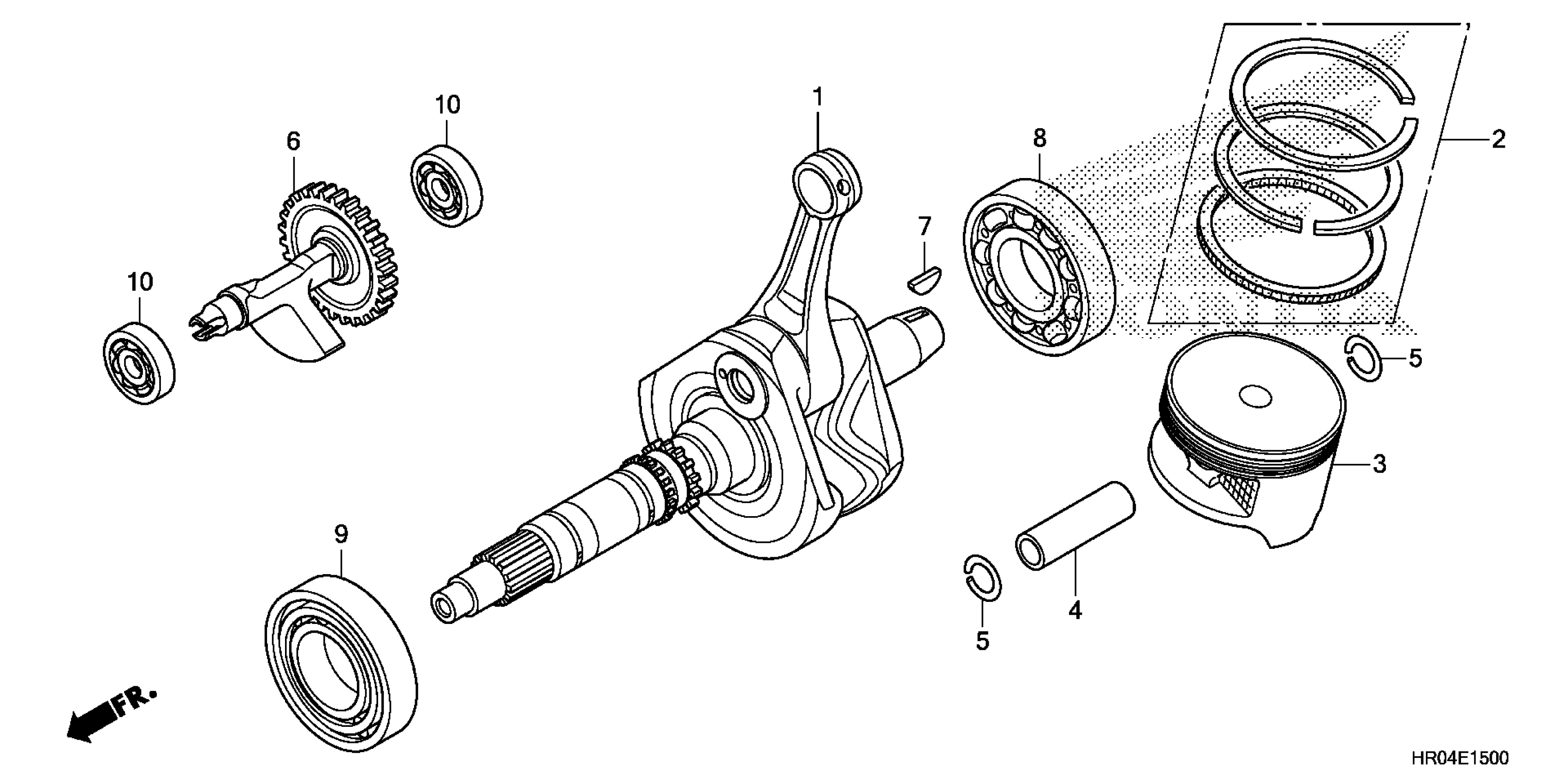

Honda TRX500FPM2AC (13) FOREMAN 4X4 W/EPS, USA, VIN# 1HFTE38G-D4100001 CRANKSHAFT@PISTON Diagram

CRANKSHAFT

13000-HR0-F00

$671.45

RING SET, PISTON (STD)

13010-HP0-A01

$50.19

RING SET, PISTON (0.25) | (Optional).

13011-HP0-A01

$49.83

RING SET, PISTON (0.50) | (Optional).

13012-HP0-A01

$51.31

PISTON (STD.)

13101-HR0-F00

$82.66

PISTON (O.S. 0.25) | (Optional).

13102-HR0-F00

$52.53

PISTON (O.S. 0.50) | (Optional).

13103-HR0-F00

$52.50

PIN, PISTON

13111-HP5-600

$20.27

CLIP, PISTON PIN (19MM)

13112-MAT-000

$1.93

SHAFT, BALANCER (32T)

13420-HP5-600

$211.38

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$2.81

BEARING, RADIAL BALL

91001-HM7-008

$50.81

BEARING, RADIAL BALL (40X85X18)

91002-HP5-601

$41.14

BEARING, RADIAL BALL (6203)

96100-62033-00

$8.98
