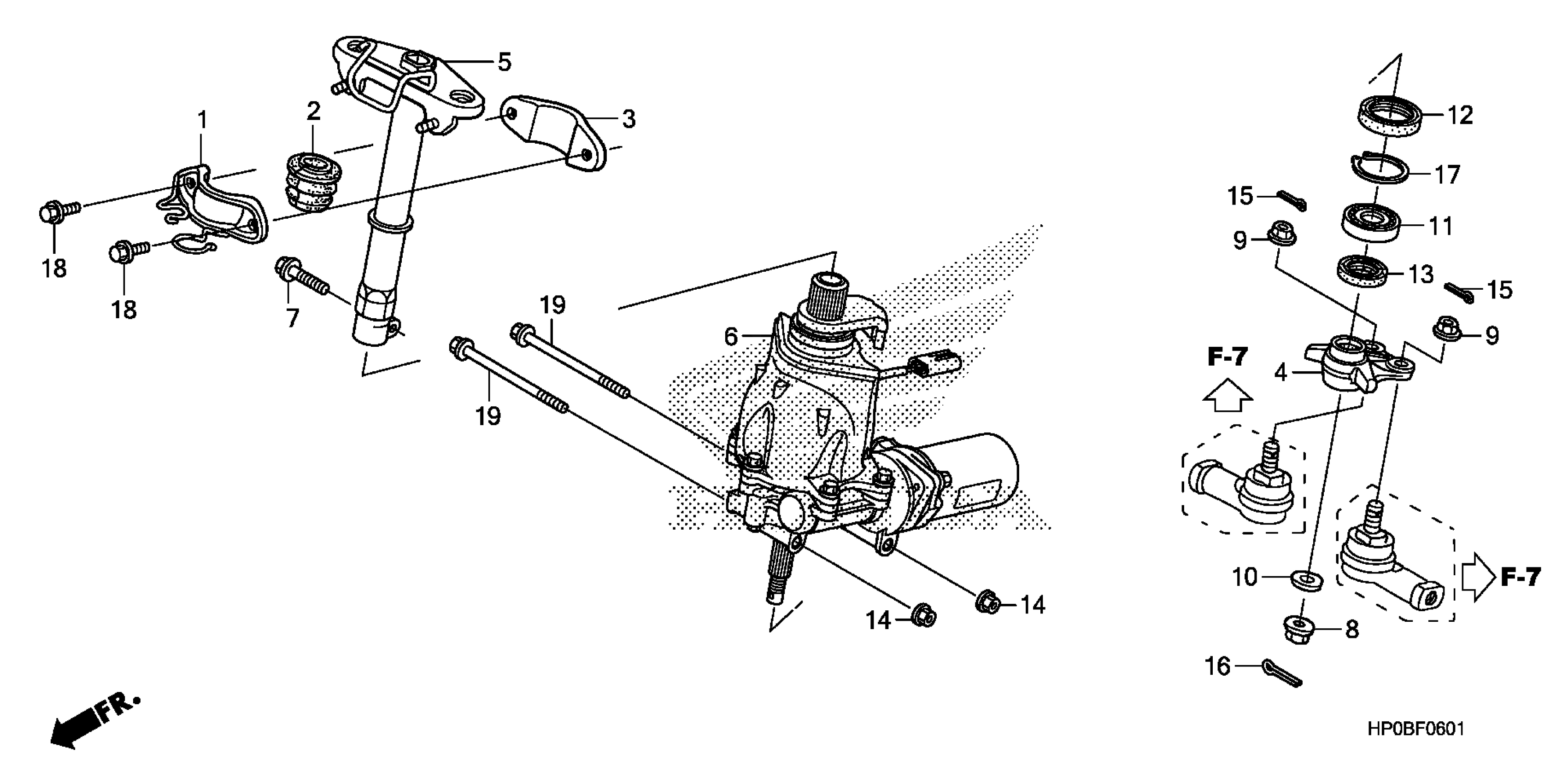

Honda TRX500FPE2A (11) FOREMAN ES, USA, VIN# 1HFTE31J-B4600001 STEERING SHAFT (POWER STEERING) (TRX500FPM/FPE) Diagram

HOLDER, STEERING SHAFT

53220-HP0-A00

$18.26

BUSH, STEERING

53221-HP0-B01

$15.33

HOLDER, STEERING SHAFT

53223-HP0-A00

$21.68

ARM, STEERING

53235-HP0-B00

$24.69

SHAFT, STEERING

53310-HP0-B00

$450.49

POWER STEERING UNIT ASSY. (EPS) (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

53600-HN2-B70

$1,306.96

BOLT, FLANGE (10X35)

90102-GEZ-000

Unavailable

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.67

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.01

WASHER, THRUST (14MM)

90402-HA0-000

$3.59

BEARING, SELF-ALIGNING BALL

91051-HP0-B01

$32.08

DUST SEAL (38X54X7)

91251-HP0-B02

$7.36

DUST SEAL (27X40X5)

91252-HP0-B01

$5.57

NUT, FLANGE (8MM)

94050-08000

$0.87

PIN, SPLIT (2.0X22)

94201-20220

$0.96

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.96

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.96

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.96

PIN, SPLIT (2.0X35)

94201-20350

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

PIN, SPLIT (3.0X45)

94201-30450

$0.96

CIRCLIP (INNER) (47MM)

94521-47000

$2.21

BOLT, FLANGE (8X16)

95701-08016-07

$1.62

BOLT, FLANGE (8X100) (NOT AVAILABLE)

95801-08100-00

Unavailable
