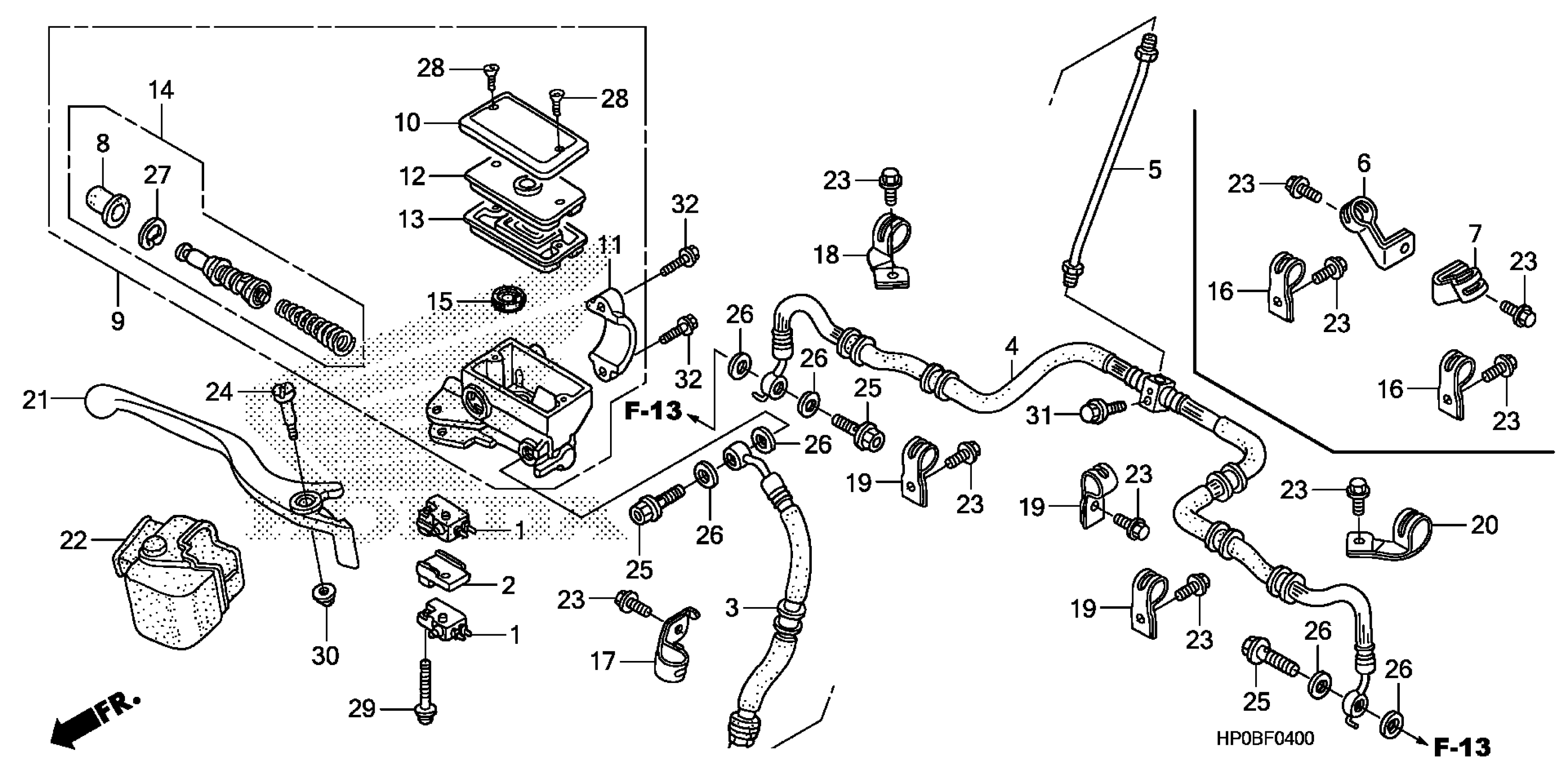

Honda TRX500FPE2A (11) FOREMAN ES, USA, VIN# 1HFTE31J-B4600001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

2

SPACER, FR. STOP SWITCH

35343-HN2-740

$3.67

3

HOSE A, FR. BRAKE

45126-HN2-B71

$18.45

4

HOSE B, FR. BRAKE

45127-HP0-B01

$74.02

5

PIPE, FR. BRAKE

45128-HP0-B00

$5.15

6

CLAMP B, R. FR. BRAKE HOSE

45462-HP0-B00

$1.16

7

CLAMP B, L. FR. BRAKE HOSE

45472-HP0-B00

$1.16

8

BOOT

45504-410-003

$12.16

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-HN8-305

$100.68

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-HP0-A51.

45510-HN8-305

$100.68

10

CAP, MASTER CYLINDER

45513-MB4-673

$47.89

11

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

12

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

13

DIAPHRAGM

45520-MA5-672

$18.13

14

MASTER CYLINDER SET

45530-HN8-006

$14.22

15

SEPARATOR

46666-HB9-006

$9.38

16

CLAMP C, FR. BRAKE HOSE

51205-HP0-B00

$0.90

17

CLAMP B, FR. BRAKE HOSE

51206-HP0-A00

$1.49

18

CLAMP A, R. FR. BRAKE HOSE

51207-HP0-A00

$1.49

20

CLAMP A, L. FR. BRAKE HOSE

51209-HP0-A00

$1.49

21

LEVER, R. HANDLE

53175-HP0-A00

$22.26

22

COVER, R. HANDLE

53176-HN8-000

$7.82

23

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

24

BOLT, HANDLE LEVER

90114-HP0-A51

$1.49

25

BOLT, OIL (10X22)

90145-MS9-612

$7.54

26

WASHER, OIL BOLT

90545-300-000

$3.99

27

CIRCLIP

90651-MA5-671

$2.66

28

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

28

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

29

SCREW-WASHER (4X30)

93893-04030-07

$1.49

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

32

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
