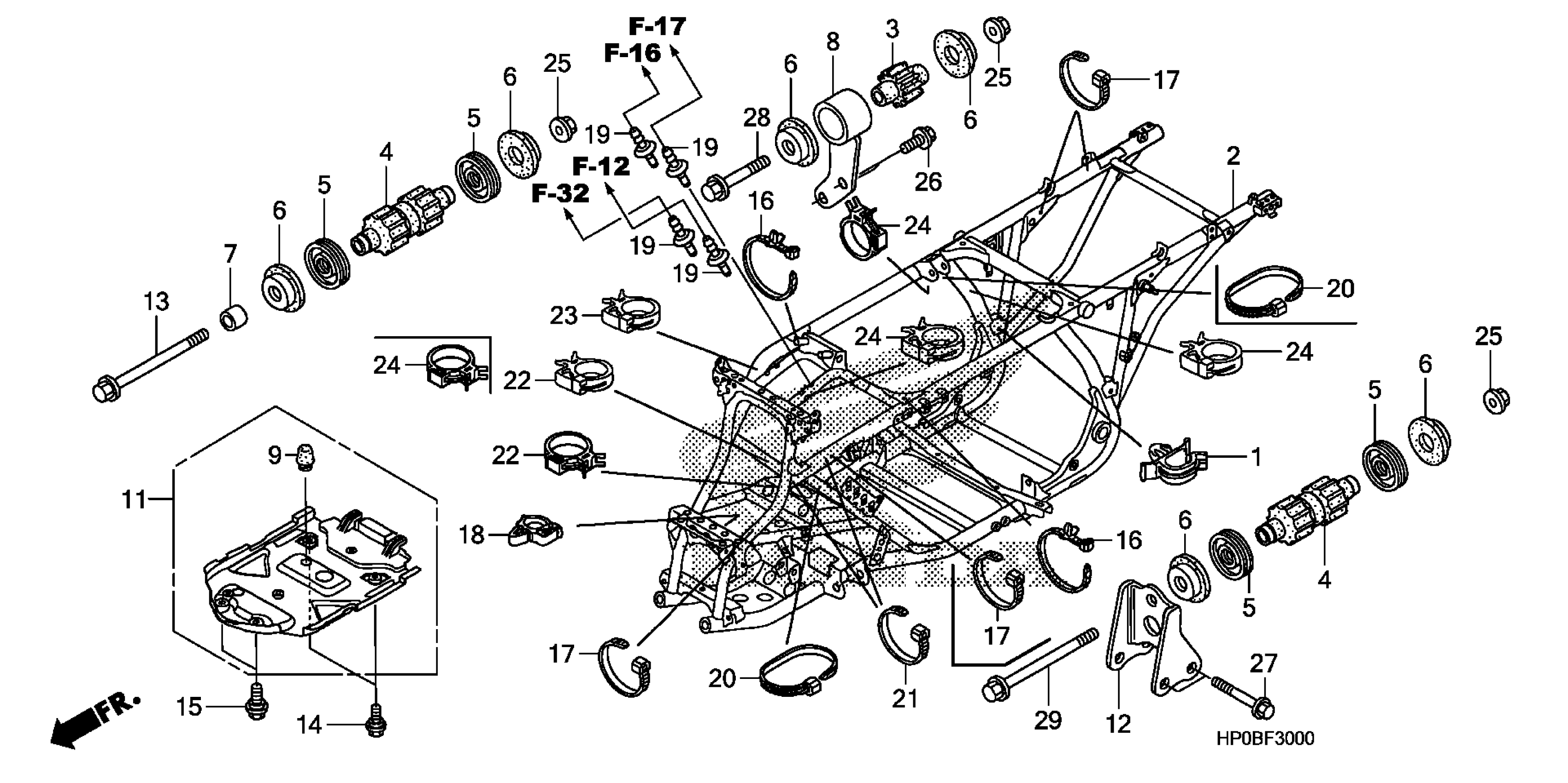

Honda TRX500FPE2A (11) FOREMAN ES, USA, VIN# 1HFTE31J-B4600001 FRAME Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32161-393-003

$2.80

2

FRAME

50100-HP0-H50

Unavailable

3

RUBBER, ENGINE HEAD MOUNTING

50201-HN2-000

$12.35

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$22.64

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$18.33

6

RUBBER C, MOUNTING

50204-HM7-003

$19.10

7

COLLAR, ENGINE HANGER

50205-HM8-000

$7.60

8

PLATE, HEAD HANGER

50351-HP0-A00

Unavailable

9

RUBBER A, STOPPER

50352-HM5-730

$19.51

11

GUARD ASSY., ENGINE

50360-HP0-H10

$35.39

12

HANGER, ENGINE (LOWER)

50363-HP0-A00

$5.57

13

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.11

14

BOLT, FLANGE (6MM)

90113-GF0-000

$3.93

15

BOLT, FLANGE (8X18)

90186-GBC-000

$1.01

16

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.41

17

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

18

CLAMP, HARNESS

90652-HC4-003

$5.54

19

JOINT, BREATHER TUBE

90652-HF7-003

$8.54

20

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

21

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.39

22

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

23

CLIP, CABLE (25MM)

90690-GHB-671

$1.99

24

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

25

NUT, FLANGE (10MM)

94050-10000

$1.41

26

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

27

BOLT, FLANGE (8X60)

95701-08060-00

$1.38

28

BOLT, FLANGE (10X60)

95701-10060-00

$1.80

29

BOLT, FLANGE (10X120)

95801-10120-00

$4.52
