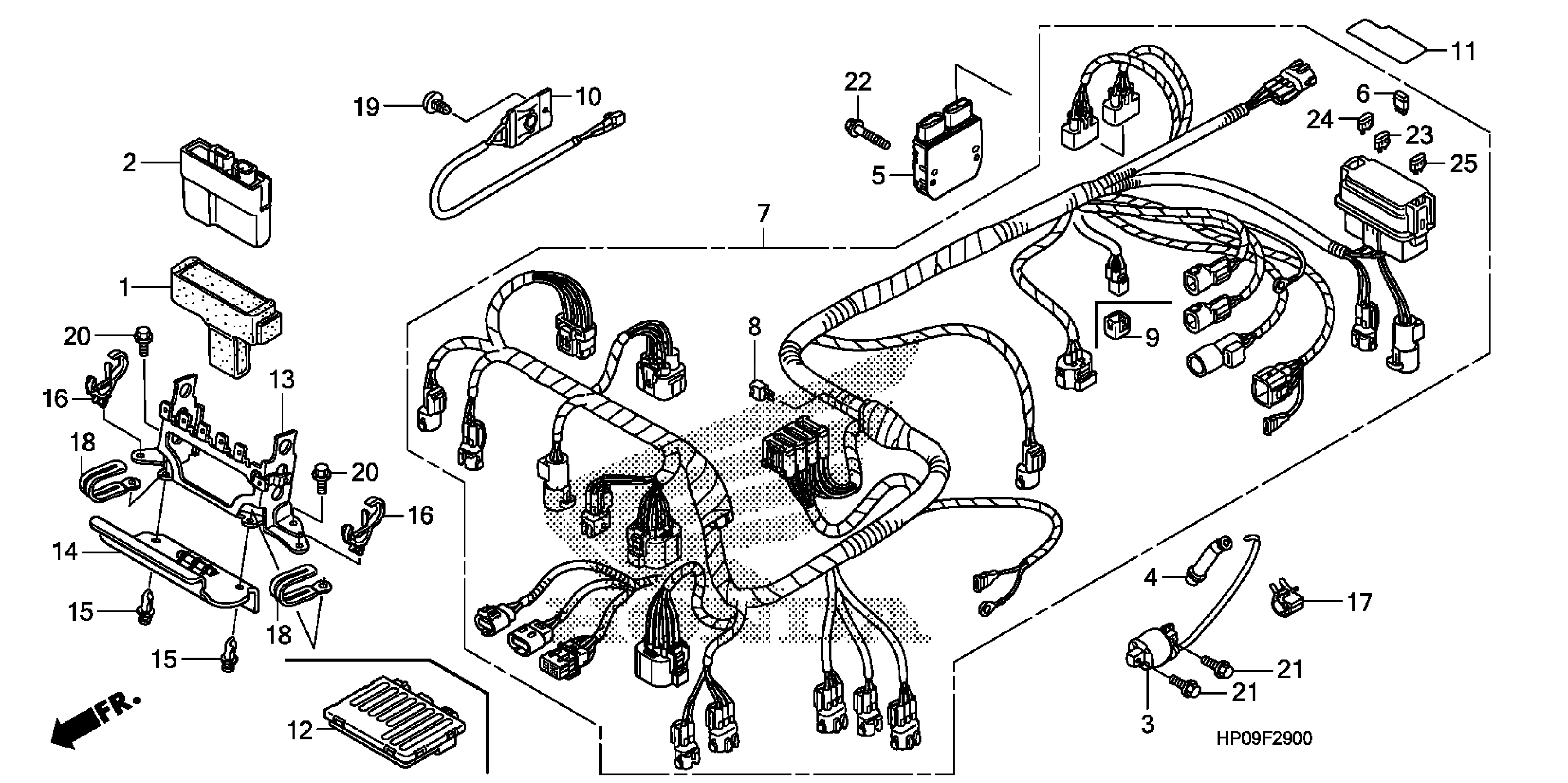

Honda TRX500FPE2A (09) FOREMAN P/S ES, USA, VIN# 1HFTE31J-94400001 TO 1HFTE31J-94499999 WIRE HARNESS Diagram

CUSHION, C.D.I. & CHANGE UNIT

30401-HP0-A10

$20.39

CONTROL UNIT, C.D.I. & CHANGE

30410-HP0-B91

Unavailable

COIL ASSY., IGNITION

30500-HP0-A71

$47.18

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$27.80

RECTIFIER ASSY., REGULATOR

31600-HP0-A01

$127.69

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS This part replaces 32100-HP0-E30.

32100-HP0-E31

$992.75

WIRE HARNESS

32100-HP0-E31

$992.75

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.52

SWITCH ASSY., THERMOSTAT

35250-HN4-670

$48.08

EPS UNIT

39980-HP0-H51

$543.97

STAY, ENGINE CONTROL UNIT

50269-HP0-A00

$77.93

GUARD, ENGINE CONTROL UNIT HEAT

50271-HP0-A50

$7.23

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, HARNESS

90684-ZA0-601

$2.93

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, WIRE HARNESS

91404-VM6-000

$6.25

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
