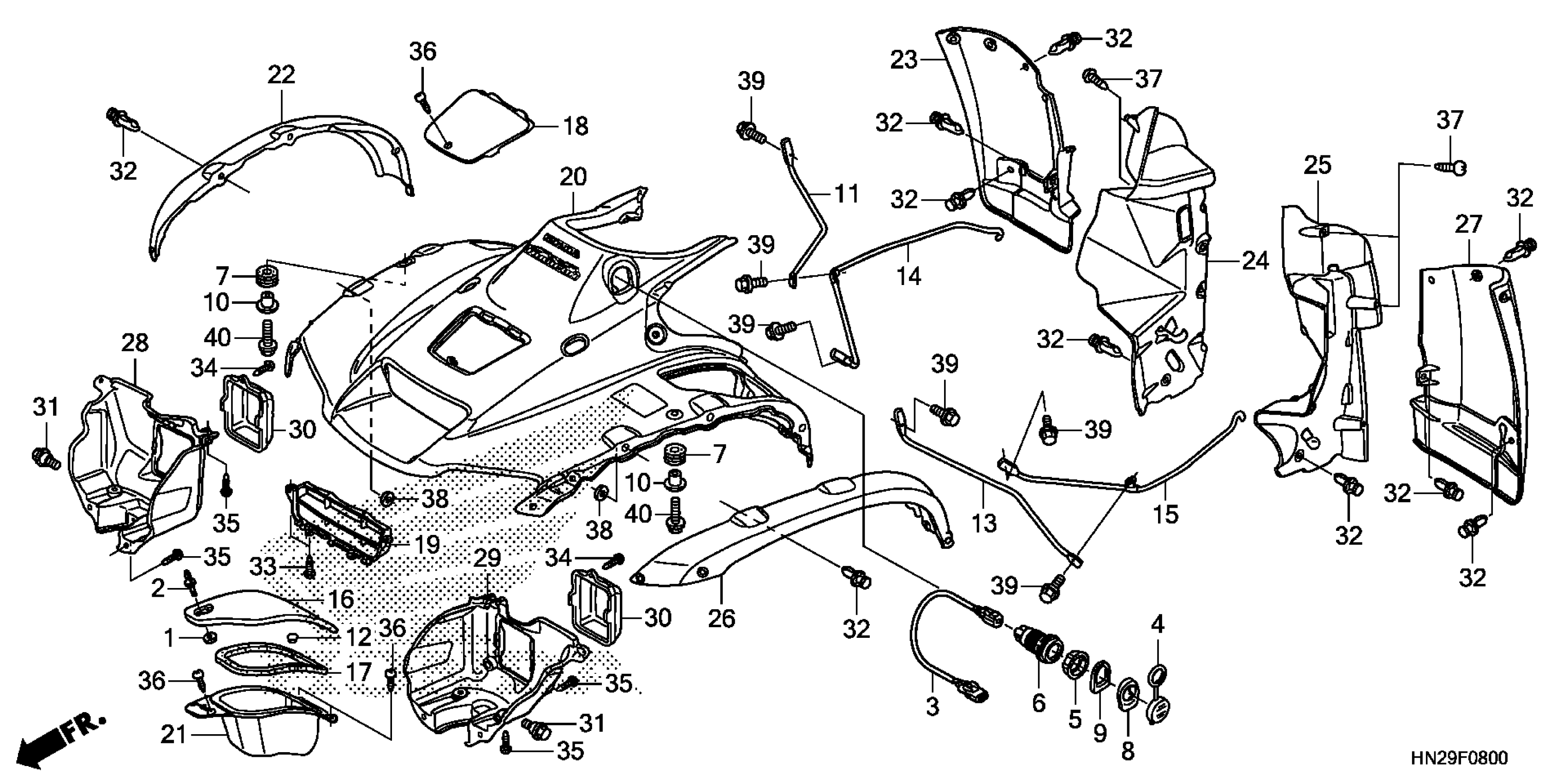

Honda TRX500FPAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE26E-E4400001 FRONT FENDER Diagram

#

Description
Price

1

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.24

1

RETAINER (6MM)

64509-KE8-701

$2.28

2

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.67

2

STUD (6X21)

17225-KN5-671

$6.67

3

SUB-HARNESS, ACCESSORY

31651-HP0-A70

$11.88

4

CAP

31652-HP0-A01

$2.00

5

NUT

31653-HP0-A01

$1.25

6

SOCKET, ACCESSORY

31655-HP0-A01

$21.53

7

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

8

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.04

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.43

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.28

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.28

11

STAY, R. FR. FENDER

61105-HP0-A00

$83.13

12

PLUG, FR. FENDER

61105-KA8-000

$1.34

13

STAY, L. FR. FENDER

61106-HP0-A00

$33.00

14

STAY, R. CENTER SPLASH GUARD SIDE

61107-HP0-A00

$68.68

15

STAY, L. CENTER SPLASH GUARD SIDE

61108-HP0-A00

$68.68

16

LID, GLOVE BOX *G152* (ADVENTURE GREEN) | Adventure green G152;

61120-HP0-A00ZA

$15.10

16

LID, GLOVE BOX *R232* (PATRIOT RED) | Patriot red R232;

61120-HP0-A00ZB

$10.15

16

LID, GLOVE BOX *NH196* (ROSS WHITE) | Ross white NH196;

61120-HP0-A00ZF

$42.35

17

SEAL, GLOVE BOX

61122-HP0-A00

$3.47

18

LID, FR. FENDER *G152* (ADVENTURE GREEN) | Adventure green G152;

61130-HP0-A00ZA

$27.36

18

LID, FR. FENDER *R232* (PATRIOT RED) | Patriot red R232;

61130-HP0-A00ZB

$27.34

18

LID, FR. FENDER *NH196* (ROSS WHITE) | Ross white NH196;

61130-HP0-A00ZF

$29.19

19

GUIDE, FR. AIR *G152* (ADVENTURE GREEN) | Adventure green G152;

61140-HP0-A00ZA

$572.75

19

GUIDE, FR. AIR *R232* (PATRIOT RED) | Patriot red R232;

61140-HP0-A00ZB

$482.51

19

GUIDE, FR. AIR *NH196* (ROSS WHITE) | Ross white NH196;

61140-HP0-A00ZF

$529.78

20

FENDER SET, FR. *G152* (WL) (ADVENTURE GREEN)

61150-HN2-B70ZA

$185.24

20

FENDER SET, FR. *R232* (WL) (PATRIOT RED)

61150-HN2-B70ZC

$188.34

20

FENDER SET, FR. *G152* (WL) (ADVENTURE GREEN) | Adventure green G152; This part replaces 61150-HN2-B70ZD.

61150-HN2-B70ZA

$185.24

20

FENDER SET, FR. *R232* (WL) (PATRIOT RED) | Patriot red R232; This part replaces 61150-HN2-B70ZE.

61150-HN2-B70ZC

$188.34

20

FENDER SET, FR. (TYPE1) (WL) | Ross white NH196;

61150-HN2-K30ZA

$105.00

21

BOX, GLOVE

61150-HP0-A00

$14.04

22

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HP0-A00ZA

$35.44

23

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61862-HP0-A00ZA

$128.22

24

FENDER, R. FR.

61863-HP0-A00

$96.78

25

FENDER, L. FR.

61864-HP0-A00

$96.78

26

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HP0-A00ZA

$68.67

27

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61868-HP0-A00ZA

$111.45

28

COVER, R. HEADLIGHT

66301-HP0-A00

$10.88

29

COVER, L. HEADLIGHT

66302-HP0-A00

$10.88

30

CAP, HEADLIGHT TAIL

66303-HN5-670

$4.28

31

BOLT, FLANGE (6MM)

90111-162-000

$2.66

32

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

33

SCREW, TAPPING (4X10)

93903-24220

$0.84

34

SCREW, TAPPING (4X12)

93903-24320

$0.84

35

SCREW, TAPPING (5X12)

93903-25220

$0.84

36

SCREW, TAPPING (5X12)

93903-25280

$1.25

37

SCREW, TAPPING (6X16)

93904-26210

$0.56

38

WASHER, PLAIN (8MM)

94103-08800

$0.87

39

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

40

BOLT, FLANGE (6X22)

95701-06022-00

$1.66
