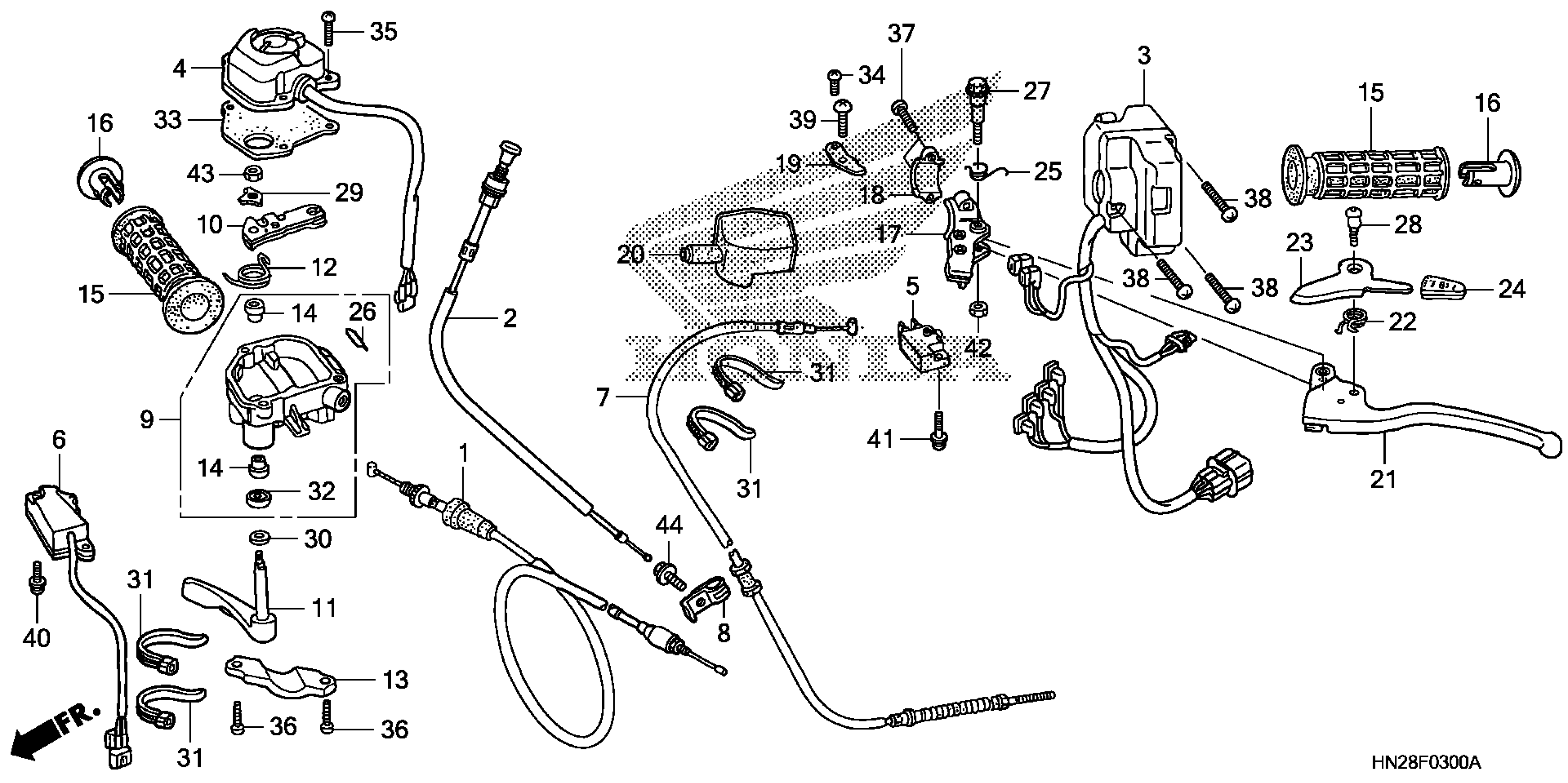

Honda TRX500FPAA (11) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE26E-B4100001 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP0-A00

$31.77

2

CABLE, CHOKE

17950-HP0-A00

$8.27

3

SWITCH ASSY., L. HANDLE This part replaces 35140-HN2-B00.

35140-HN2-B01

$98.80

4

SWITCH ASSY., MODE SELECT

35300-HN2-B41

Unavailable

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

6

SWITCH ASSY., SELECT (2WD/4WD)

35400-HP0-A71

$21.68

7

CABLE, HAND BRAKE

43460-HP0-A00

$15.68

8

CLAMP, BRAKE CABLE

50352-HN2-000

$0.88

9

CASE ASSY., THROTTLE LEVER

53143-HN0-305

$43.30

10

ARM, THROTTLE

53144-HA0-010

$7.18

11

LEVER, THROTTLE

53145-HA0-770

$21.43

11

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

12

SPRING, THROTTLE RETURN

53146-HM8-000

$2.88

13

HOLDER, THROTTLE CASE

53147-HN0-670

$12.64

14

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.45

15

GRIP, HANDLE

53165-HP5-600

$3.46

16

GUARD, HANDLE END

53167-HP5-600

$2.12

17

BRACKET, BRAKE LEVER

53172-HN8-000

$25.82

18

HOLDER, LEVER BRACKET

53173-376-000

$9.82

19

STAY, PARKING BRAKE STOPPER

53174-HN8-000

$5.10

20

COVER, L. HANDLE LEVER

53177-HN8-000

$3.08

21

LEVER, L. HANDLEBAR

53178-HN8-010

$17.31

22

SPRING, PARKING BRAKE LEVER

53191-HN8-000

$2.35

23

LEVER, PARKING BRAKE LOCK

53192-HN8-000

$6.81

24

CAP, PARKING LEVER

53193-HA0-770

$5.73

25

SPRING, RETURN LEVER

53193-HN8-000

$2.70

26

MARK, SELECT (2WD/4WD)

87516-HN0-670

$13.57

27

BOLT, HANDLE LEVER PIVOT

90114-HN8-000

$3.44

28

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.80

29

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

30

WASHER (9X20)

90504-HA0-000

$2.07

31

BAND, WIRE HARNESS

90651-MA6-720

$3.47

32

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.66

32

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.66

33

GASKET, THROTTLE CASE

91532-HN8-000

$2.93

34

SCREW, PAN (4X8)

93500-04008-0G

$0.83

35

SCREW, PAN (4X16)

93500-04016-0G

$0.75

36

SCREW, PAN (5X14)

93500-05014-0G

$3.32

37

SCREW, PAN (5X18)

93500-05018-0G

$0.42

38

SCREW, PAN (5X28)

93500-05028-0G

$0.62

39

SCREW, PAN (6X16)

93500-06016-0G

$0.86

40

SCREW-WASHER (4X12)

93891-04012-07

$1.04

41

SCREW-WASHER (4X16)

93893-04016-07

$1.22

42

NUT, HEX. (6MM)

94001-06070-0S

$1.19

43

NUT, HEX. (6MM)

94002-06000-0S

$1.19

44

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81
