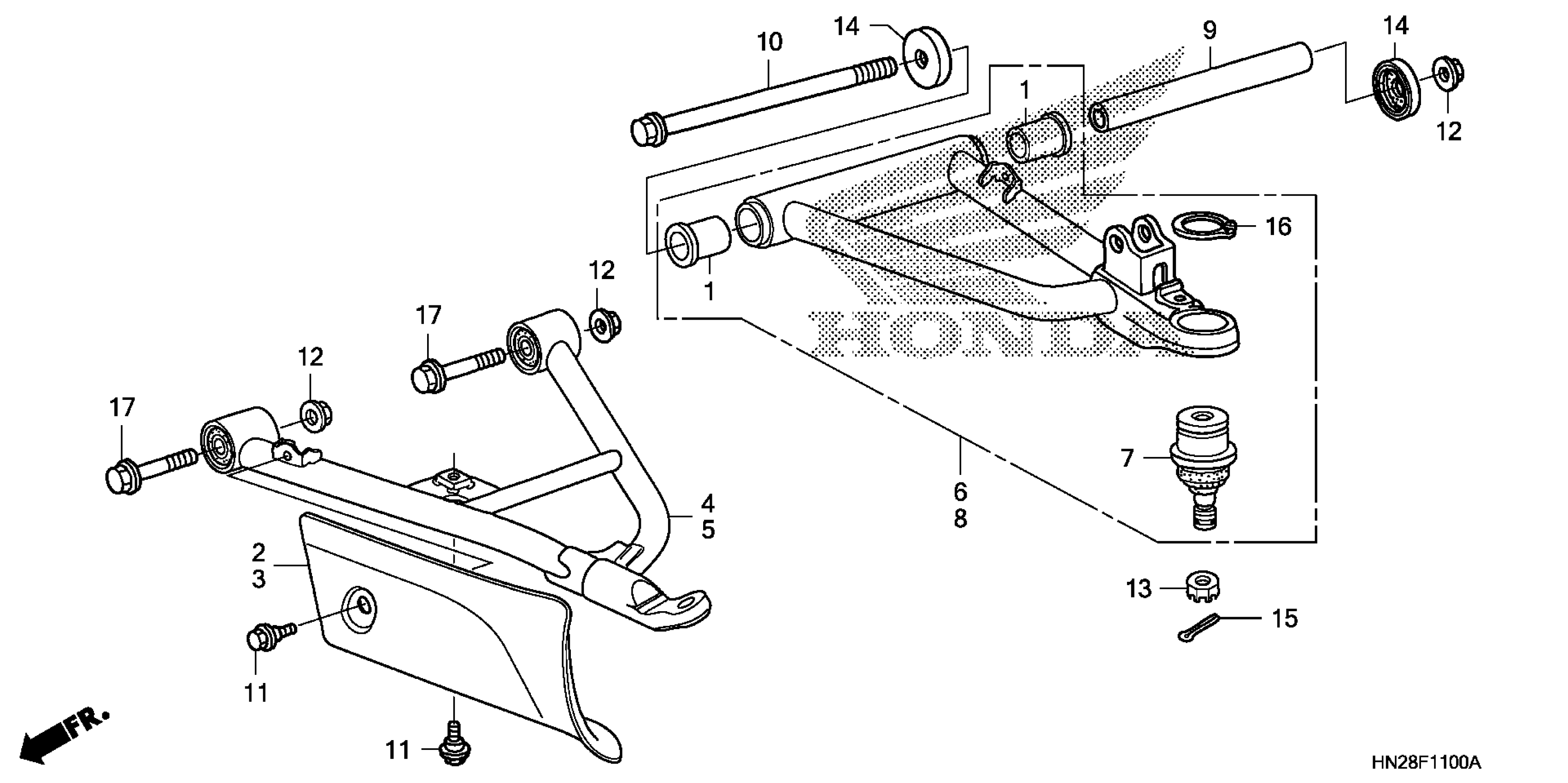

Honda TRX500FPAA (11) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE26E-B4100001 FRONT ARM Diagram

BUSH, ARM (UPPER)

51108-HP0-A00

$15.34

GUARD, R. FR. INBOARD

51315-HN2-B70

$8.31

GUARD, L. FR. INBOARD

51316-HN2-B70

$8.31

ARM ASSY., R. FR. (LOWER)

51350-HP0-A00

$114.13

ARM ASSY., L. FR. (LOWER)

51360-HP0-A00

$116.98

ARM ASSY., R. FR. (UPPER)

51370-HP0-B00

$125.32

JOINT A, ARM BALL

51375-HP5-601

$17.90

ARM ASSY., L. FR. (UPPER)

51380-HP0-B00

$128.46

COLLAR, ARM (UPPER)

51464-HN2-000

$10.46

BOLT, ENGINE HANGER

90103-162-000

$10.93

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) (FOR FR.)

91262-MA0-015

$9.95

PIN, SPLIT (3.0X18)

94201-30180

$0.94

CIRCLIP (OUTER) (34MM)

94514-34000

$1.68

BOLT, FLANGE (10X62) BOLT, FLANGE (10X65)

90151-HC5-000

$7.22

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
