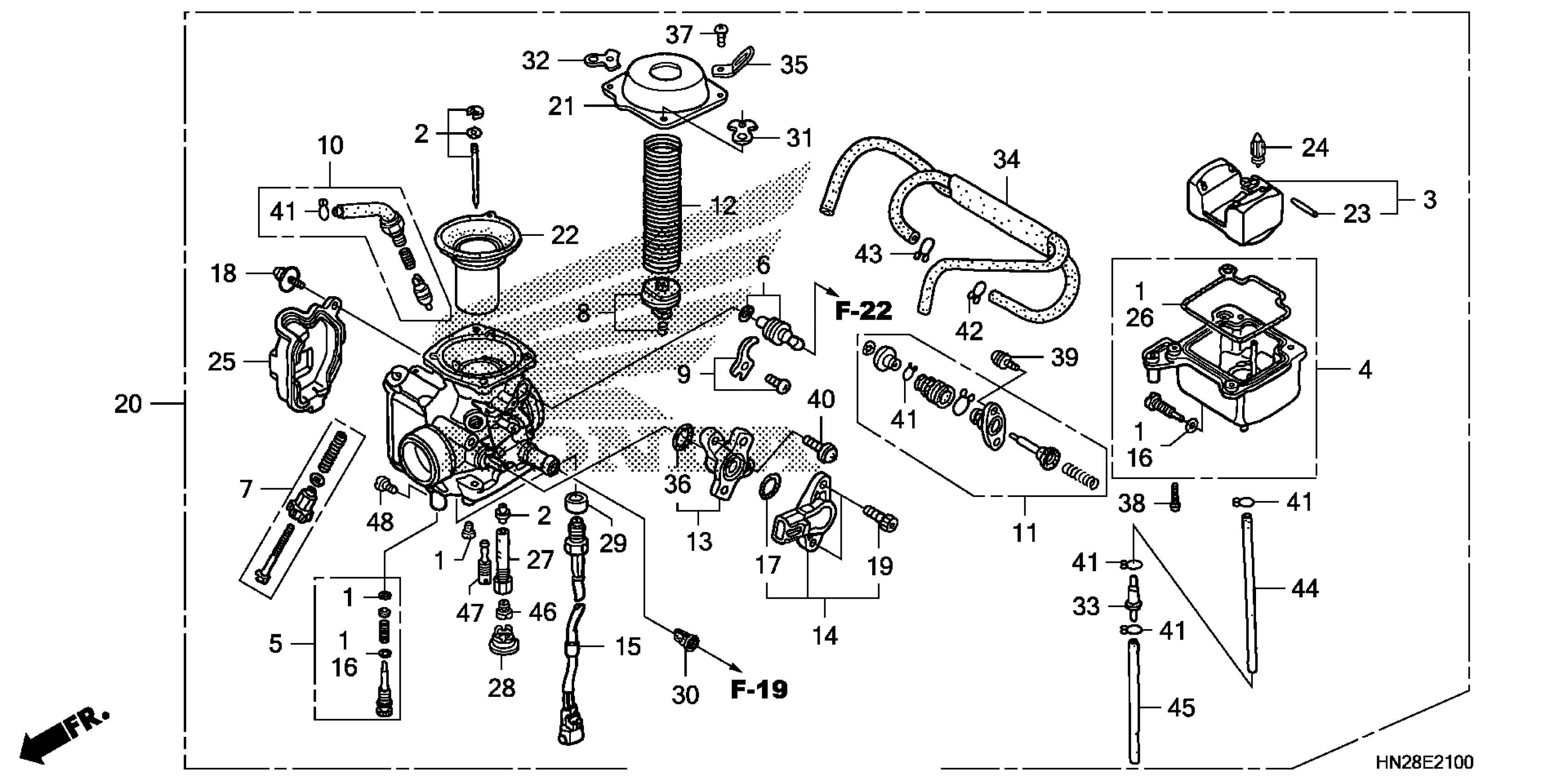

Honda TRX500FPA2A (09) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE26F-94800001 TO 1HFTE26F-94899999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HN7-003

$16.04

2

NEEDLE SET, JET

16012-HN2-A21

$25.16

3

FLOAT SET

16013-HN8-003

$36.12

4

CHAMBER SET, FLOAT

16015-HP0-A01

$35.78

5

SCREW SET

16016-HN2-A21

Unavailable

6

JOINT SET

16026-MR1-004

$37.68

7

SCREW SET

16028-HP0-A01

$19.78

8

PLATE SET, VALVE

16037-HN2-003

$17.72

9

PLATE SET, STAY

16038-HN8-003

Unavailable

10

VALVE, STARTER

16046-HN2-003

$50.94

11

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$80.48

11

PUMP SET

16048-HN7-003

$80.48

12

SPRING, COMPRESSION COIL

16050-HN2-A21

$9.50

13

SPACER SET, THROTTLE SENSOR

16060-HN2-A21

$29.47

14

CARBURETOR ASSY This part replaces 16061-HP0-A01.

16061-HP0-A02

$206.11

15

HEATER ASSY.

16070-HN2-A21

$66.46

16

O-RING (1.3X4.3)

16075-GHB-640

$2.69

17

O-RING

16075-HN2-A21

$2.78

18

SCREW-WASHER

16080-HC0-003

$3.95

19

BOLT, BREAK HEAD

16083-HP0-A01

$5.19

20

CARBURETOR ASSY This part replaces 16100-HN2-A22.

16100-HN2-A25

$300.51

20

CARBURETOR ASSY This part replaces 16100-HN2-305.

16100-HN2-A25

$300.51

21

TOP

16107-HN2-003

$32.97

22

PISTON, VACUUM

16111-HN2-003

$109.94

23

PIN, ARM

16152-HN8-003

$3.90

24

VALVE, FLOAT

16155-HN7-003

$26.51

25

COVER, BODY

16157-HN8-003

$25.25

26

GASKET, FLOAT CHAMBER

16163-MEA-671

$21.27

27

HOLDER, NEEDLE JET

16165-HN2-003

$27.28

28

HOLDER, JET

16168-HC4-003

$9.70

29

COLLAR, SETTING

16172-KEB-610

$3.35

30

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.52

31

BINDER

16178-HP0-A01

$2.01

32

BINDER

16179-HP0-A01

$2.01

33

VALVE, ONE-WAY

16180-HC4-003

$16.54

34

TUBE, AIR VENT

16196-HP0-A01

$8.25

35

CLIP, PLATE

17191-MT2-740

$3.43

36

O-RING (14.8X1.9)

91304-PT0-000

$3.71

37

SCREW, PAN (4X8)

93500-04008-0H

$0.90

37

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.90

38

SCREW, PAN (4X14)

93500-04014-0H

$0.82

38

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.82

39

SCREW-WASHER (4X12)

93892-04012-08

$0.75

39

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.75

40

SCREW-WASHER (5X14)

93892-05014-08

$1.09

40

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.09

41

CLIP, TUBE (B17)

95002-02079

$1.10

42

CLIP, TUBE (B1 8)

95002-02089

$0.96

43

CLIP, TUBE (B6.5)

95002-02659

$1.01

44

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-50M

$13.55

45

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-50M

$13.55

46

JET, MAIN (#158) | (Optional).

99101-HN2-1580

$10.57

46

JET, MAIN (#162)

99101-HP0-1620

$7.14

47

JET, SLOW (#45) This part replaces 99104-HN2-0450.

99104-KPF-0450

$10.89

47

JET, SLOW (#45)

99104-KPF-0450

$10.89

48

JET (#85)

99112-HN2-0850

$15.66
