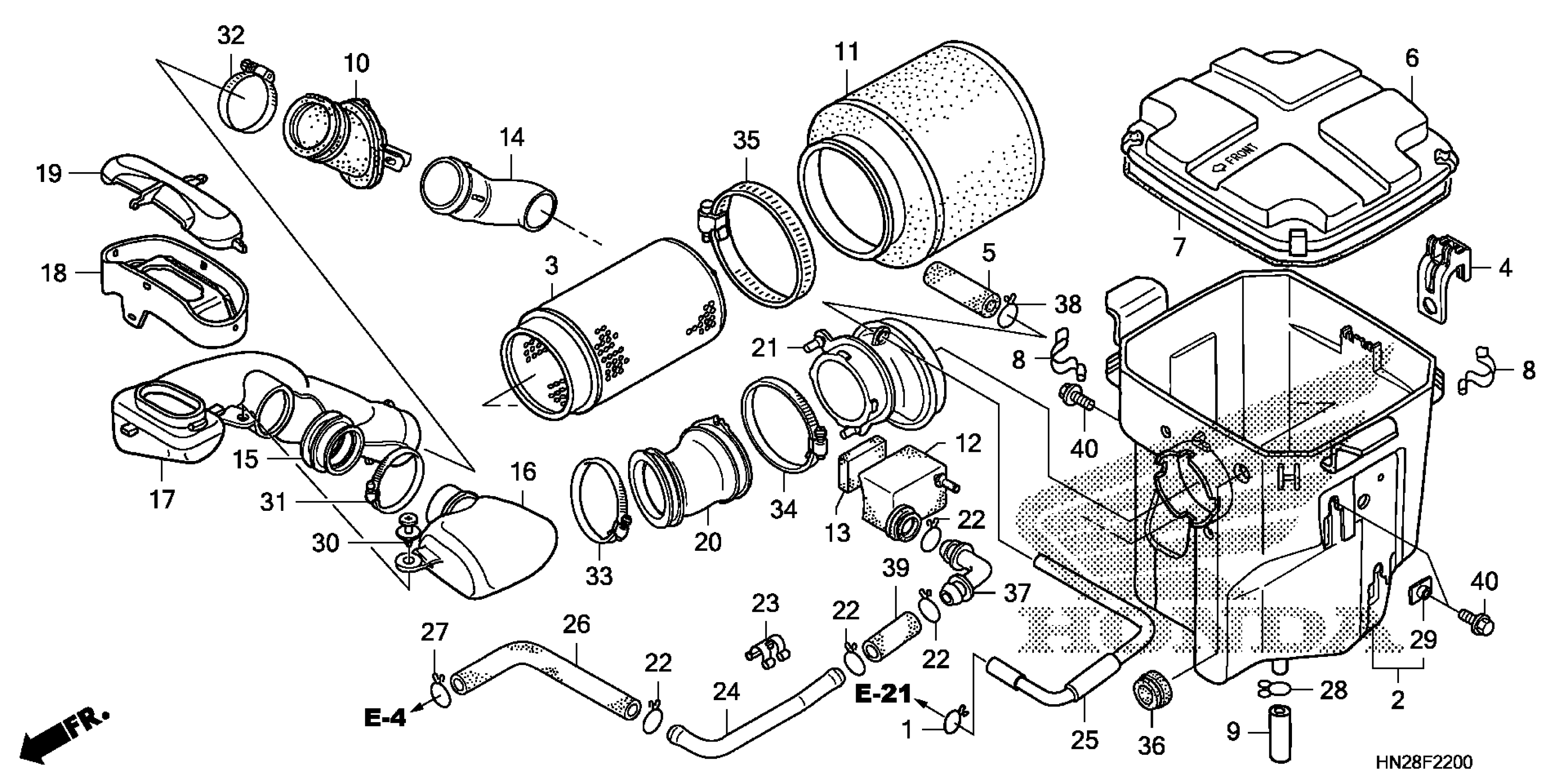

Honda TRX500FPA2A (09) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE26F-94800001 TO 1HFTE26F-94899999 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

2

HOUSING, AIR CLEANER

17210-HN2-A20

$164.64

3

BODY, AIR CLEANER

17211-HP0-A00

$24.18

4

HOLDER, ELEMENT

17212-HP0-A50

$31.51

5

FILTER, SUB-AIR CLEANER

17213-HN2-000

$10.35

6

LID, AIR CLEANER HOUSING

17217-HP0-A00

$155.64

7

SEAL, AIR CLEANER COVER

17219-HN2-000

$36.49

8

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.88

8

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.87

9

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$7.07

10

SEAL, AIR CLEANER DUCT

17252-HP0-A00

$3.55

11

ELEMENT, AIR CLEANER

17254-HP0-A00

$16.75

12

JOINT, BREATHER

17255-HN2-A20

$17.02

13

COVER, DUST

17256-HM5-L00

$12.15

14

DUCT, SNORKEL (INNER)

17256-HN2-A20

$7.81

15

SEAL, RESONATOR

17257-HP0-A00

$5.80

16

RESONATOR, DUCT

17258-HP0-A00

$17.55

17

DUCT, SNORKEL

17259-HP0-A00

$20.09

18

COVER A, SNORKEL

17261-HN8-A00

$15.90

19

COVER B, SNORKEL

17262-HN8-A00

$14.37

20

TUBE, FR. AIR CLEANER CONNECTING

17265-HN2-000

$34.99

21

TUBE, RR.

17266-HP0-A00

$41.67

22

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

23

SPRING, BREATHER PIPE

17335-HN2-A20

$4.63

24

PIPE, BREATHER

17366-HN2-A20

$24.52

25

TUBE, AIR CLEANER

17367-HP0-A00

$2.92

26

TUBE, BREATHER PIPE

17368-HN2-000

$7.82

27

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

28

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

29

NUT, SPECIAL (6X7)

61304-958-003

$3.24

30

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

31

BAND, CONNECTING TUBE (54)

90654-HM8-A60

$7.29

32

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.51

33

BAND, AIR CONNECTING TUBE (66)

90666-HN1-A20

$2.79

34

BAND, AIR CONNECTING TUBE (78)

90678-HN2-830

$4.19

35

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.70

36

RUBBER, TANK CUSHION

90851-898-000

$4.48

37

JOINT, TUBE

91463-MC4-000

$5.90

38

CLIP, TUBE (B12.5)

95002-02130

$1.49

39

BULK HOSE, VACUUM (12X1000) (12X260) (BULK HOSE: 95005-12003-10M)

95005-12001-20M

$34.11

40

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49
