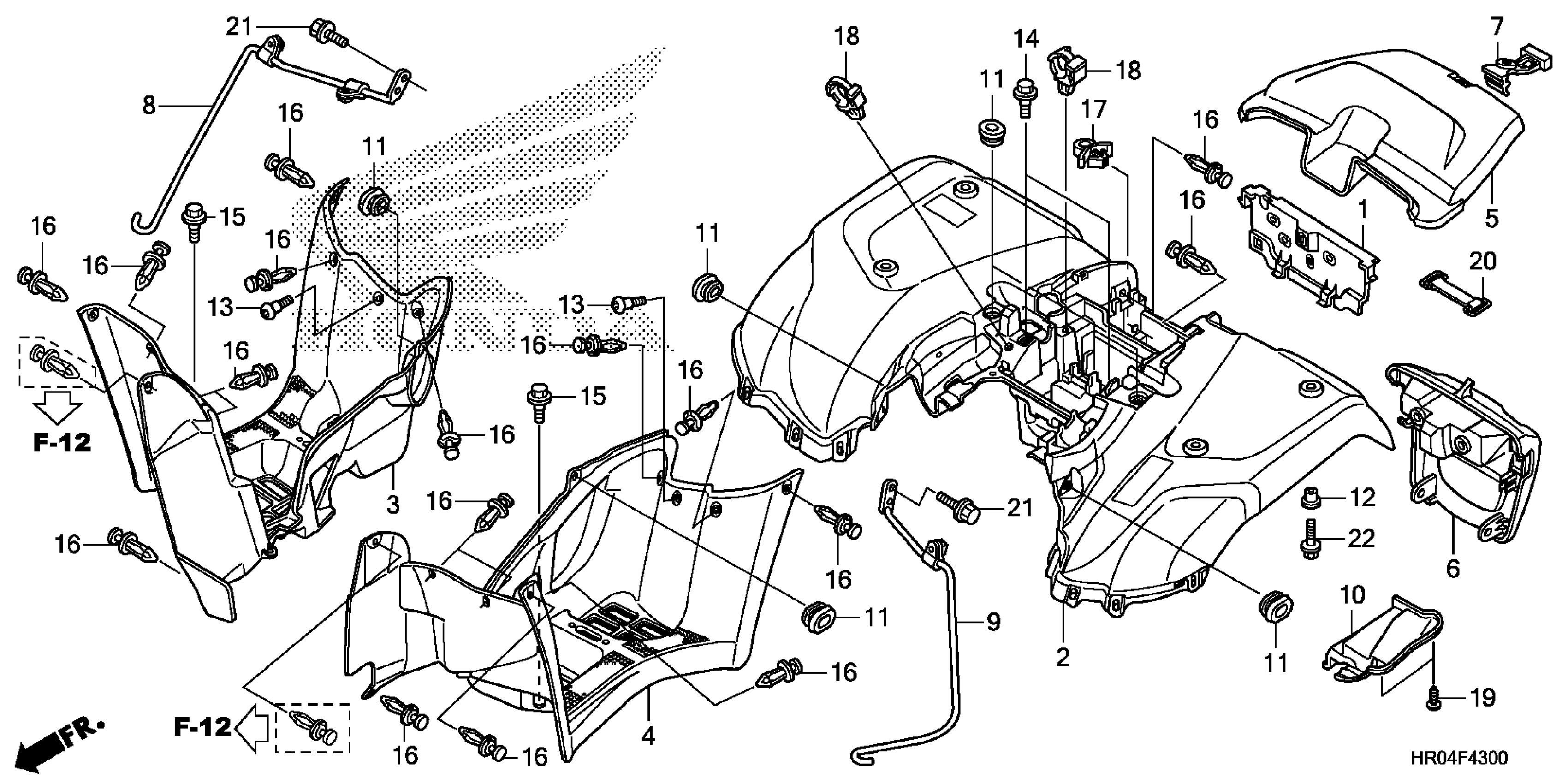

Honda TRX500FMAC (13) FOREMAN 4X4, USA, VIN# 1HFTE380-D4100001 REAR FENDER Diagram

#

Description
Price

1

HOLDER, CONNECTOR

80101-HP7-A00

$6.26

2

FENDER,RR*TYPE1* This part replaces 80110-HR0-E00ZA.

80110-HR0-E01ZA

$249.12

2

FENDER SET, RR. (TYPE2) (WL) This part replaces 80110-HR0-E00ZB.

80110-HR0-E01ZB

$259.07

2

FENDER,RR*TYPE1*

80110-HR0-E01ZA

$249.12

2

FENDER SET, RR. (TYPE2) (WL)

80110-HR0-E01ZB

$259.07

3

SPLASH GUARD, R. CENTER *NH533* (BUMPER DARK GRAY)

80121-HR0-F00ZA

$37.03

4

SPLASH GUARD, L. CENTER *NH533* (BUMPER DARK GRAY)

80122-HR0-F00ZA

Unavailable

5

COVER, RR. FENDER *NH1* (BLACK)

80210-HP5-600ZA

$43.62

6

LID, TOOL BOX *NH1* (BLACK)

80211-HP5-600ZA

$33.03

7

BAND, TOOL BOX

80214-HM5-850

$2.26

8

STAY, R. RR. FENDER

80217-HR0-F00

$130.48

9

STAY, L. RR. FENDER

80218-HR0-F00

$130.74

10

PROTECTOR, RR. MUFFLER

80222-HR0-F00

$11.13

11

GROMMET, SIDE COVER

83551-MA6-000

$3.12

12

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.42

13

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.17

14

BOLT, FLANGE (6MM)

90111-197-890

$3.32

15

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

16

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

17

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$0.20

18

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.06

19

SCREW, TAPPING (5X12)

93903-25220

$0.83

20

BAND A, BATTERY

95012-11001

$2.77

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

22

BOLT, FLANGE (6X16)

95701-06016-08

$1.32
