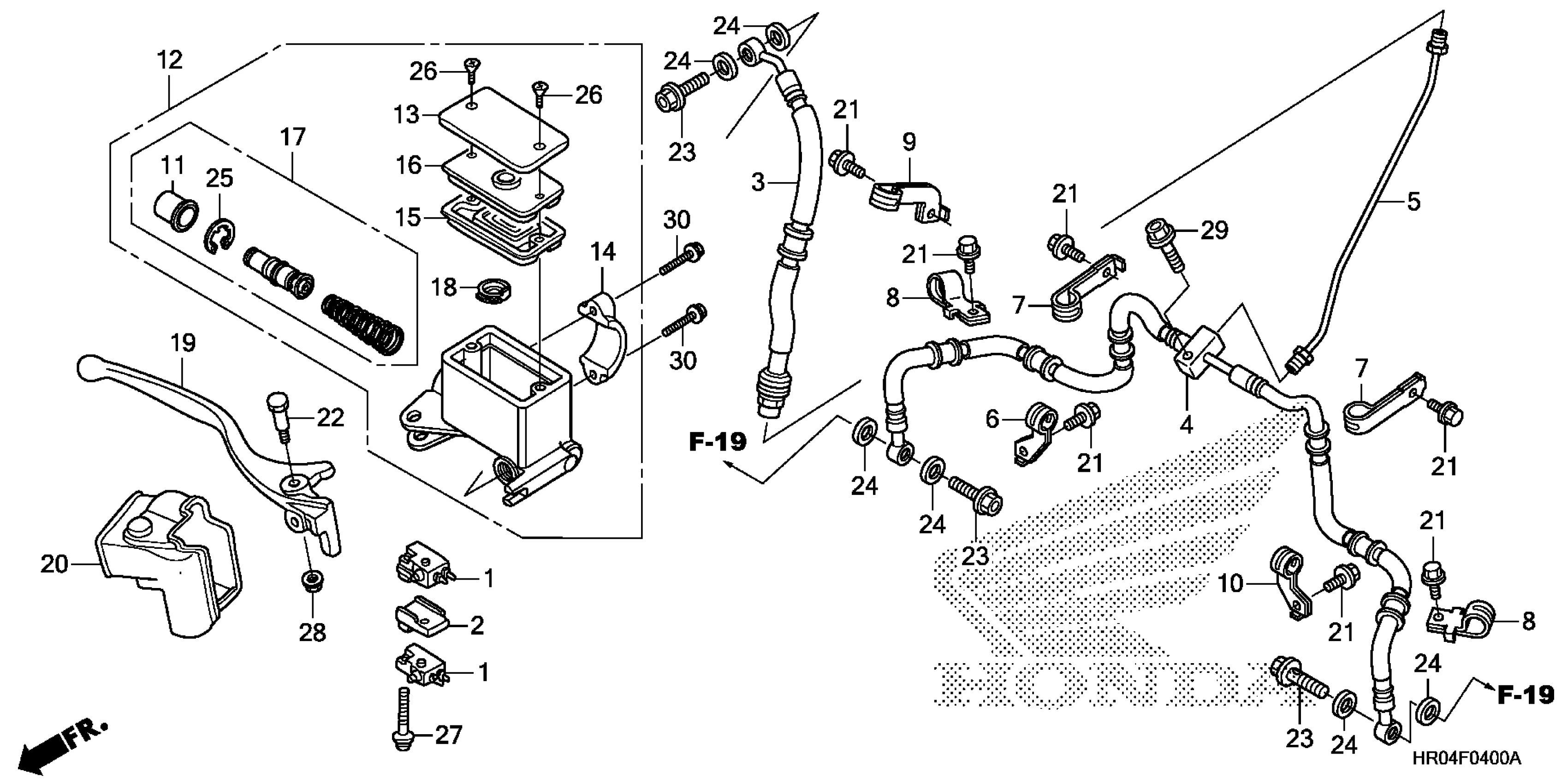

Honda TRX500FMAC (13) FOREMAN 4X4, USA, VIN# 1HFTE380-D4100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

2

SPACER, FR. STOP SWITCH

35343-HN2-740

$3.67

3

HOSE A, FR. BRAKE

45126-HR0-F01

$53.21

4

HOSE B, FR. BRAKE

45127-HR0-F01

$40.93

5

PIPE, FR. BRAKE

45128-HR0-F00

$4.02

6

CLAMP A, R. FR. BRAKE HOSE

45461-HP5-600

$1.49

7

CLAMP, FR. BRAKE HOSE

45461-HR0-F00

$1.90

8

CLAMP B, FR. BRAKE HOSE

45462-HR0-F00

$22.10

9

CLAMP, FR. BRAKE HOSE (UPPER)

45463-HR0-F00

$2.21

10

CLAMP A, L. FR. BRAKE HOSE

45471-HP5-600

$1.49

11

BOOT

45504-410-003

$12.16

12

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-HR0-305

$131.07

13

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

14

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

15

DIAPHRAGM

45520-MG7-006

$10.61

16

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

17

PISTON SET, FR. MASTER CYLINDER

45530-MCA-006

$18.68

18

SEPARATOR

46666-HB9-006

$9.38

19

LEVER, R. HANDLE (COO)

53175-HR0-305

$21.13

20

COVER, R. HANDLE LEVER (COO)

53176-HR0-305

$10.10

21

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

22

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

23

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

24

WASHER, OIL BOLT

90545-300-000

$3.99

25

CIRCLIP

90651-MA5-671

$2.66

26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

27

SCREW-WASHER (4X30) (N/A: USE ALTERNATE P/N 93891-04030-08)

93893-04030-07

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
