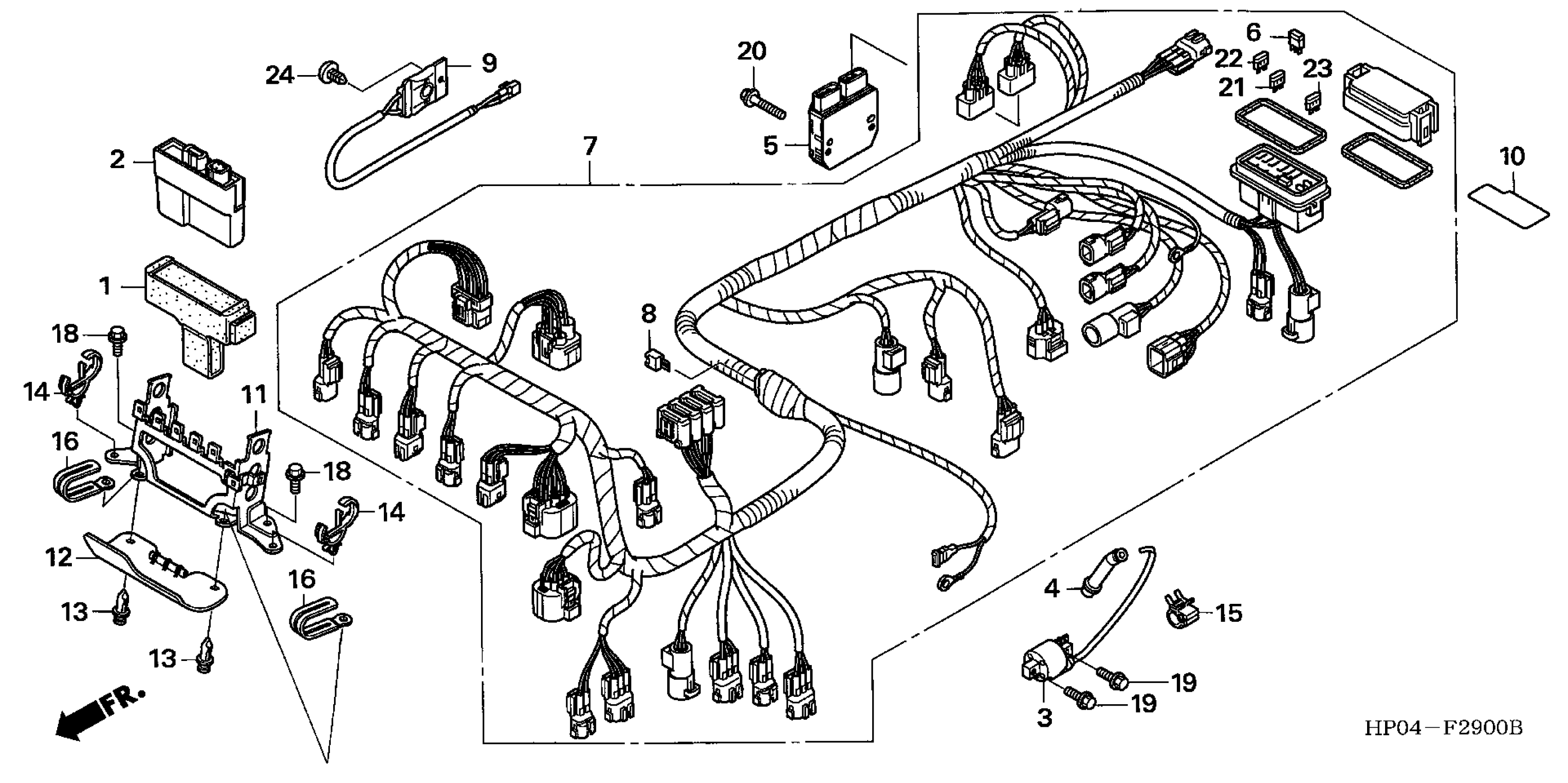

Honda TRX500FMA (06) FOURTRAX FOREMAN 4X4, USA, VIN# 1HFTE310-64100001 WIRE HARNESS Diagram

CUSHION, C.D.I. & CHANGE UNIT

30401-HP0-A10

$18.03

CONTROL UNIT, C.D.I. & CHANGE

30410-HP0-A01

Unavailable

COIL ASSY., IGNITION This part replaces 30500-HP0-A01.

30500-HP0-A71

$42.37

COIL ASSY., IGNITION

30500-HP0-A71

$42.37

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$24.97

RECTIFIER ASSY., REGULATOR

31600-HP0-A01

$124.39

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

WIRE HARNESS

32100-HP0-A00

$1,132.99

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.36

SWITCH ASSY., THERMOSTAT

35250-HN4-670

$43.18

STAY, ENGINE CONTROL UNIT

50269-HP0-A00

$68.90

GUARD, ENGINE CONTROL UNIT HEAT

50271-HP0-A00

$25.61

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

CLIP, HARNESS

90684-ZA0-601

$2.80

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

CLIP, WIRE HARNESS

91404-VM6-000

$5.81

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

FUSE, MINI (10A)

98200-41000

$1.20

FUSE, MINI (15A)

98200-41500

$1.10

FUSE, MINI (30A)

98200-43000

$1.59

CLIP, WASHER MOUTH

91504-SD5-901

$4.09
