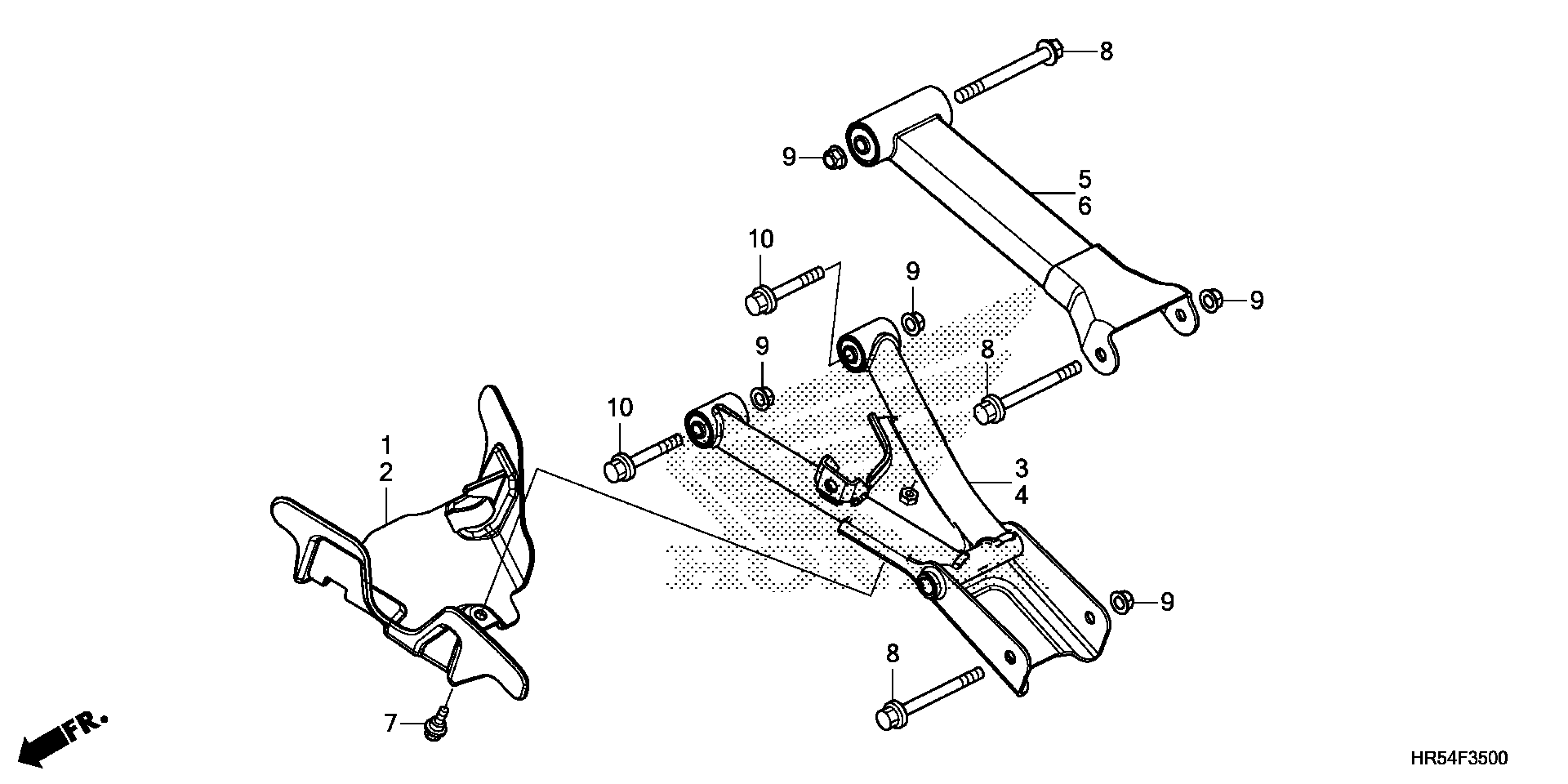

Honda TRX500FM7AC (16) TRX500FM7, USA, VIN# 1HFTE458-G4100001 TO 1HFTE458-G4199999 REAR ARM Diagram

#

Description
Price

1

GUARD, R. RR. BOOT

52315-HR6-A60

$6.15

2

GUARD, L. RR. BOOT

52325-HR6-A60

$6.15

3

ARM ASSY., R. RR. (LOWER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

52350-HR6-A60ZA

$192.33

4

ARM ASSY., L. RR. (LOWER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

52360-HR6-A60ZA

$149.57

5

ARM ASSY., R. RR. (UPPER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

52370-HR6-A60ZA

$97.26

6

ARM ASSY., L. RR. (UPPER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

52380-HR6-A60ZA

$97.28

7

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

8

BOLT, FLANGE (10X110)

90121-HL1-A00

$4.24

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

10

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

10

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
