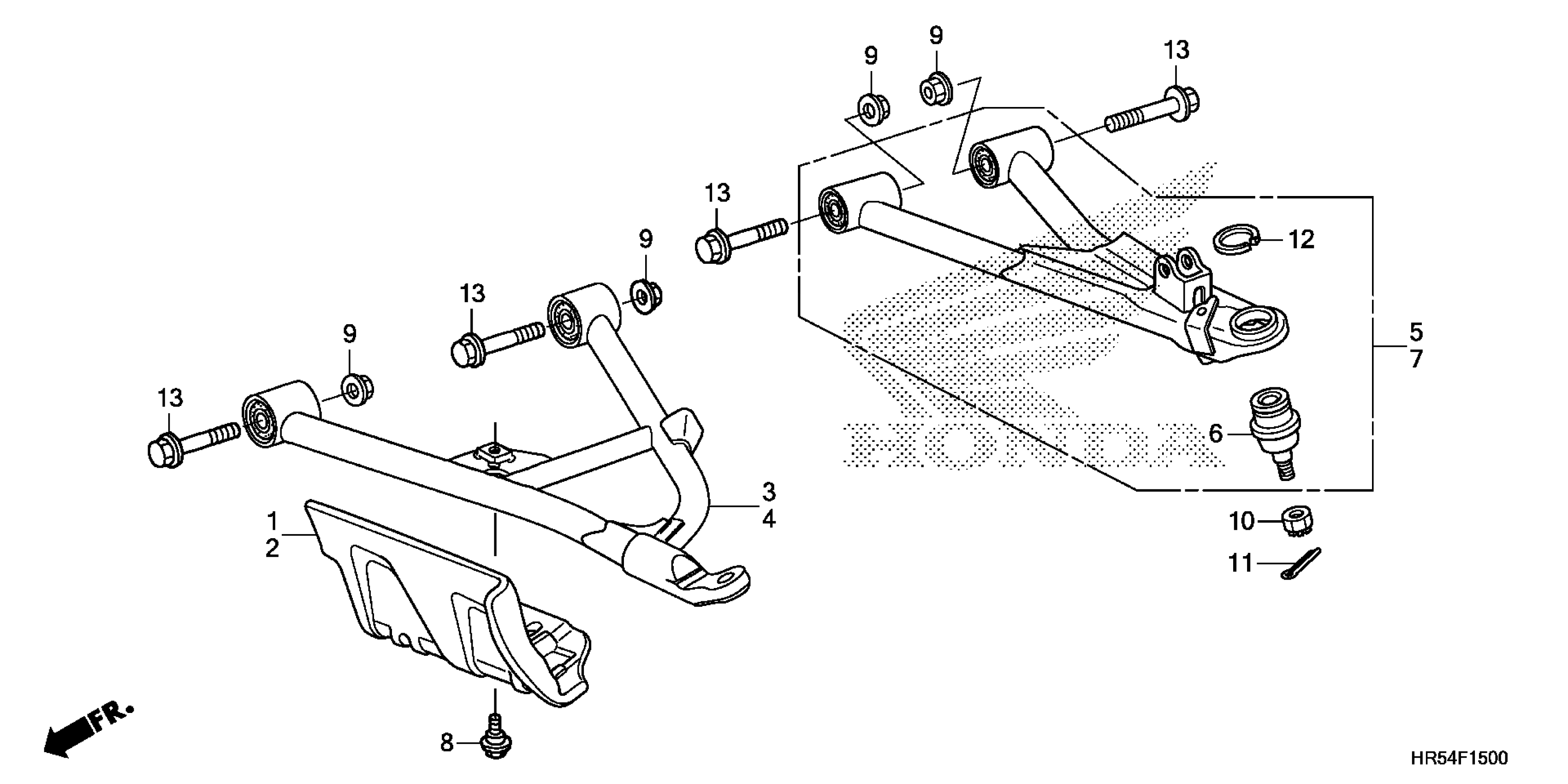

Honda TRX500FM7AC (16) TRX500FM7, USA, VIN# 1HFTE458-G4100001 TO 1HFTE458-G4199999 FRONT ARM Diagram

#

Description

Price

1

GUARD, R. FR. INBOARD

51315-HR0-F00

$3.67

2

GUARD, L. FR. INBOARD

51316-HR0-F00

$3.67

3

ARM ASSY., R. FR. (LOWER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

51350-HR6-A60ZA

$184.72

4

ARM ASSY., L. FR. (LOWER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

51360-HR6-A60ZA

$245.52

5

ARM ASSY., R. FR. (UPPER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

51370-HR6-A60ZA

$128.96

6

JOINT A, ARM BALL

51375-HP5-601

$17.90

7

ARM ASSY., L. FR. (UPPER) (TYPE2) | Ross white NH196; Chaos black metallic-r NHA79MR;

51380-HR6-A60ZA

$142.22

8

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

9

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

10

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

11

PIN, SPLIT (3.0X18)

94201-30180

$0.94

12

CIRCLIP (OUTER) (34MM)

94514-34000

$1.68

13

BOLT, FLANGE (10X62)

90151-HC5-000

$7.22

13

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
