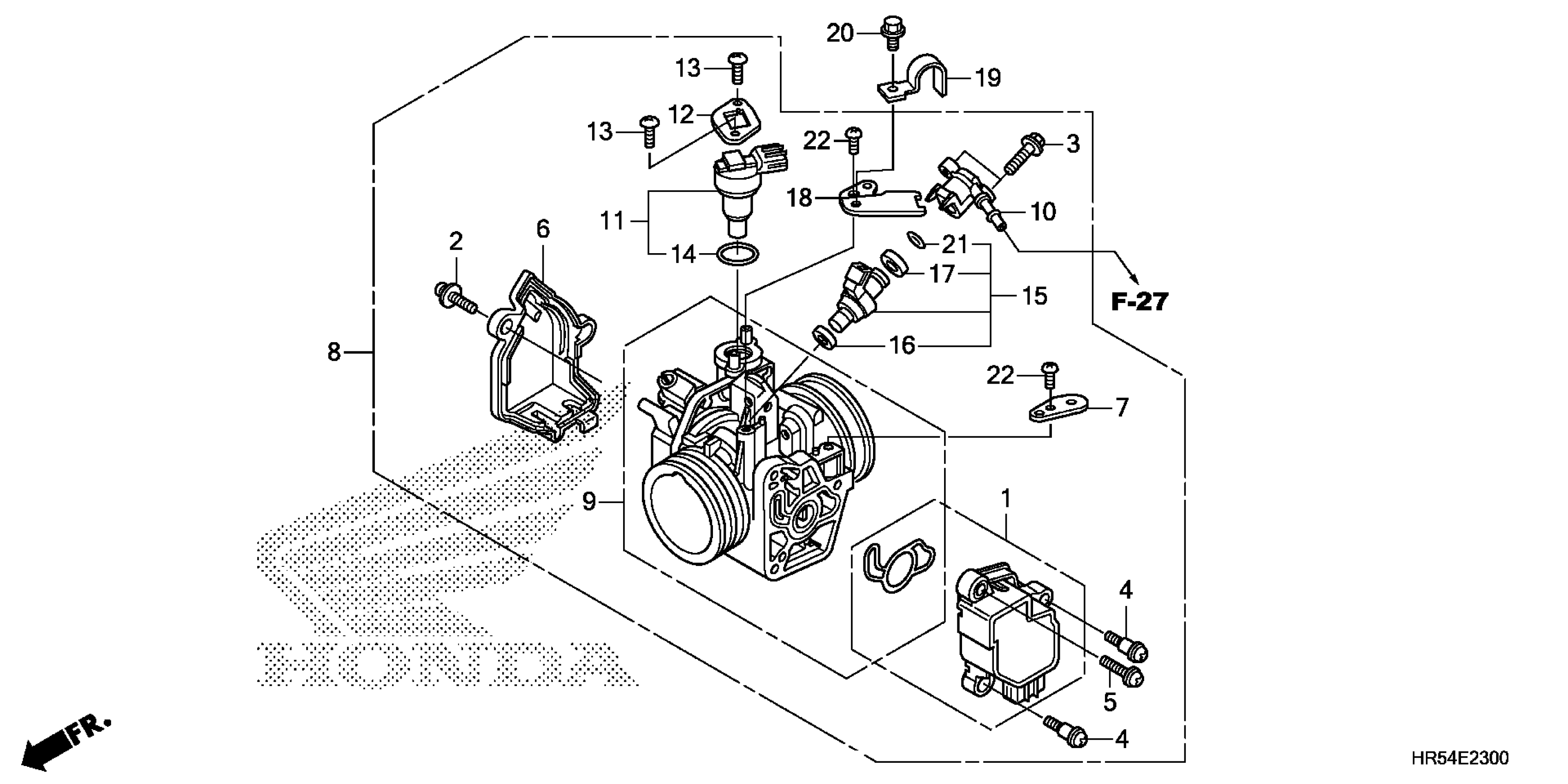

Honda TRX500FM6AC (17) TRX500FM6, USA, VIN# 1HFTE452-H4200001 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET

16060-HP6-A01

$127.99

2

SCREW-WASHER

16080-HP5-601

$1.91

3

BOLT, FLANGE (5X20)

16080-KPH-701

$4.29

4

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.53

5

SCREW, TORX (5X17)

16082-KYJ-901

$2.00

6

COVER, BODY

16157-HN8-A61

$2.80

7

STAY, HARNESS CLAMP

16196-HP6-A01

$8.69

8

THROTTLEBODY ASSY. This part replaces 16400-HR4-A42.

16400-HR4-A43

$135.92

9

BODY SET

16410-HR4-A41

$68.38

10

JOINT, INJECTOR

16422-HR3-A41

$16.75

11

VALVE SET, IDLE AIR CONTROL

16430-HP6-A01

$58.06

12

PLATE, IDLE AIR CONTROL VALVE

16432-HP5-601

$3.36

13

SCREW, TORX

16433-HN8-A61

$0.34

14

O-RING (17.8X1.9)

16435-HN8-A61

$8.15

15

INJECTOR ASSY., FUEL This part replaces 16450-HR3-A42.

16450-HR3-A43

$75.49

16

RING, SEAL

16472-KPC-D50

$2.07

17

DUST SEAL RING

16473-HR3-A42

$5.87

18

BASE, CLAMP

17567-KWT-901

$6.21

19

CLAMP, FUEL HOSE

17568-HP5-600

$0.81

20

BOLT, FLANGE (5X10)

90002-892-000

$1.31

21

O-RING (6.3X2.2)

91301-KZL-931

$9.42

22

SCREW, PAN (5X10)

93500-05010-0H

Unavailable

22

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

Unavailable

22

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

Unavailable
