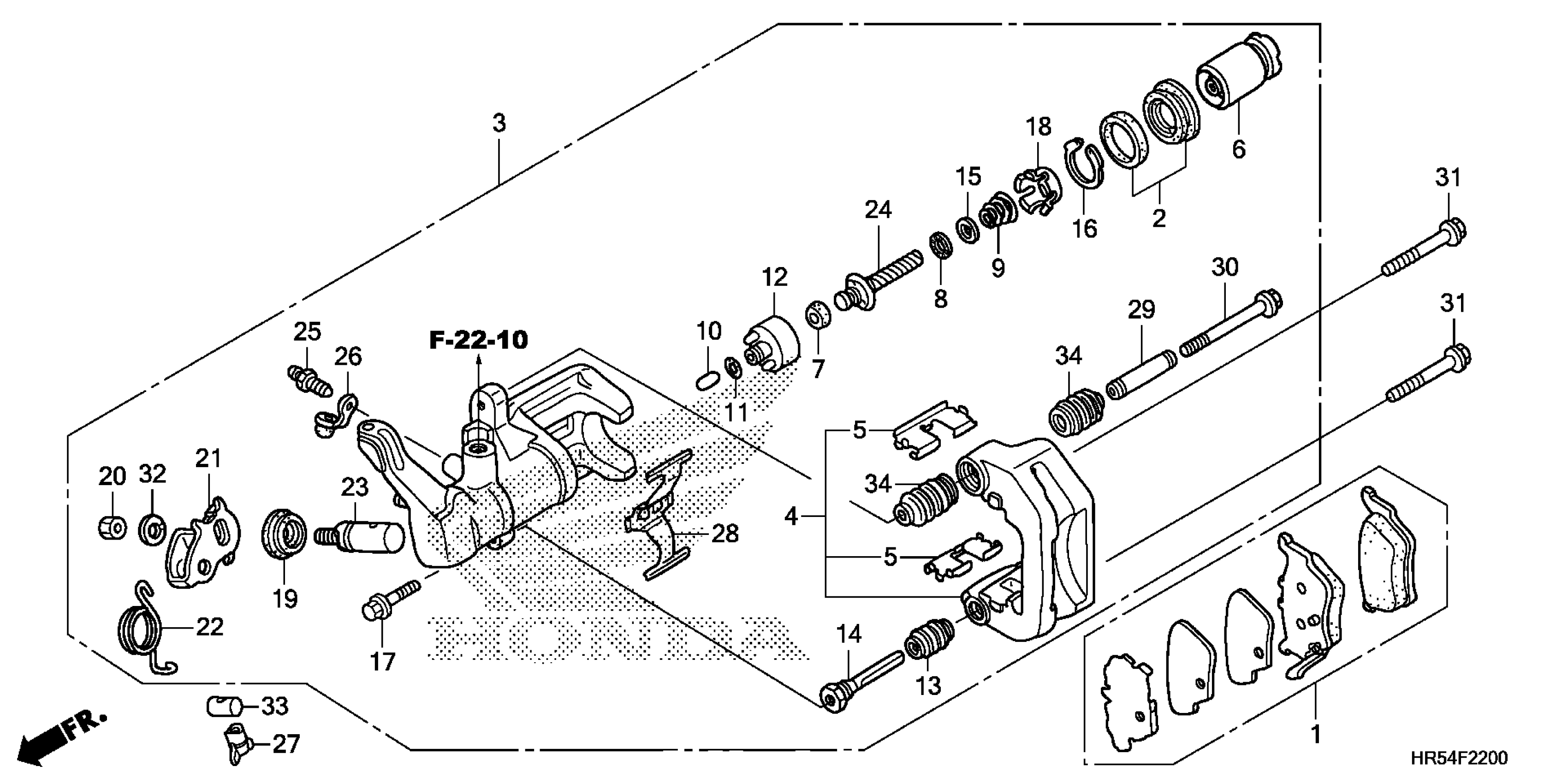

Honda TRX500FM6AC (17) TRX500FM6, USA, VIN# 1HFTE452-H4200001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-HN8-016

$41.46

2

SEAL SET, PISTON

06451-HN8-006

$13.39

3

CALIPER SUB-ASSY., RR.

43150-HN8-006

$216.13

4

BRACKET, RR.

43210-HN8-006

$62.74

5

RETAINER, BRACKET

43211-HN8-006

$7.29

6

PISTON ASSY.

43215-SH3-931

$108.05

7

CUP

43218-T5B-003

$4.92

8

BEARING A

43223-SD2-932

$16.15

9

SPRING B, ADJUSTING

43224-SD2-931

$5.94

10

ROD

43229-SD2-931

$8.54

11

O-RING (NISSIN)

43232-TA0-A01

$1.49

12

PISTON, SLEEVE

43233-TR0-A01

$21.33

13

COVER, DUST

43234-S04-003

$5.62

14

PIN A

43235-S84-A51

$9.71

15

SPACER

43236-S04-003

$8.30

16

RING, RETAINING

43238-SD2-931

$10.43

17

BOLT, FLANGE (8X26)

43240-S6M-J51

$4.84

18

GUIDE, SPRING

43241-SD2-931

$10.16

19

COVER, SHAFT

43242-SD2-933

$11.77

20

NUT (10MM)

43243-HN8-006

$2.46

21

LEVER, BRAKE LOCK

43245-HN8-006

$10.25

22

SPRING, ARM RETURN

43246-HN8-006

$3.70

23

SHAFT B

43248-SD2-933

$27.62

24

BOLT, ADJUSTER

43249-S04-003

$23.36

25

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

26

CAP, BLEEDER

43353-461-771

$5.05

27

NUT, BRAKE ADJUSTING

43459-HB2-000

$11.08

28

SPRING, PAD

45108-HN8-006

$7.61

29

SLEEVE

45235-S3Y-003

$14.51

30

BOLT, FLANGE (8X74)

45241-S3Y-003

$7.02

31

BOLT, FLANGE (8X40)

90131-MS6-900

$4.07

32

WASHER, SPRING (10MM)

94111-10800

$1.49

33

JOINT B, BRAKE ARM

95015-32001

$1.49

34

SLEEVE, BOOT

45233-HN8-305

$6.99

34

SLEEVE, BOOT This part replaces 45233-S3Y-003.

45233-HN8-305

$6.99
