Description

Price

1

FORK, FR. GEARSHIFT

24211-HP5-A50

$11.33

2

FORK, CENTER GEARSHIFT

24212-HR0-F00

$59.84

3

SWINGARM, GEARSHIFT

24213-HP5-A50

$11.26

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HP0-A51

$22.74

5

DRUM, GEARSHIFT

24310-HP5-A50

$40.13

6

SHIFTER, DRUM

24321-HM8-B40

$23.07

7

PLATE, SHIFT GUIDE

24328-HB3-000

$6.86

8

STOPPER, GEARSHIFT DRUM

24430-HP5-600

$13.10

9

SPRING, SHIFT DRUM STOPPER

24435-HR0-E00

$4.10

10

SPINDLE, GEARSHIFT

24611-HR0-E00

$68.27

11

ARM, GEARSHIFT MASTER

24620-HR0-E00

$19.85

12

PLATE, GEARSHIFT

24631-HM7-010

$8.39

13

SPRING, SHIFT ARM

24641-HB3-004

$2.68

14

SPRING, GEARSHIFT RETURN

24651-HP5-000

$6.81

15

PIN, RETURN SPRING

24652-KY4-900

$7.63

16

ARM, SUB-GEARSHIFT SPINDLE

24670-HR0-E00

$50.91

17

SPINDLE, SUB-GEARSHIFT

24680-HR0-E00

$73.40

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.15

19

WASHER, DRUM STOPPER

90417-360-000

Unavailable

20

WASHER, THRUST (12MM)

90451-GF6-000

$2.06

21

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$55.22

22

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.08

23

BEARING, NEEDLE (20X26X12)

91106-HN0-671

$14.06

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

25

ROLLER (4X13.8)

96220-40138

$0.49

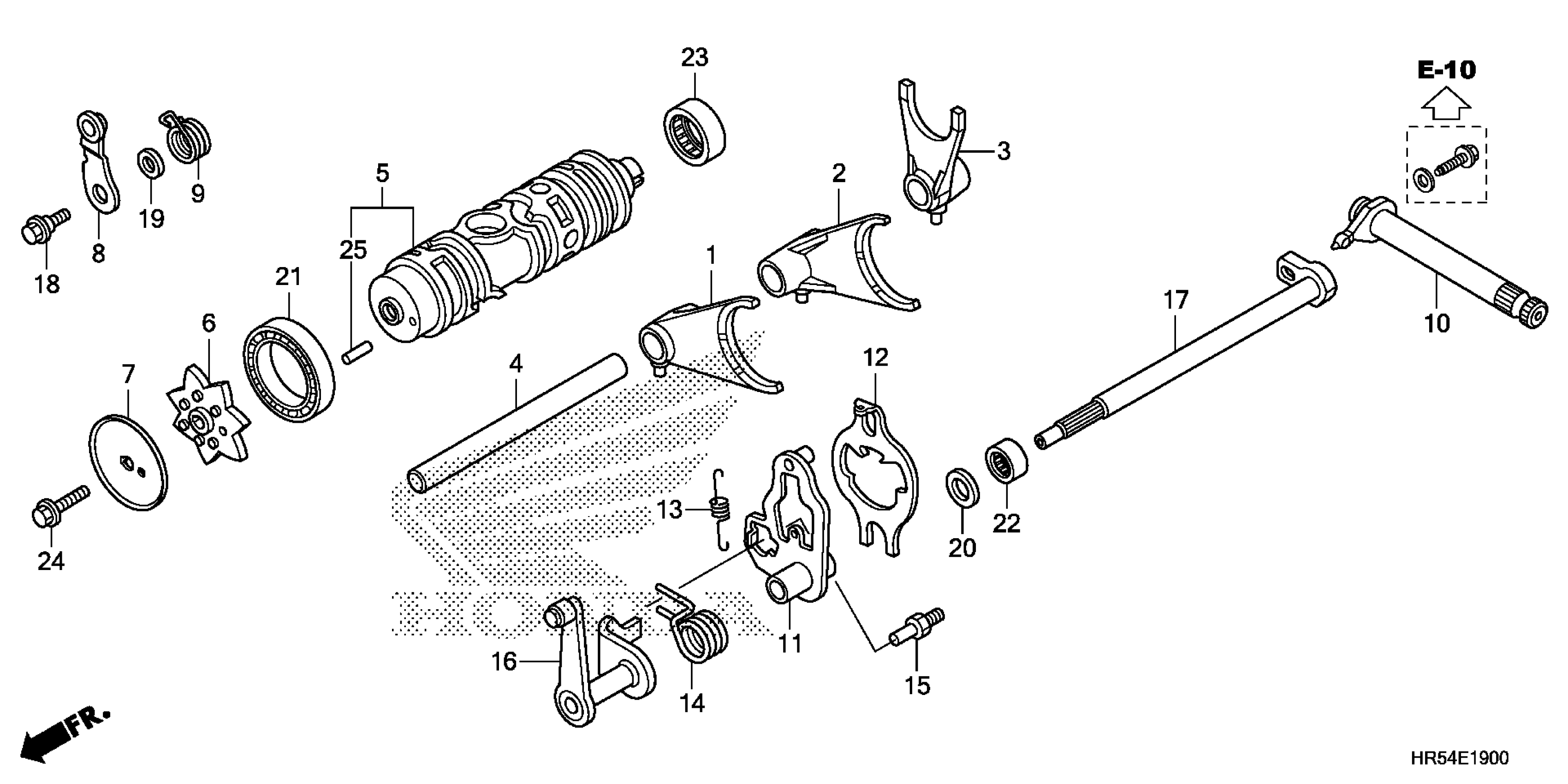

Honda TRX500FM6AC (17) TRX500FM6, USA, VIN# 1HFTE452-H4200001 GEARSHIFT FORK Diagram
