Description

Price

1

COVER ASSY., FR. CRANKCASE

11300-HR0-E00

$285.12

2

COVER, OIL FILTER

11333-HR0-F00

$66.05

3

ELEMENT, OIL FILTER

15412-HM5-A10

$5.52

4

RUBBER, FILTER

15413-MC8-000

Unavailable

5

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

6

DIPSTICK, OIL

15650-HL5-A00

$9.61

7

IMPELLER, WATER PUMP

19215-MEG-300

$23.57

8

SHAFT, WATER PUMP

19216-HP5-600

$31.99

9

SEAL, MECHANICAL

19217-MAL-300

$48.70

10

HOSE, DRAIN

19507-HP5-600

$1.19

11

PLATE, CLUTCH CAM

22820-HR0-E00

$27.50

12

SPRING, CAM PLATE SIDE

22825-HP5-600

$2.75

13

PLATE, CLUTCH LIFTER

22830-HR0-E00

$112.75

14

BOLT, CLUTCH ADJUSTING

22841-HR0-F00

$7.03

15

RETAINER, BALL

22860-HP5-600

$7.57

16

WASHER, THRUST (12X23X2)

90599-767-C10

$2.54

17

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$20.57

18

OIL SEAL (12X26X7) (ARAI)

91201-MV4-003

$4.90

19

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

20

O-RING (11X1.9) (NOK)

91303-HA0-004

$1.97

21

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

22

O-RING (8.2X1.5)

91308-MC7-000

$2.13

23

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.01

24

NUT, HEX. (8MM)

94030-08000

Unavailable

25

WASHER, PLAIN (8MM)

94102-08800

$0.87

26

PIN, DOWEL (8X14)

94301-08140

$2.76

27

CLIP, PISTON PIN (15MM)

94601-15000

$0.94

28

CLIP, TUBE (B12.5)

95002-02130

$1.06

29

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

30

BOLT, FLANGE (6X110)

95701-06110-00

$4.32

31

BOLT, FLANGE (6X18)

96001-06018-00

$1.79

32

BEARING, NEEDLE (1010) (NTN)

91021-148-004

$22.74

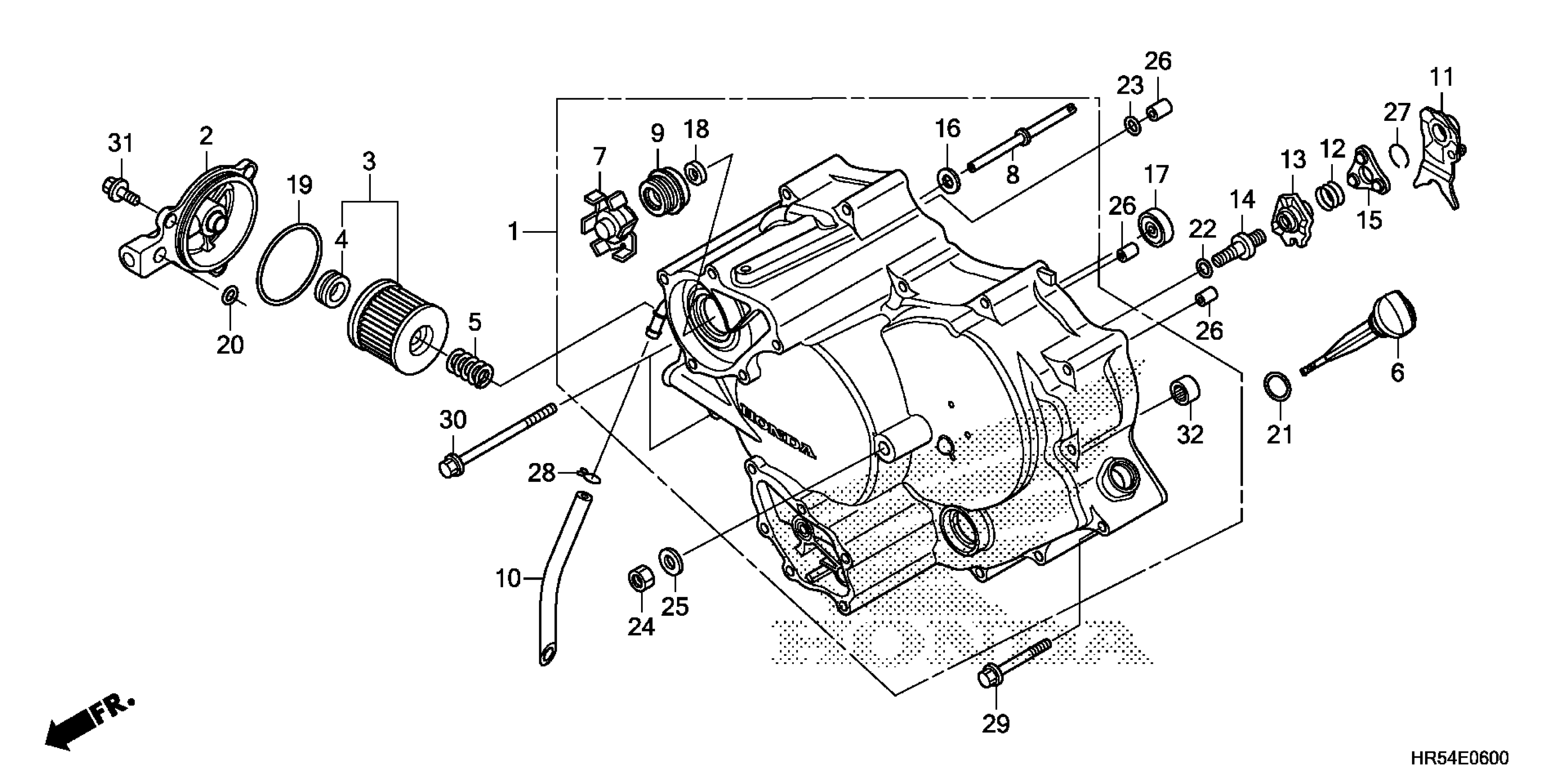

Honda TRX500FM6AC (17) TRX500FM6, USA, VIN# 1HFTE452-H4200001 FRONT CRANKCASE COVER Diagram
