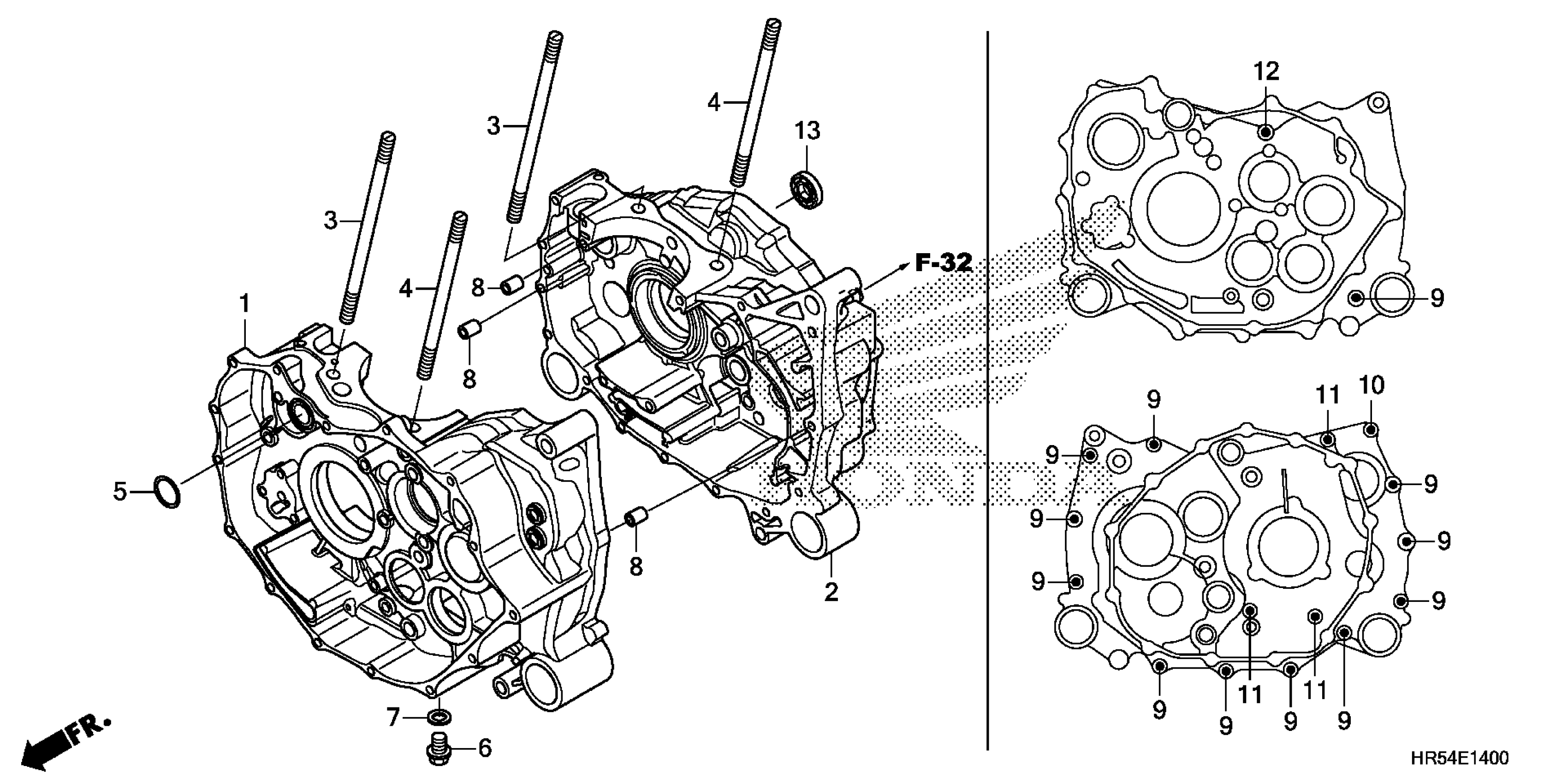

Honda TRX500FM6AC (17) TRX500FM6, USA, VIN# 1HFTE452-H4200001 CRANKCASE Diagram

CRANKCASE, FR.

11100-HR0-F01

$394.23

CRANKCASE, RR.

11200-HR0-F01

$421.98

BOLT, STUD (10X177)

90013-HR0-F00

$12.33

BOLT, STUD (10X147)

90014-HR0-F00

$11.20

O-RING (20.6X1.9)

91304-HP5-601

$2.95

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (6X85)

95701-06085-00

$1.64

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
