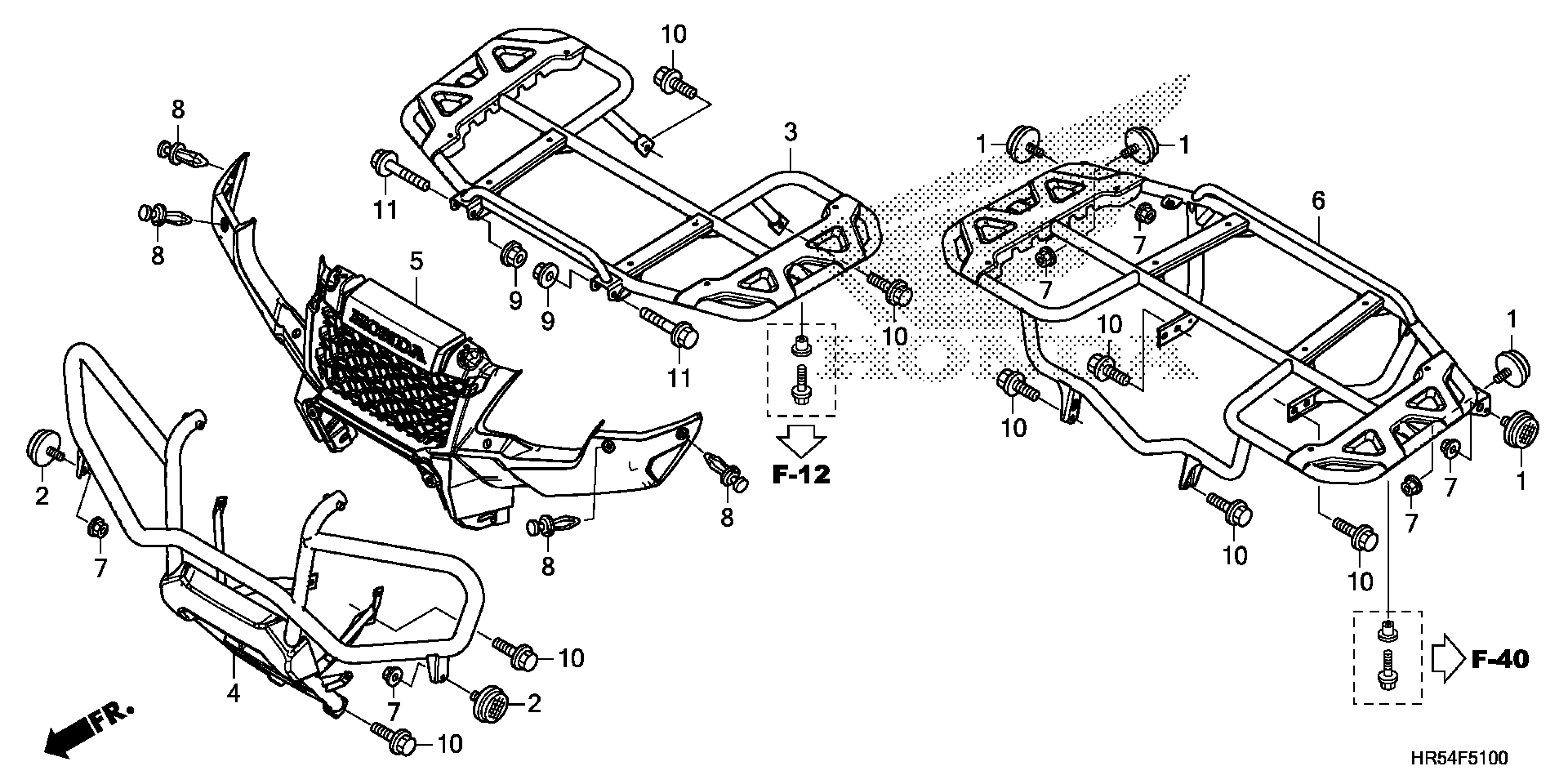

Honda TRX500FM6AC (17) TRX500FM6, USA, VIN# 1HFTE452-H4200001 CARRIER Diagram

#

Description

Price

3

CARRIER, FR. LUGGAGE NH1 (BLACK) | Ross white NH196; Chaos black metallic-r NHA79MR;

81100-HR6-A60ZA

$195.35

4

PIPE, FR. CARRY NH1 (BLACK) | Ross white NH196; Chaos black metallic-r NHA79MR;

81150-HR6-A60ZA

$270.66

5

GRILLE, FR. NH1 (BLACK) | Ross white NH196; Chaos black metallic-r NHA79MR;

81170-HR6-A60ZA

$226.22

6

CARRIER, LUGGAGE NH1 (BLACK) | Ross white NH196; Chaos black metallic-r NHA79MR;

81300-HR6-A60ZA

$385.91

8

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

9

NUT, FLANGE (8MM)

94050-08070

$1.38

10

BOLT, FLANGE (8X16)

95701-08016-07

$1.62

11

BOLT, FLANGE (8X55)

95801-08055-07

$1.47
