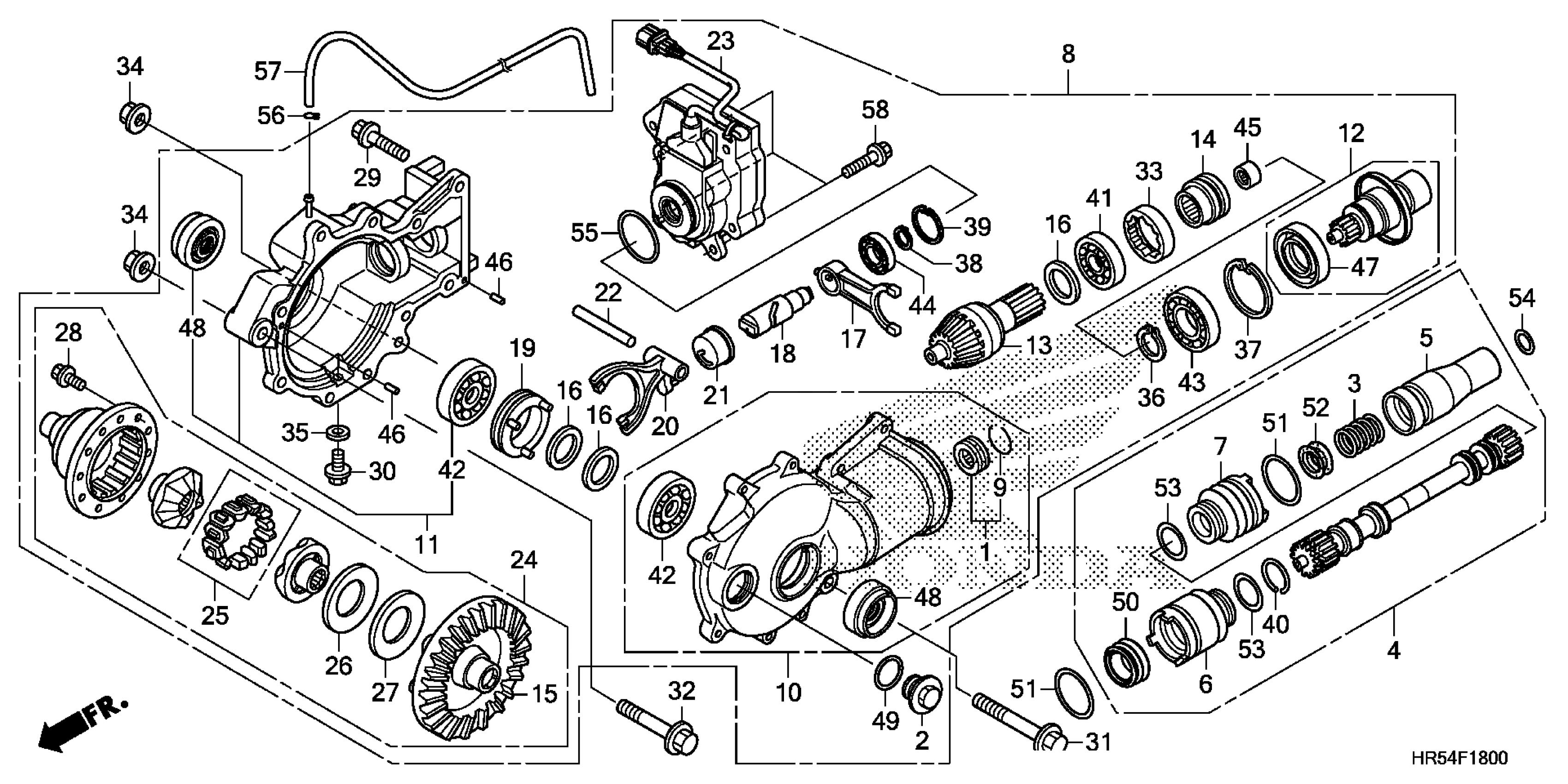

Honda TRX500FM62AC (16) TRX500FM6, USA, VIN# 1HFTE451-G4100001 TO 1HFTE451-G4199999 FRONT FINAL GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HR4-A21

$27.56

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

SPRING, SHAFT

40215-HM7-000

$2.11

4

SHAFT ASSY., FR. PROPELLER

40400-HR6-A61

$93.71

5

JOINT, FR. PROPELLER SHAFT

40402-HR3-A20

$50.55

6

BOOT A, PROPELLER

40410-HR6-A60

$7.83

7

BOOT B, PROPELLER

40420-HM7-A00

$13.36

8

GEAR, FR. FINAL This part replaces 41400-HR5-A21.

41400-HR5-CC1

$828.37

9

RING, STOPPER

41405-HA7-670

$2.97

10

CASE SUB-ASSY., FR. FINAL GEAR

41411-HR4-A21

$124.69

11

COVER SUB-ASSY., FR. FINAL GEAR

41412-HR4-A21

$250.11

12

JOINT SUB-ASSY., FR. FINAL CLUTCH

41500-HR5-A21

$120.66

13

GEAR, FR. PINION (13T)

41521-HR4-A21

$102.37

14

SLEEVE, FR. FINAL CLUTCH

41527-HR4-A21

$22.08

15

GEAR, FR. RING (42T)

41531-HR4-A21

$131.44

16

SHIM A, DIFFERENTIAL CASE (0.60)

41540-HR4-A21

$2.44

16

SHIM B, DIFFERENTIAL CASE (0.65)

41541-HR4-A21

$2.74

16

SHIM C, DIFFERENTIAL CASE (0.70)

41542-HR4-A21

$2.89

16

SHIM D, DIFFERENTIAL CASE (0.75)

41543-HR4-A21

$2.74

16

SHIM E, DIFFERENTIAL CASE (0.80)

41544-HR4-A21

$2.74

16

SHIM F, DIFFERENTIAL CASE (0.85)

41545-HR4-A21

$2.44

16

SHIM G, DIFFERENTIAL CASE (0.90)

41546-HR4-A21

$2.34

16

SHIM H, DIFFERENTIAL CASE (0.95)

41547-HR4-A21

$2.92

16

SHIM I, DIFFERENTIAL CASE (1.00)

41548-HR4-A21

$2.77

16

SHIM J, DIFFERENTIAL CASE (1.05)

41549-HR4-A21

$2.48

16

SHIM K, DIFFERENTIAL CASE (1.10)

41550-HR4-A21

$2.49

16

SHIM L, DIFFERENTIAL CASE (1.15)

41551-HR4-A21

$2.85

16

SHIM M, DIFFERENTIAL CASE (1.20)

41552-HR4-A21

$2.92

16

SHIM N, DIFFERENTIAL CASE (1.25)

41553-HR4-A21

$2.36

16

SHIM O, DIFFERENTIAL CASE (1.30)

41554-HR4-A21

$2.56

16

SHIM P, DIFFERENTIAL CASE (1.35)

41555-HR4-A21

$2.92

16

SHIM Q, DIFFERENTIAL CASE (1.40)

41556-HR4-A21

$2.92

16

SHIM R, DIFFERENTIAL CASE (1.45)

41557-HR4-A21

$2.56

17

FORK, FR. FINAL CLUTCH

41560-HR4-A21

$41.07

18

SHAFT, SCREW

41565-HR4-A21

$21.54

19

SLEEVE, DIFFERENTIAL LOCK

41627-HR4-A21

$39.05

20

FORK, DIFFERENTIAL LOCK

41661-HR4-A21

$75.08

21

CAM, DIFFERENTIAL LOCK

41665-HR4-A21

$35.85

22

SHAFT, DIFFERENTIAL LOCK FORK

41666-HR4-A21

$4.15

23

ACTUATOR ASSY.

41700-HR4-A21

$402.25

24

DIFFERENTIAL ASSY. (42T)

42400-HR4-A21

$700.67

25

FOLLOWER SET, CAM

42440-HN5-671

$59.10

26

SHIM A (1.3)

42451-HN7-003

$2.13

26

SHIM B (1.4)

42452-HN7-003

$2.13

26

SHIM C (1.5)

42453-HN7-003

$2.13

26

SHIM D (1.6)

42454-HN7-003

$2.13

26

SHIM E (1.7)

42455-HN7-003

$2.13

26

SHIM F (1.8)

42456-HN7-003

$2.13

26

SHIM G (1.9)

42457-HN7-003

$2.13

27

SPRING, DIFFERENTIAL SIDE CONED

42461-HN5-671

$15.92

28

BOLT (8X17)

90101-HN8-000

$1.51

29

BOLT, FLANGE (8X25)

90102-HR4-A21

$1.49

30

BOLT, SEALING (8MM)

90109-371-000

$2.58

31

BOLT, FLANGE (10X100)

90130-KPM-000

$4.85

32

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

33

NUT, LOCK (60MM)

90244-HA0-000

$37.87

34

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

35

GASKET (8MM)

90471-580-000

$2.92

36

CIRCLIP (OUTER) (45MM)

90651-HR4-A21

$1.49

37

CIRCLIP (INNER) (68MM)

90652-HR4-A21

$2.31

38

CIRCLIP (OUTER) (17MM)

90653-HR4-A21

$1.49

39

CIRCLIP (INNER) (35MM)

90654-HR4-A21

$1.49

40

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

41

BEARING, RADIAL BALL (32X58X13)

91051-HR4-A21

$11.69

42

BEARING, RADIAL BALL (32X28X13)

91052-HR4-A21

$11.69

43

BEARING, RADIAL BALL (45X68X12)

91053-HR4-A21

$20.99

44

BEARING, RADIAL BALL (17X35X10)

91054-HR4-A21

$5.25

45

BEARING, NEEDLE (12X18X12)

91055-HR4-A21

$3.35

46

PIN, DOWEL (5MM)

91151-HR4-A21

$1.49

47

DUST SEAL (51.5X72X9)

91251-HR4-A21

$6.68

48

OIL SEAL (22X48X7) (ARAI)

91252-HC5-003

$9.38

49

O-RING (30.8MM)

91302-001-020

$3.75

50

SEAL B, RUBBER

91303-HM7-003

$9.15

51

BAND, BOOT (D27)

91302-HM7-A00

$7.93

52

SEAL, PROPELLER

91302-HN5-671

$3.72

53

BAND, BOOT (D20)

91303-HM7-A00

$7.93

54

O-RING (18.5X2.4) (ARAI)

91311-MB0-003

$2.03

55

O-RING (38MM)

91351-HR4-A21

$6.59

56

CLIP, TUBE (C6.5)

95002-35000

$1.49

57

BULK HOSE, VACUUM (3.5X1000) (3.5X660)

95005-35001-30M

$8.63

58

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
