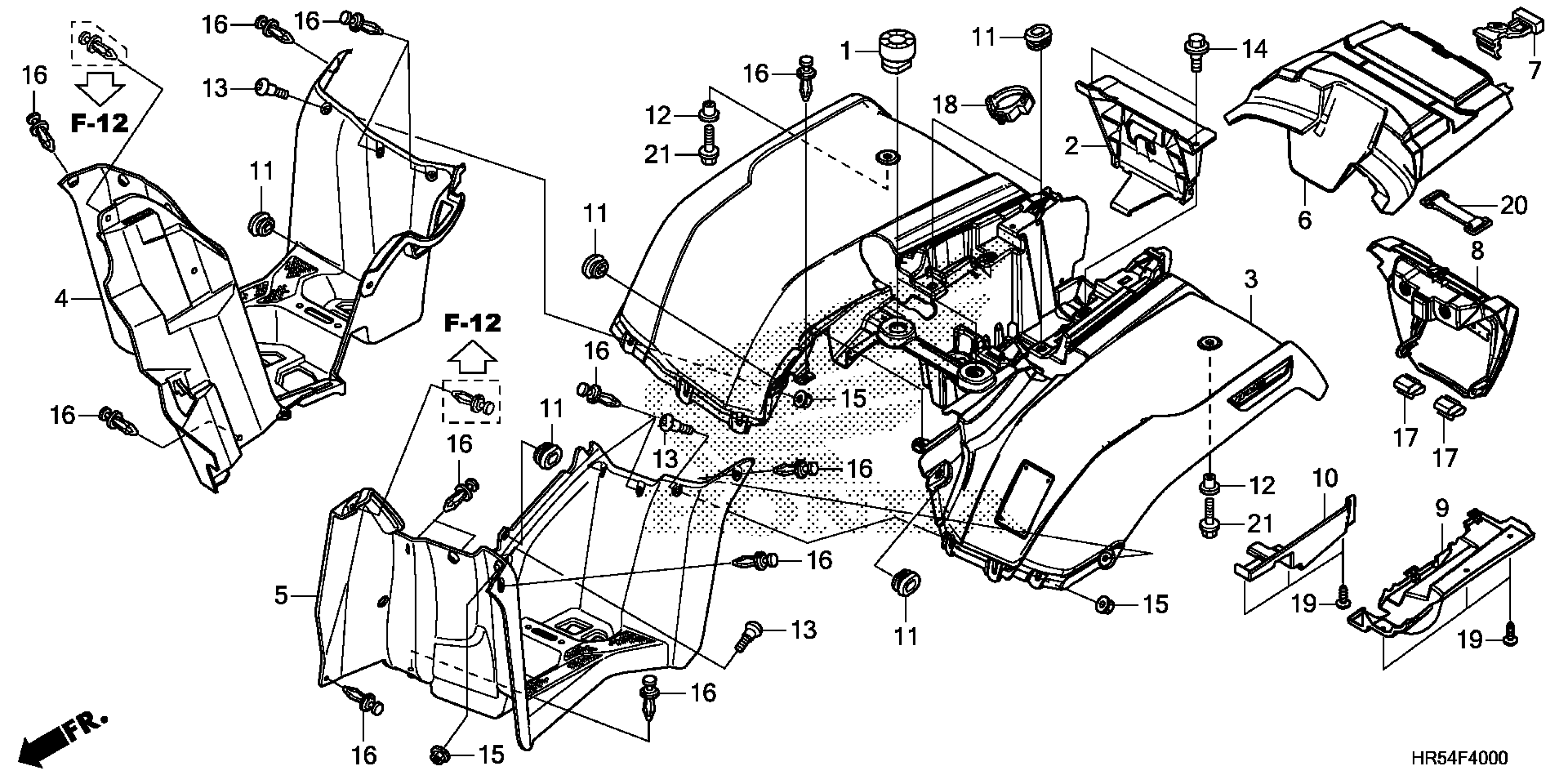

Honda TRX500FM5AC (16) TRX500FM5, USA, VIN# 1HFTE450-G4100001 TO 1HFTE450-G4199999 REAR FENDER Diagram

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

HOLDER, BATTERY

80101-HR3-A20

$6.14

FDR, RR. (TYPE2) | Adventure green G152; This part replaces 80110-HR6-A60ZC.

80110-HR6-A61ZC

$180.00

FDR, RR. (TYPE1) | Patriot red R232; This part replaces 80110-HR6-A60ZD.

80110-HR6-A61ZD

$180.00

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HR3-A20ZA

$84.44

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HR6-A60ZA

$75.08

COVER, RR. FENDER *NH1* (BLACK)

80210-HR6-A60ZA

$112.35

BAND, TOOL BOX

80214-HM5-850

$2.56

LID SET, TOOL BOX (TYPE1) (WL)

80215-HR6-A60ZB

$98.52

PROTECTOR, RR. MUFFLER

80222-HR6-A60

$9.30

PROTECTOR, BATTERY (RR)

80223-HR6-A60

$10.66

GROMMET, SIDE COVER

83551-MA6-000

$3.35

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

BOLT, FLANGE (6MM)

90111-147-000

$2.75

NUT, FLANGE (6MM)

90302-187-000

$2.39

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, CORD

90660-SB2-000

$8.58

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

SCREW, TAPPING (5X12)

93903-25220

$1.49

BAND F, BATTERY (155MM)

95012-17001

$7.23

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
