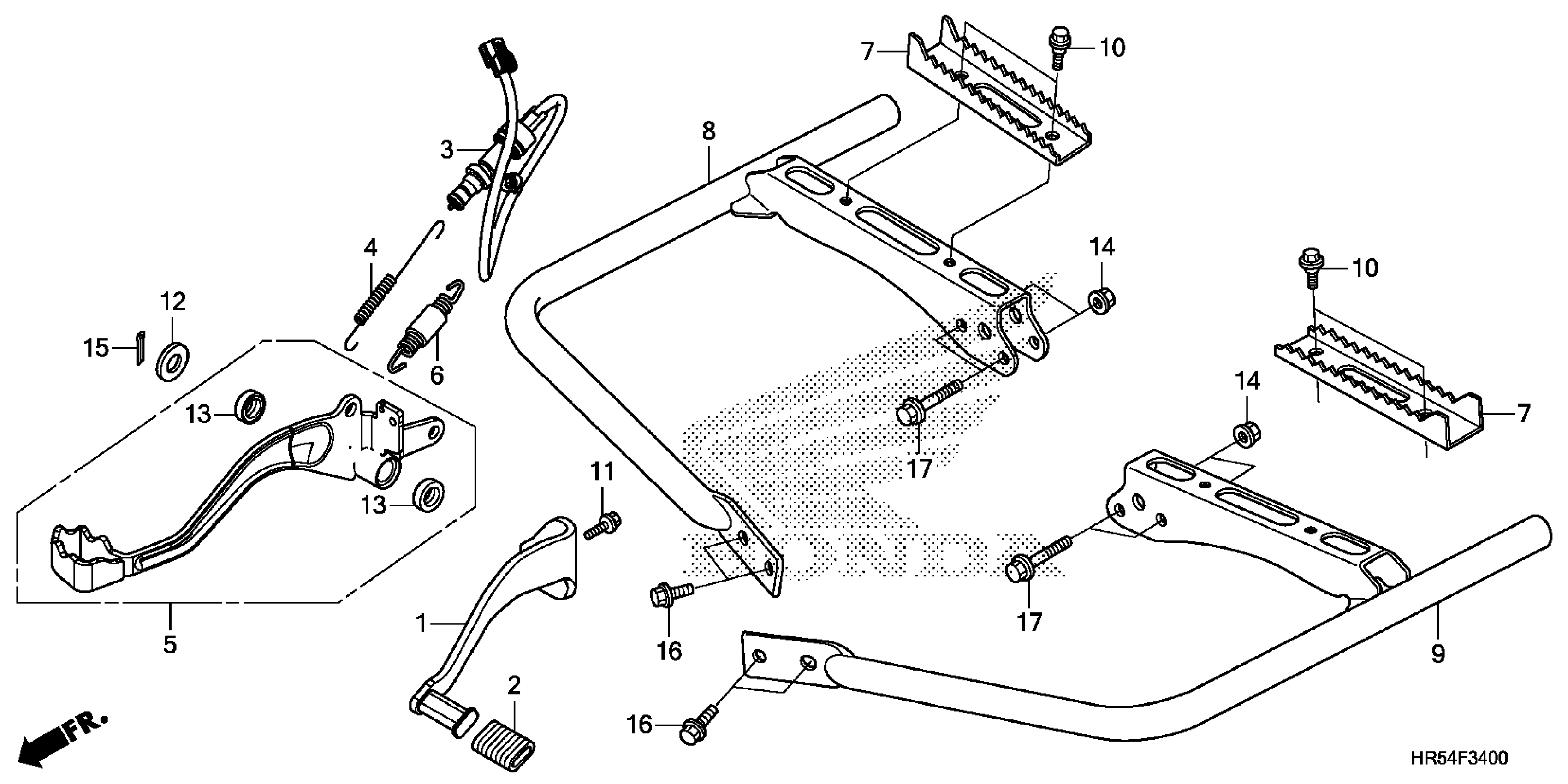

Honda TRX500FM5AC (16) TRX500FM5, USA, VIN# 1HFTE450-G4100001 TO 1HFTE450-G4199999 PEDAL + STEP Diagram

PEDAL, GEARSHIFT (COO) This part replaces 24700-HR3-A20.

24700-HR3-305

$65.19

PEDAL, GEARSHIFT (COO)

24700-HR3-305

$65.19

RUBBER, CHANGE PEDAL

24781-371-000

$4.77

SWITCH ASSY., RR. STOP

35350-HR6-A61

$14.65

SPRING, STOP SWITCH

35357-HP5-600

$2.80

PEDAL ASSY., BRAKE This part replaces 46510-HR6-A60.

46510-HR6-B00

$32.46

SPRING ASSY., RR. BRAKE PEDAL

46513-HR3-A20

$4.45

STEP

50610-HR3-A20

$4.22

BRACKET, R. STEP

50611-HR3-A20

$18.43

BRACKET, L. STEP

50612-HR3-A20

Unavailable

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

BOLT, FLANGE (6X20)

90118-968-000

$3.93

WASHER (17.5MM)

90512-303-000

$1.61

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.44

NUT, FLANGE (8MM)

94050-08000

$0.86

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.64

BOLT, FLANGE (8X45)

95801-08045-00

$1.59
