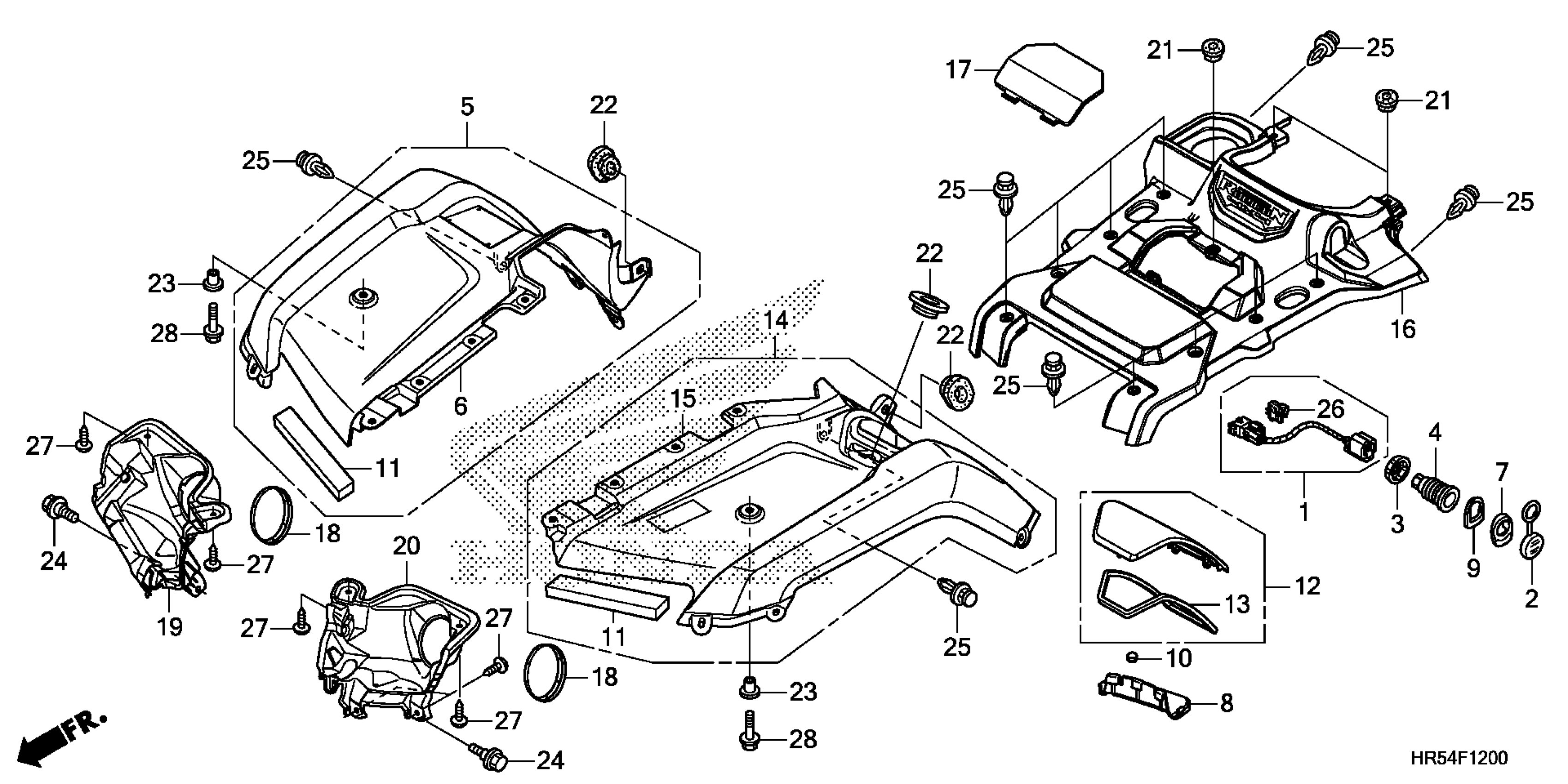

Honda TRX500FM5AC (16) TRX500FM5, USA, VIN# 1HFTE450-G4100001 TO 1HFTE450-G4199999 FRONT FENDER Diagram

#

Description
Price

1

SUB-HARNESS, ACCESSORY

31651-HR4-A20

$4.45

2

CAP

31652-HP0-A01

$2.00

3

NUT

31653-HP0-A01

$1.25

4

SOCKET, ACCESSORY

31655-HP0-A01

$21.53

5

FENDER, R. FR. *G152* (ADVENTURE GREEN) | Adventure green G152;

61100-HR4-A20ZC

$89.98

5

FENDER, R. FR. *R232* (PATRIOT RED) | Patriot red R232;

61100-HR4-A20ZA

Unavailable

7

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.04

8

PLUG, GLOVE BOX *NH1* (BLACK)

61103-HR0-F00ZA

$4.16

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.43

10

PLUG, FR. FENDER

61105-KA8-000

$1.34

11

SEAL, FR. FENDER

61107-HR4-A20

$4.90

12

LID ASSY., GLOVE BOX *G152* (ADVENTURE GREEN) | Adventure green G152;

61110-HR4-A20ZC

$15.92

12

LID ASSY., GLOVE BOX *R232* (PATRIOT RED) | Patriot red R232;

61110-HR4-A20ZA

$15.92

13

SEAL, GLOVE BOX

61122-HR4-A20

$3.80

14

FENDER, L. FR. *G152* (ADVENTURE GREEN) | Adventure green G152;

61200-HR4-A20ZC

$79.47

14

FENDER, L. FR. *R232* (PATRIOT RED) | Patriot red R232;

61200-HR4-A20ZA

$79.34

16

COVER SET, FR. CENTER (TYPE1) (WL)

61305-HR5-A20ZB

$95.01

17

LID, RADIATOR CAP *NH1* (BLACK)

61310-HR3-A20ZA

$7.57

18

CAP, FR. COVER *NH1* (BLACK)

64365-040-000ZH

$4.13

19

COVER, R. HEADLIGHT

66301-HR3-A20

$3.04

20

COVER, L. HEADLIGHT

66302-HR3-A20

$3.04

21

GROMMET, SIDE COVER

83501-MG7-000

$2.41

22

GROMMET, SIDE COVER

83551-MA6-000

$3.19

23

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.42

24

BOLT, FLANGE (6MM)

90111-162-000

$2.66

25

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

26

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

27

SCREW, TAPPING (5X12)

93903-25220

$0.90

28

BOLT, FLANGE (6X16)

95701-06016-08

$1.34
