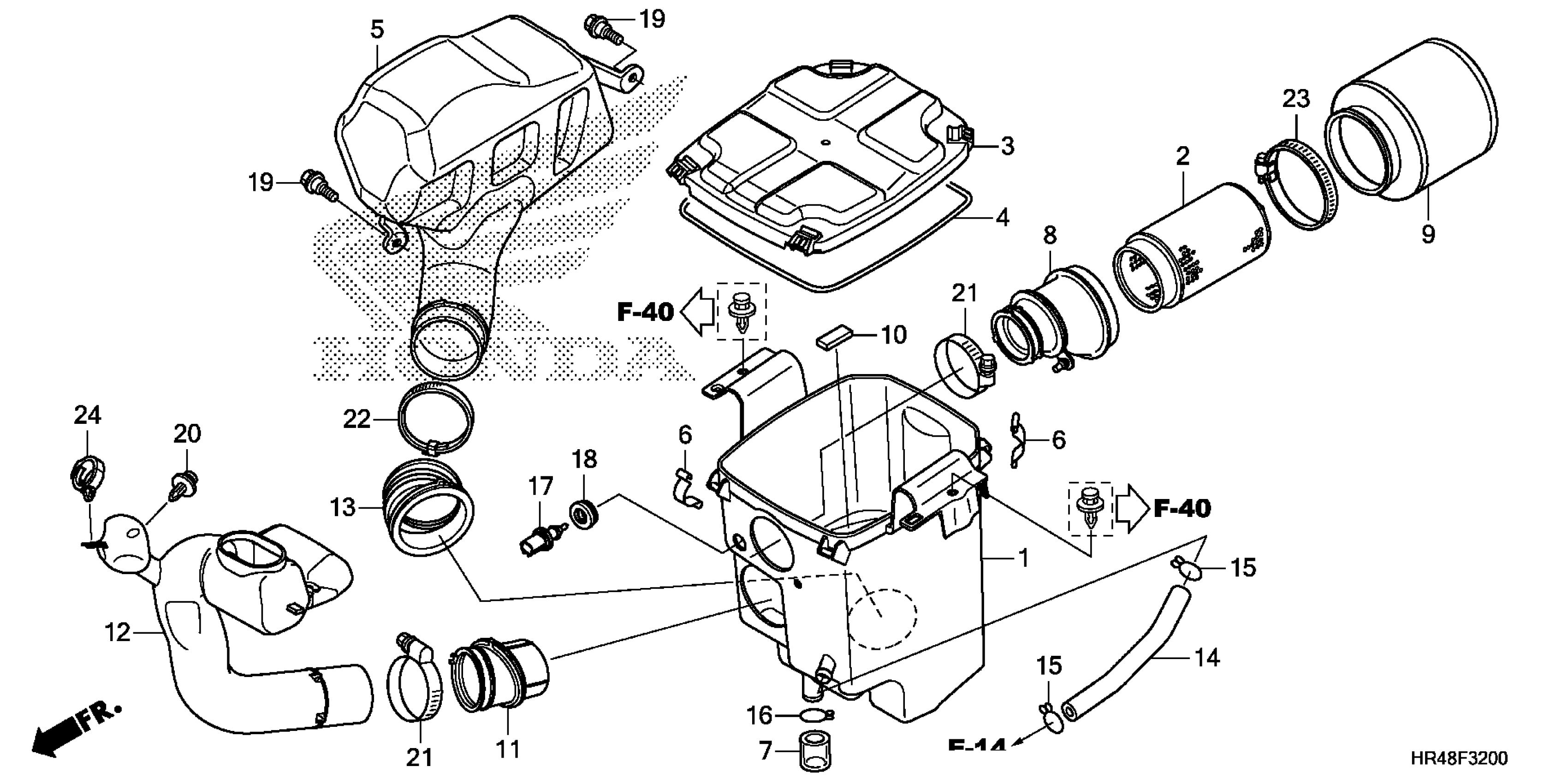

Honda TRX500FM2AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE503-K4500001 AIR CLEANER Diagram

HOUSING, AIR CLEANER

17210-HR4-A20

$15.59

BODY, AIR CLEANER

17211-HP0-A00

$21.62

LID, AIR CLEANER

17217-HR3-A20

$4.39

SEAL, AIR CLEANER COVER

17219-HR3-A20

$4.52

CHAMBER, AIR CLEANER SUB

17220-HR4-A20

$27.94

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.68

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.56

TUBE, AIR CLEANER CONNECTING

17253-HR4-A20

$9.21

ELEMENT, AIR CLEANER

17254-HN1-000

$21.08

COVER, DUST

17256-HR3-A20

$0.46

TUBE, SNORKEL

17258-HR3-A20

$4.12

DUCT, SNORKEL

17259-HR3-A20

$41.04

TUBE, SUB-CHAMBER CONNECTING

17262-HN7-000

$24.21

TUBE, BREATHER

17366-HR3-A20

$13.34

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$32.48

GROMMET, TA SENSOR

37881-P2A-000

$4.28

BOLT, FLANGE (6MM)

90111-162-000

$2.66

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.35

BAND, AIR CONNECTING TUBE (78)

90678-HN2-830

$3.89

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.28

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

Unavailable
