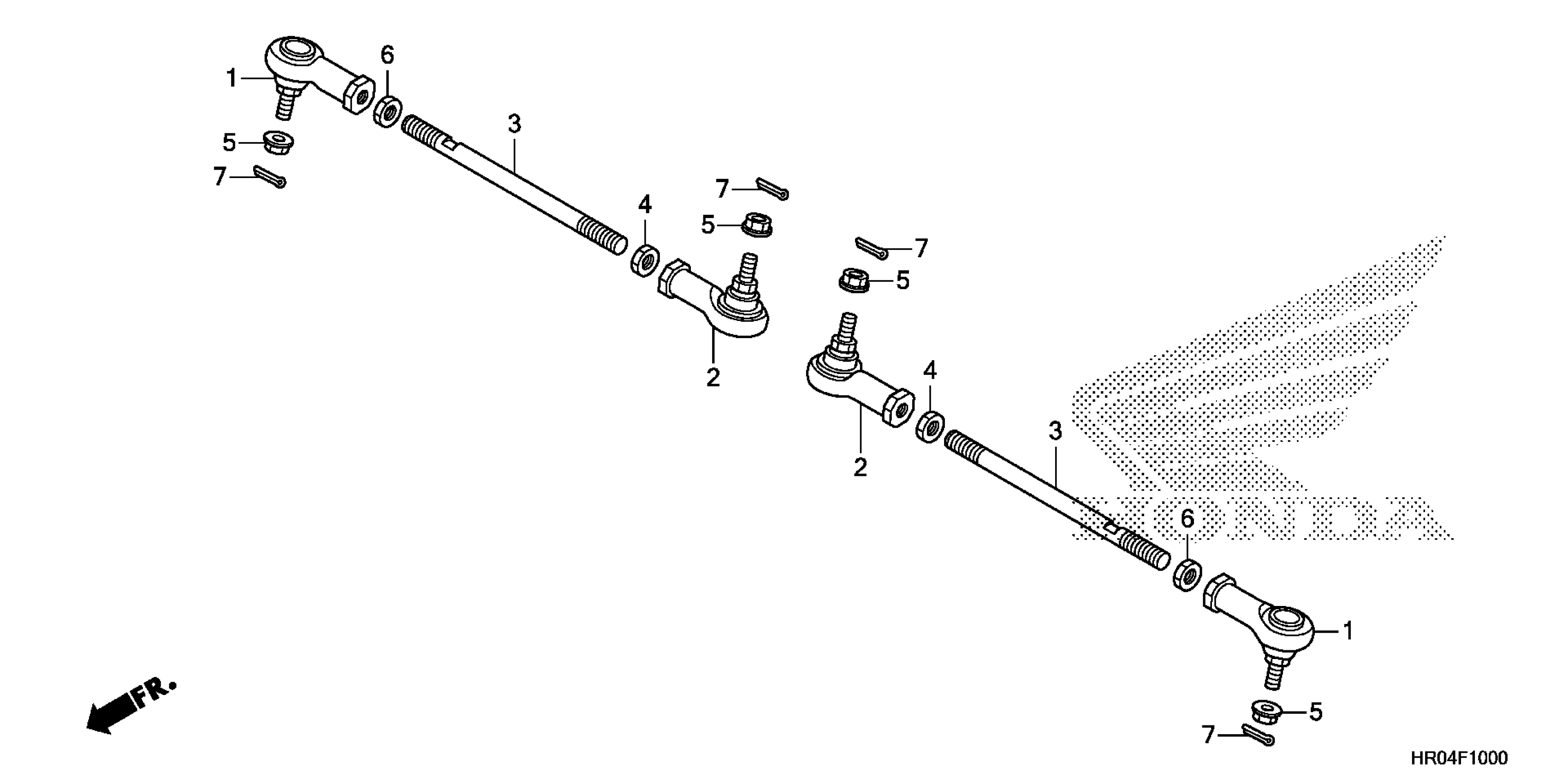

Honda TRX500FM2AC (13) FOREMAN 4X4, USA, VIN# 1HFTE381-D4100001 TIE ROD Diagram

END, R. TIE ROD (RIGHT HAND THREAD) (OUTSIDE)

53157-HP5-003

$11.90

END, L. TIE ROD (LEFT HAND THREAD) (INSIDE)

53158-HP5-003

$11.90

TIE ROD

53521-HN2-000

$43.26

NUT, TIE ROD LOCK (LEFT HAND THREAD) (INSIDE)

53526-679-000

$3.10

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

NUT, HEX. (12MM) (OUTSIDE)

94031-12280

$1.49

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49
